Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -3.81/3.50 > LZ3VH-3.5/LZ3VH-3.81

Assembly

LC1-3.5/LC1-3.81

LC6-3.5/LC6-3.81

LC2A-3.5/LC2A-3.81

LC2B-3.5/LC2B-3.81

Description

Property

Scene

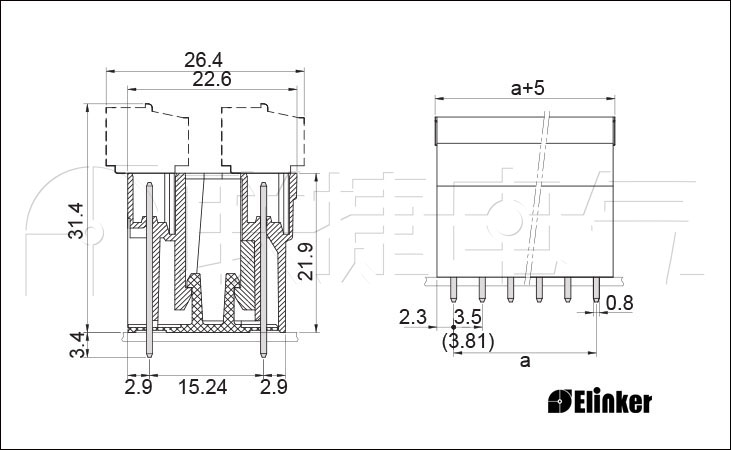

Drawings

Packing

优势

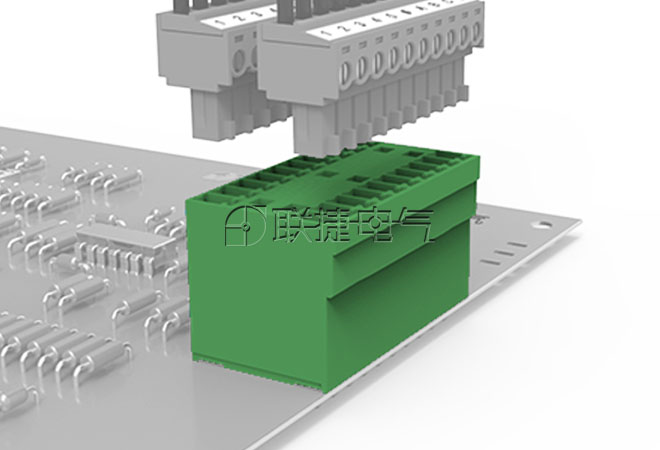

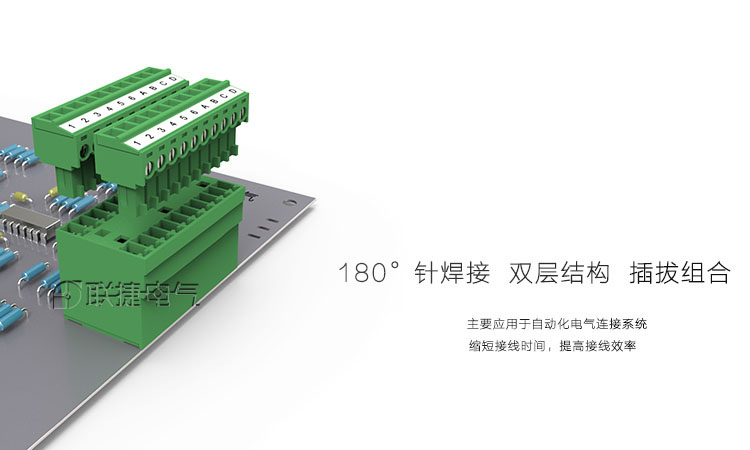

双层插座，满足不同电气设备连接需求；

可定制，2-24P任意选择；

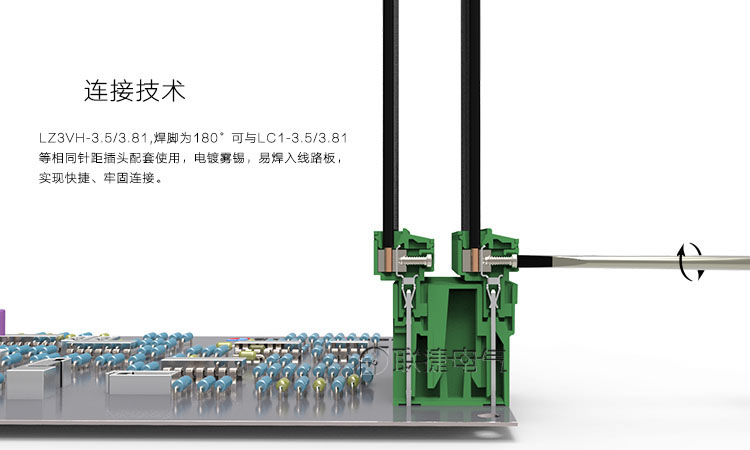

焊针呈180°，电镀雾锡，可焊接于线路板；

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 【IEC】160V【UL】300V

[Rated current(A):] 【IEC】8A【UL】8A

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal
