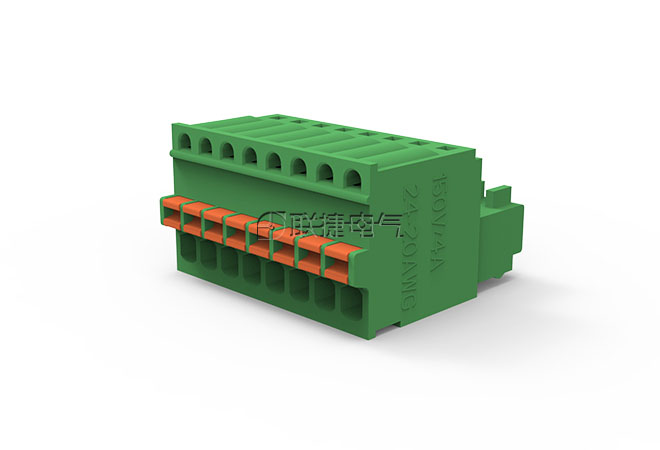

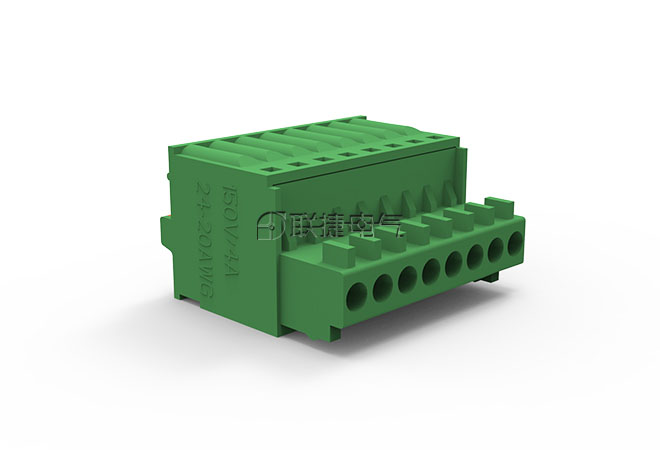

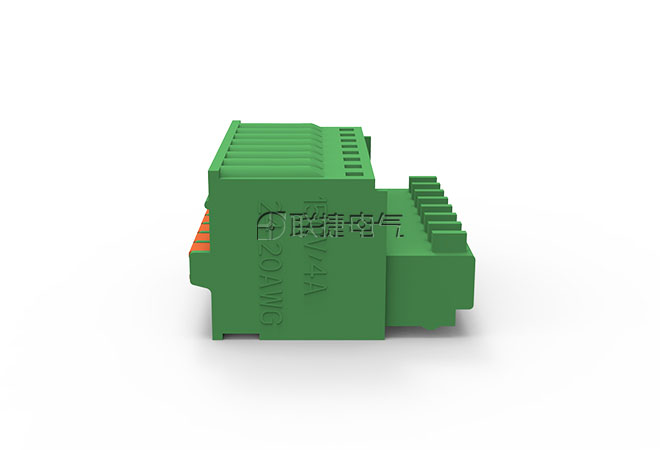

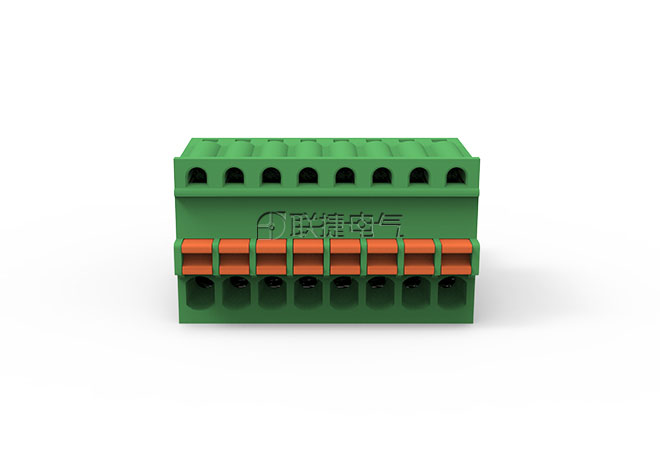

LC6-2.5

优势



  无按键规格，结构高度低；

  可以连接截面积为0.5mm²的刚性/柔性导线；

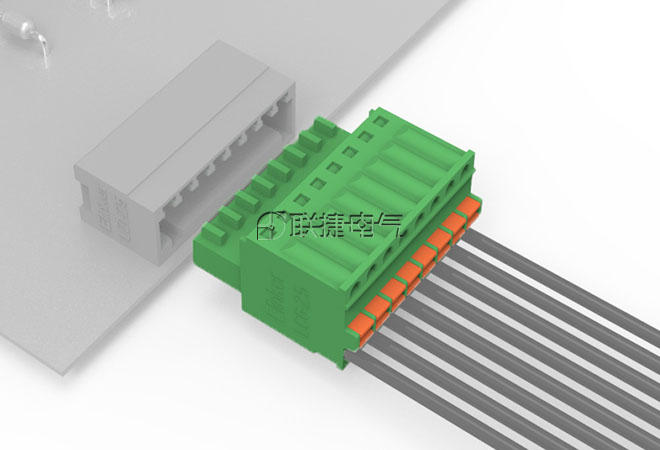

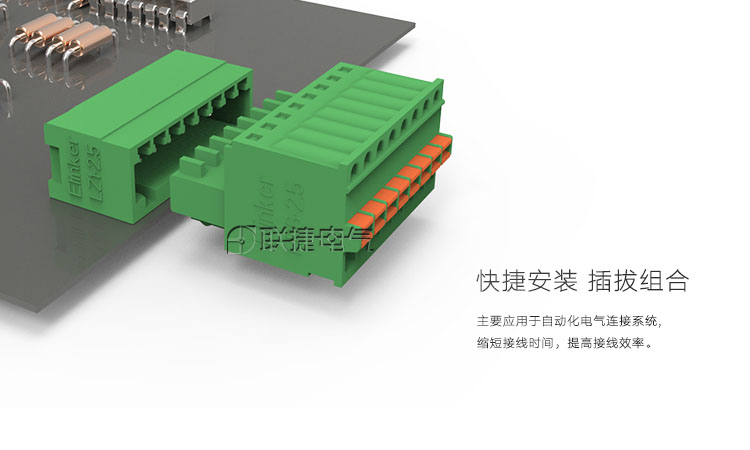

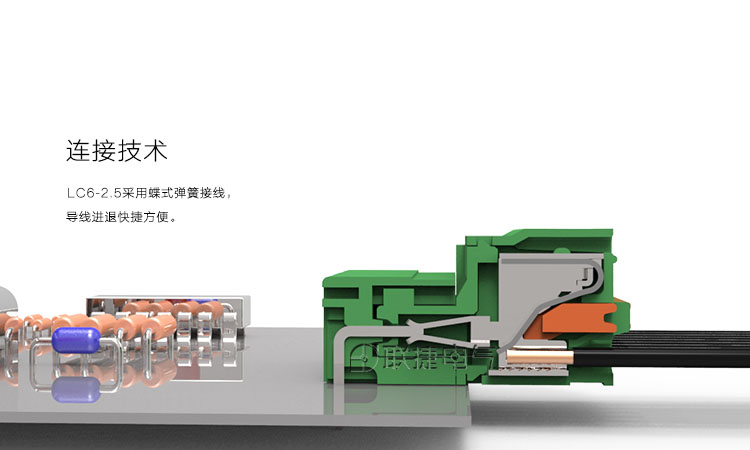

  采用弹簧接线技术，可替代LC1系列与LZ1系列插座配合使用。





Product Attribute
[Rated voltage(V)]	160V

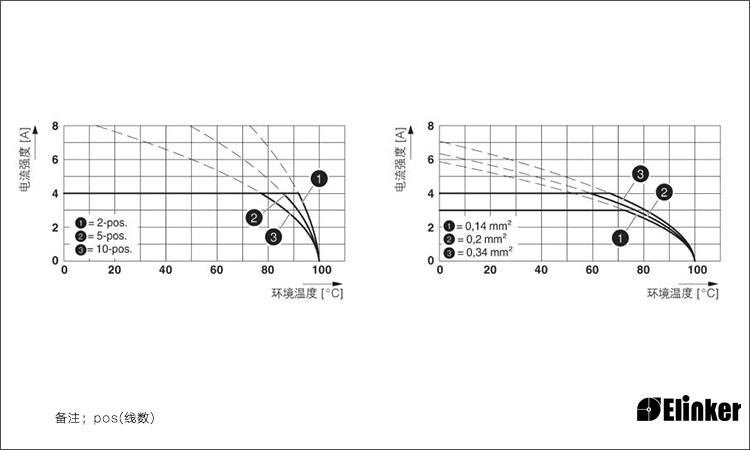

[Rated current(A):]	4A
[Rated current(mm²):]	0.5
[Wire Size(AWG):]	26-12
[Single/multi-core diameter(mm²):]	0.5
[Strip length(mm):]	10
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	FK-MC 0.5/...-ST-2.5 ESC250V 15EDGKD-2.5
