Location Home > PCB Pluggable terminal > Pluggable terminal > Pole -3.81/3.50 > LC2A-3.5/LC2A-3.81

Assembly

LZ3RH-3.5/LZ3RH-3.81

LZ1R-3.5/LZ1R-3.81

LZ1V-3.5/LZ1V-3.81

LZ3VH-3.5/LZ3VH-3.81

Description

Property

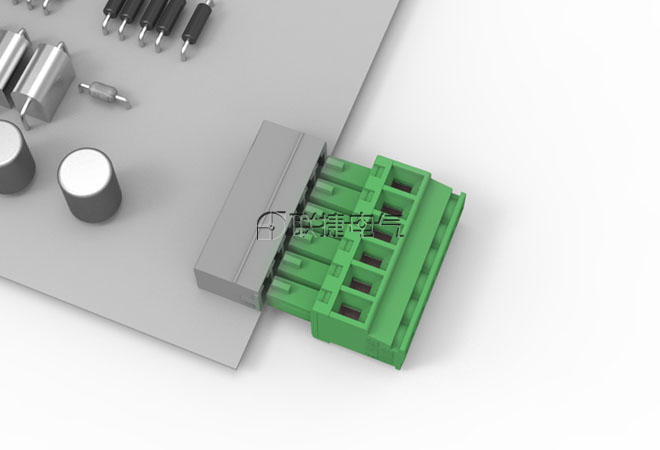

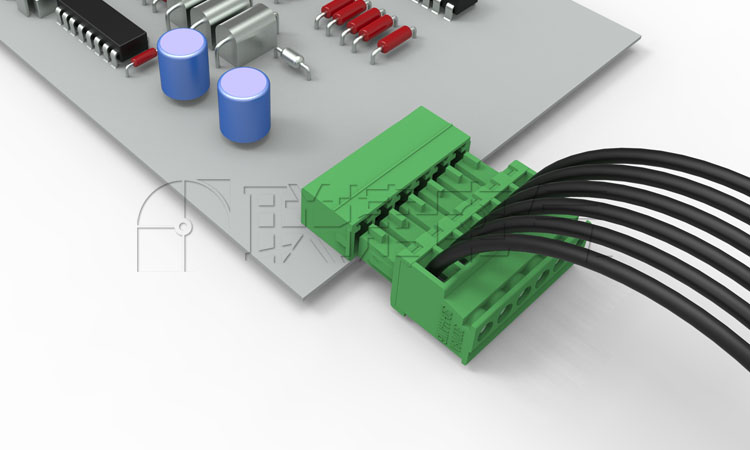

Scene

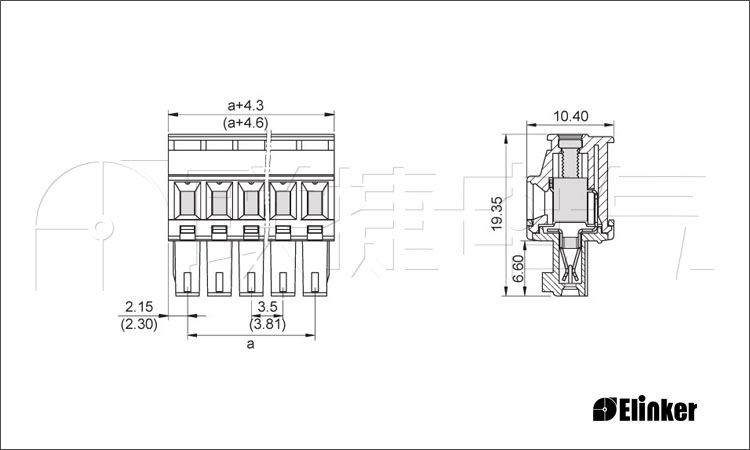

Drawings

Packing

优势

  插头插座紧密结合，节省空间；

  平行进线，法兰固定，构成抗震连接；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。

Product Attribute

[Rated voltage(V)] 160

[Rated current(A):] 8

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 28-16

[Single/multi-core diameter(mm²):] 0.08-1.5

[Maximum locking torque(Nm):] 0.22-0.25

[Screw:] M2

[Strip length(mm):] 7

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/VO

[Poles(P):] 2-24

[The same model] MCVR1.5/...-ST-3.5 BL 3.50/90 EC350R 15EDGKA-3.5 TS3.5-A PTB350B-18 MC520-350MCVR 1.5/...-ST-3.81 BCZ 3.81/90 EC381R 15EDGKA-3.81 TS3.81-A PTB350B-03 MC520-381

Product Attribute
[Rated voltage(V)]	160
[Rated current(A):]	8
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-1.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
[The same model]	MCVR1.5/...-ST-3.5 BL 3.50/90 EC350R 15EDGKA-3.5 TS3.5-A PTB350B-18 MC520-350MCVR 1.5/...-ST-3.81 BCZ 3.81/90 EC381R 15EDGKA-3.81 TS3.81-A PTB350B-03 MC520-381

Product Attribute
[Rated voltage(V)]	160
[Rated current(A):]	8
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-1.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
[The same model]	MCVR1.5/...-ST-3.5 BL 3.50/90 EC350R 15EDGKA-3.5 TS3.5-A PTB350B-18 MC520-350MCVR 1.5/...-ST-3.81 BCZ 3.81/90 EC381R 15EDGKA-3.81 TS3.81-A PTB350B-03 MC520-381
