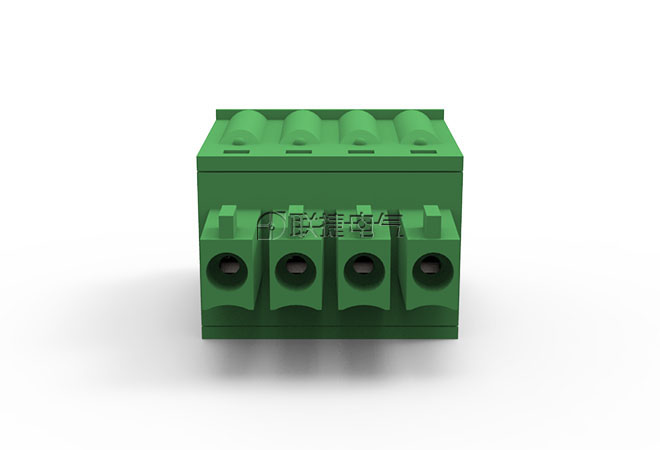

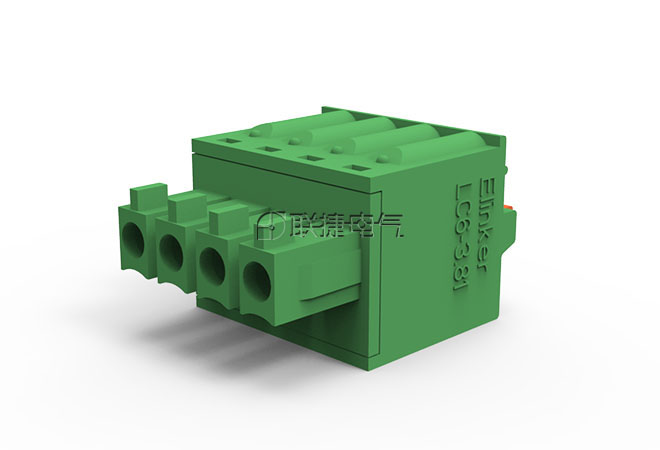

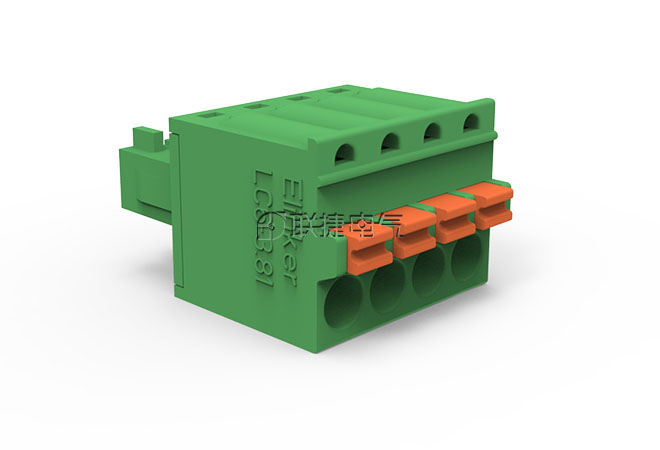

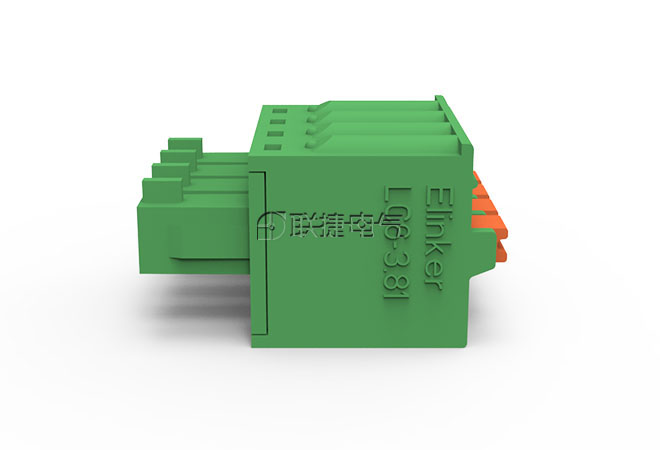

LC6-3.5/LC6-3.81



优势

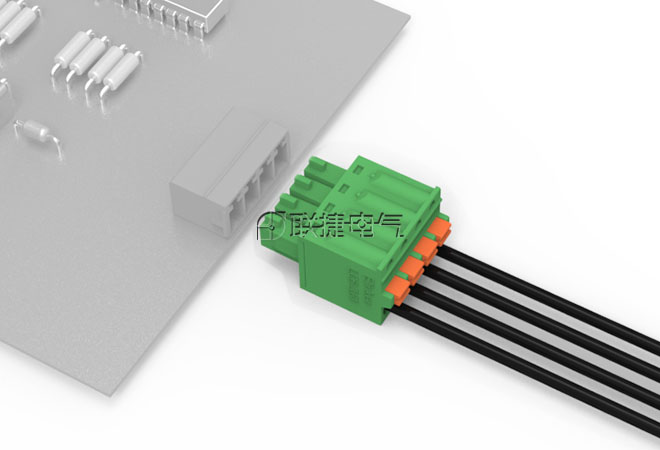

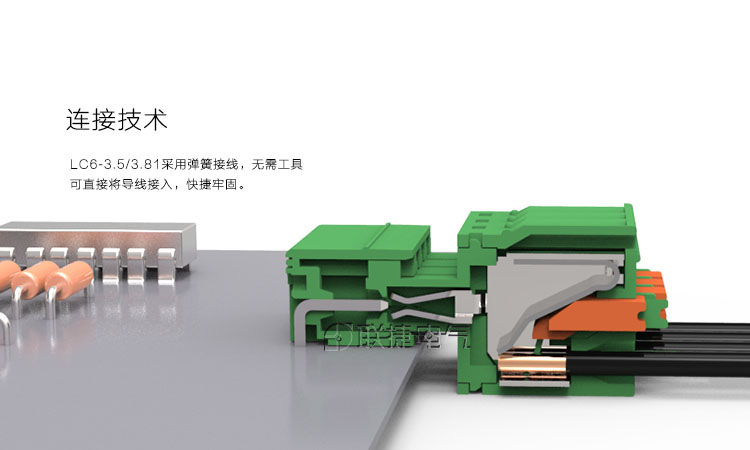

  弹簧插拔式端子，进线方便快捷；

  平行进线，多个测试孔，安全连接；

  可以连接截面积为1.5mm²的柔性导线；

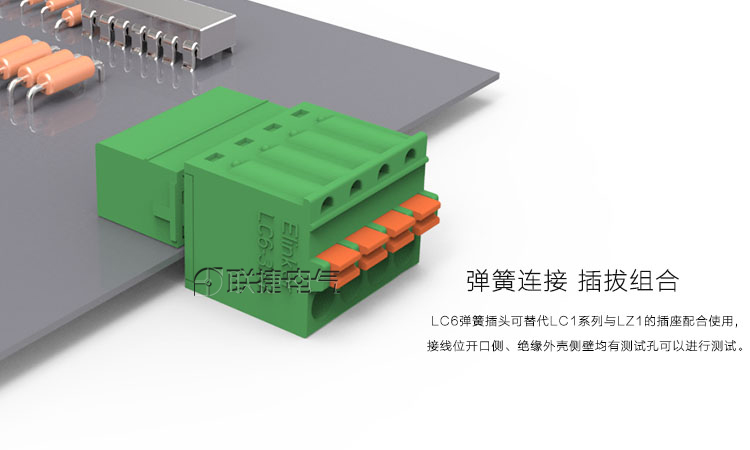

  可与LZ1系列插座进行多样式连接。



Product Attribute
[Rated current(A)]	8A
[Rated current(A):]	160V
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	26-14
[Single/multi-core diameter(mm²):]	0.14-1.5
[Strip length(mm):]	9
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	FK-MCP 1.5/...-ST-3.5 BCF 3.5/180 ESC350V 15EDGKD-3.5 HW-3.5 FK-MCP 1.5/...-ST-3.81 BCF 3.81/180 ESC381V 15EDGKD-3.81 HW-3.81
