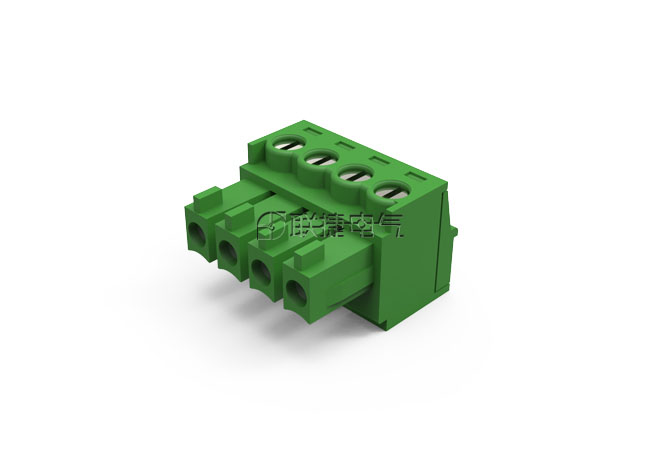

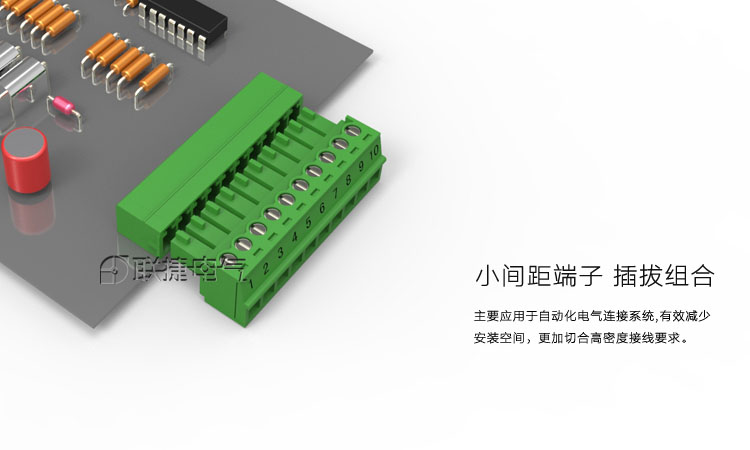

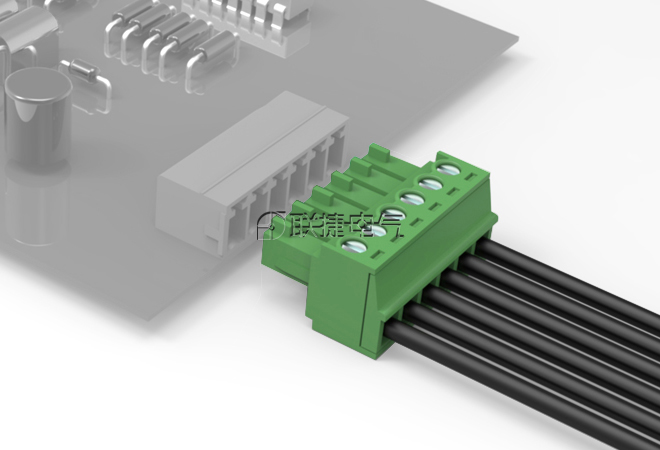

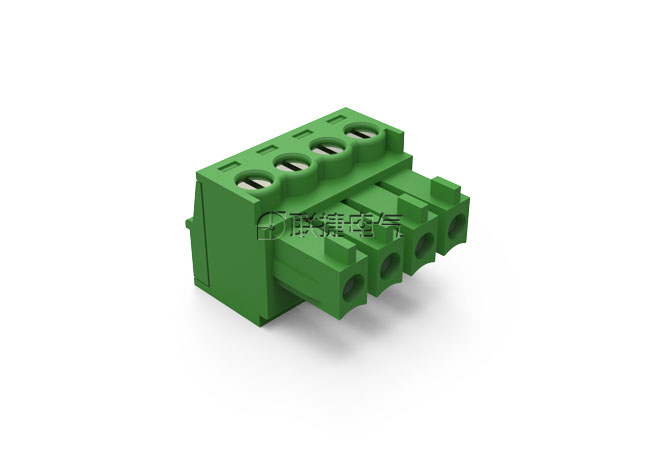

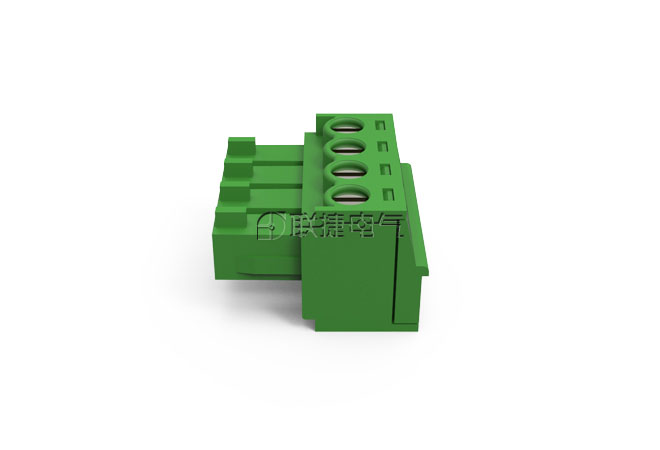

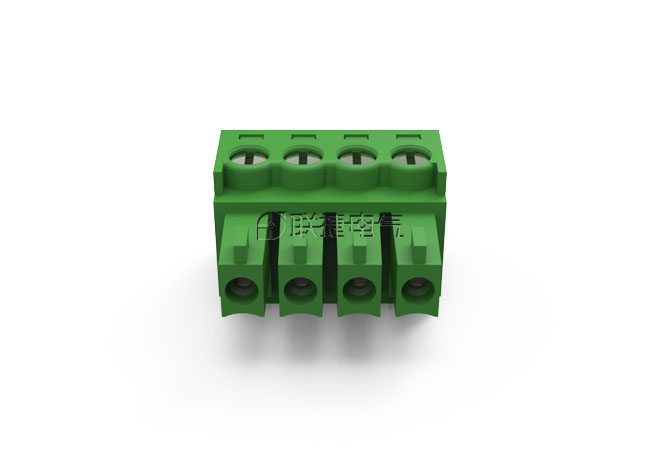

LC1-3.5/LC1-3.81



       优势



  间距小，节省空间；

  结构高度低；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  插头插座防错插防错位保护。





Product Attribute
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	160V
[Rated current(A):]	8
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-0.5
[Maximum locking torque(Nm):]	0.4
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MC 1.5 BL 3.50/180 MC-RA3.5H EC350V 15EDGK-3.5 TJ-3.5 PTB350B-05 MC420-350 SH220-3.5 MC 1.5 BCZ 3.81/180 EC381V 15EDGK-3.81 TJ3.81 PTB350B-06 MC420-381
[Material]	PA66

Product Attribute
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	160V
[Rated current(A):]	8
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-0.5
[Maximum locking torque(Nm):]	0.4
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MC 1.5 BL 3.50/180 MC-RA3.5H EC350V 15EDGK-3.5 TJ-3.5 PTB350B-05 MC420-350 SH220-3.5 MC 1.5 BCZ 3.81/180 EC381V 15EDGK-3.81 TJ3.81 PTB350B-06 MC420-381
[Material]	PA66
