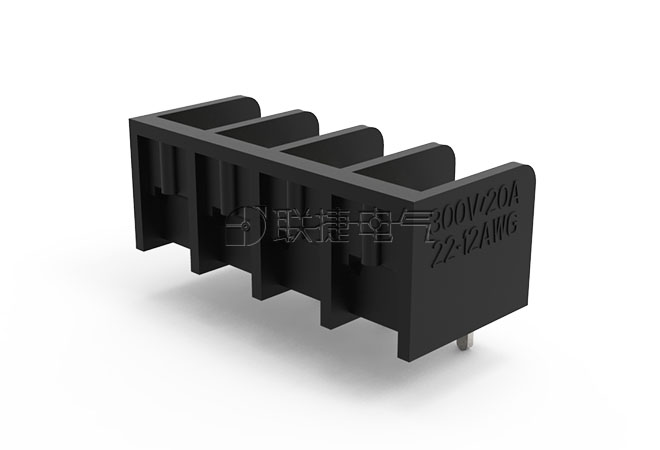

Location Home > PCB Barrier Terminal > Pole 8.25 > LW3A-8.25

Description

Property

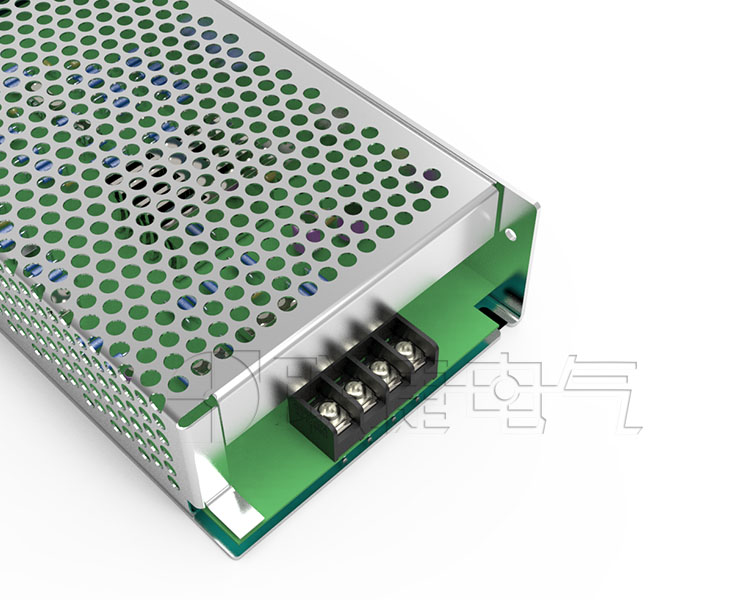

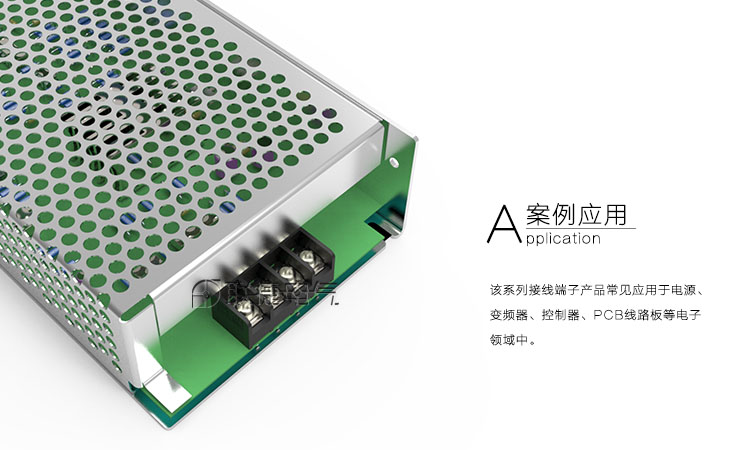

Scene

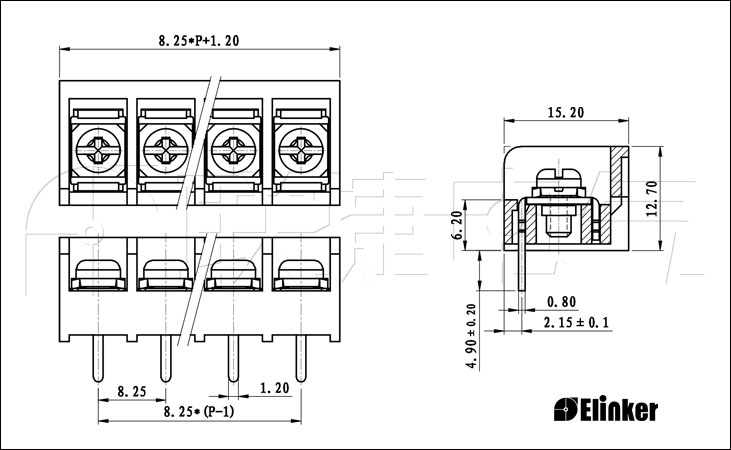

Drawings

Packing

Product Attribute

[Temperature(℃):] -40~+105

[Insulation resistance] 500MΩ/DC500V

[Maximum locking torque] 0.5N.m 4.4Lb.in

[Rated voltage(V)] 300V

[Rated current(A):] 20A

[Wire Size(AWG):] 22-12

[Screw:] M3

[Resistant voltage(kv):] AC2000v/Min

[Insulation Resistance:] PA66 UL94V-0

[Terminal Block:] PCB Barrier Terminal

Product Attribute
[Temperature(℃):]	-40~+105
[Insulation resistance]	500MΩ/DC500V
[Maximum locking torque]	0.5N.m 4.4Lb.in
[Rated voltage(V)]	300V
[Rated current(A):]	20A
[Wire Size(AWG):]	22-12
[Screw:]	M3
[Resistant voltage(kv):]	AC2000v/Min
[Insulation Resistance:]	PA66 UL94V-0
[Terminal Block:]	PCB Barrier Terminal

Product Attribute
[Temperature(℃):]	-40~+105
[Insulation resistance]	500MΩ/DC500V
[Maximum locking torque]	0.5N.m 4.4Lb.in
[Rated voltage(V)]	300V
[Rated current(A):]	20A
[Wire Size(AWG):]	22-12
[Screw:]	M3
[Resistant voltage(kv):]	AC2000v/Min
[Insulation Resistance:]	PA66 UL94V-0
[Terminal Block:]	PCB Barrier Terminal
