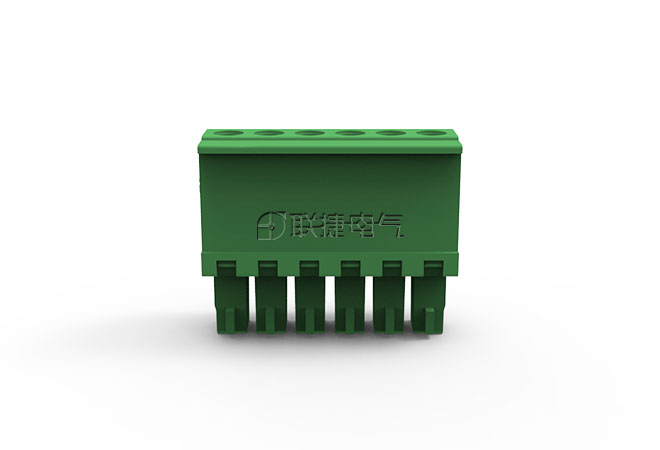

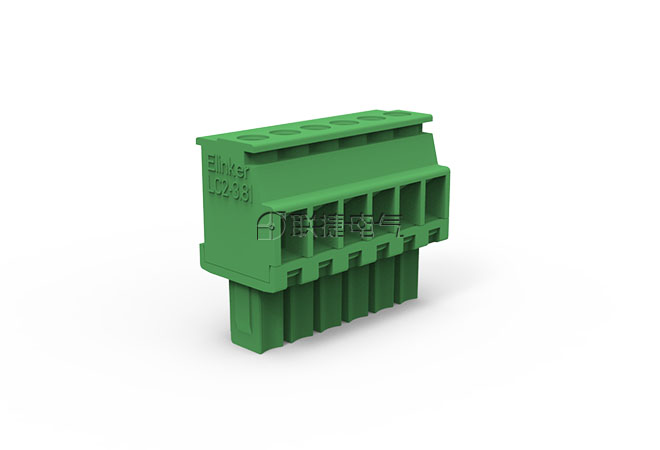

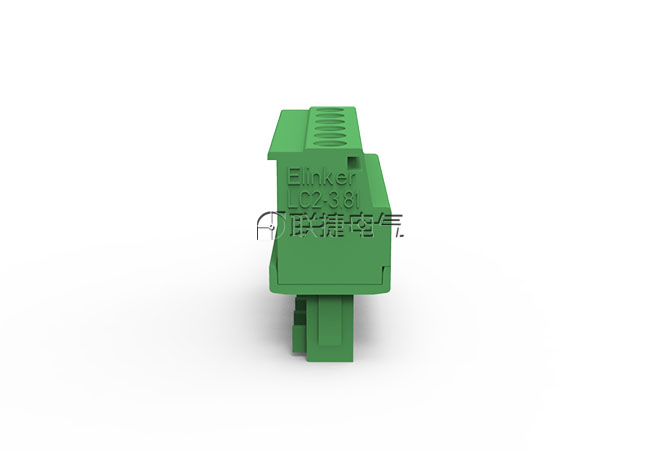

LC2B-3.5/LC2B-3.81





优势

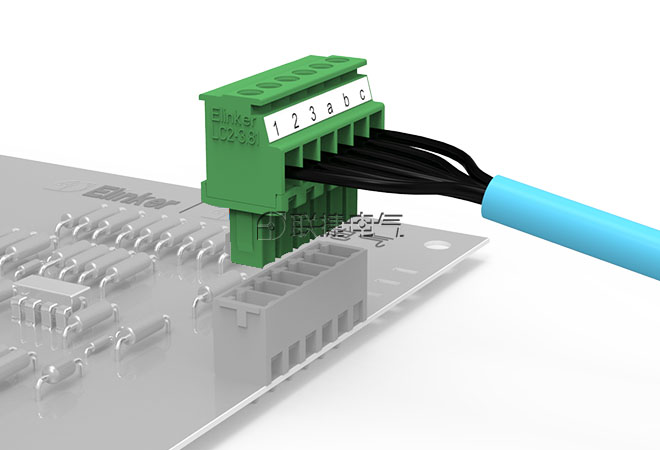

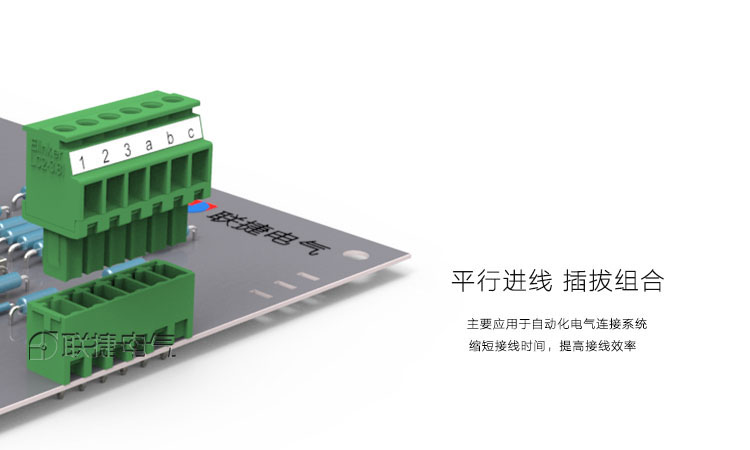

  插入方向垂直于导线，插头插座紧密结合，节省空间；

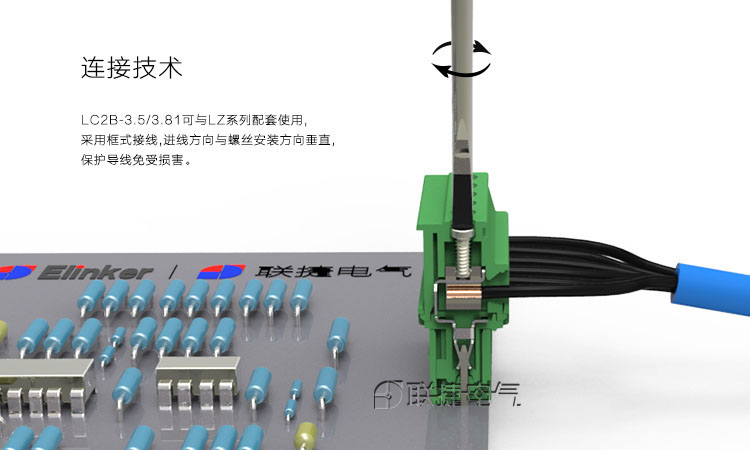

  平行进线，与螺丝拧紧方向垂直，保护导线；

  可以连接截面积为1.5mm²的柔性导线；

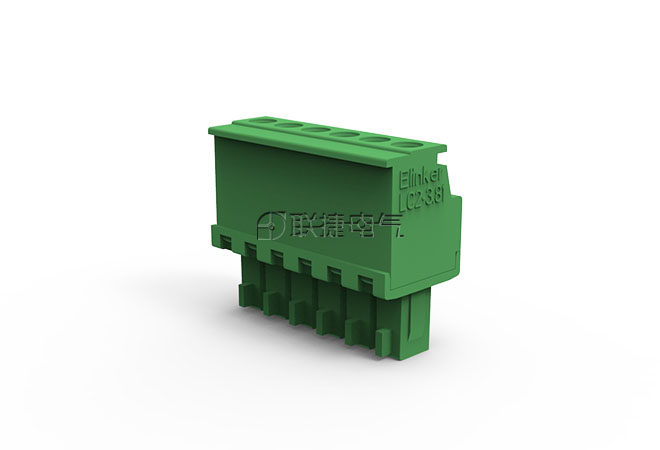

  插头带凹槽，可与插座形成稳固连接。





Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V

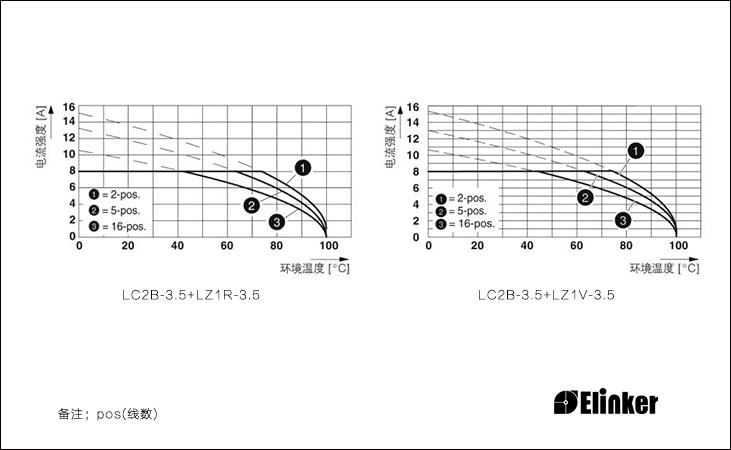

[Rated current(A):]	【IEC】8A【UL】8A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	【IEC】28-16【UL】30-14
[Single/multi-core diameter(mm²):]	0.08-1.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5

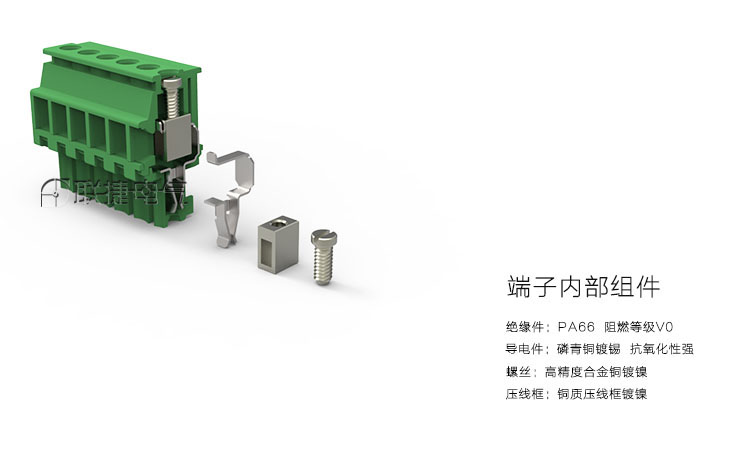

[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MCVW 1.5/...-ST-3.5 MCVW 2.5/...-ST-3.81 BCZ 3.81/270 EC381RL 15EDGKB-3.81 TS3.81-B PTB350B-04 MC560-381
