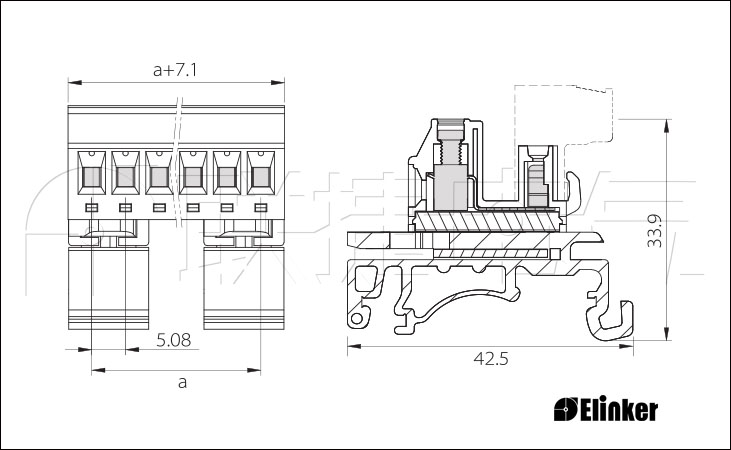

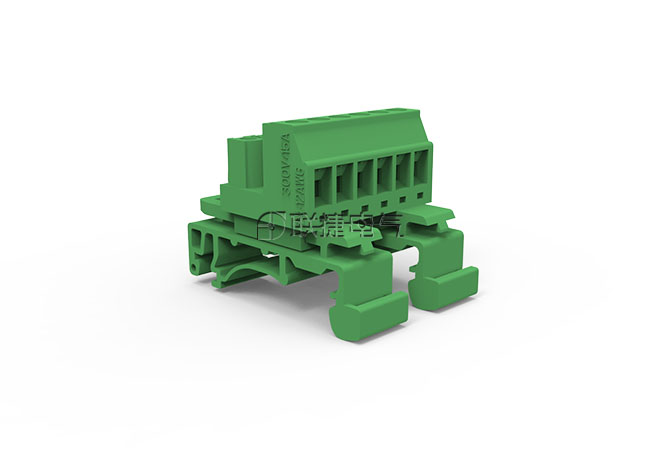

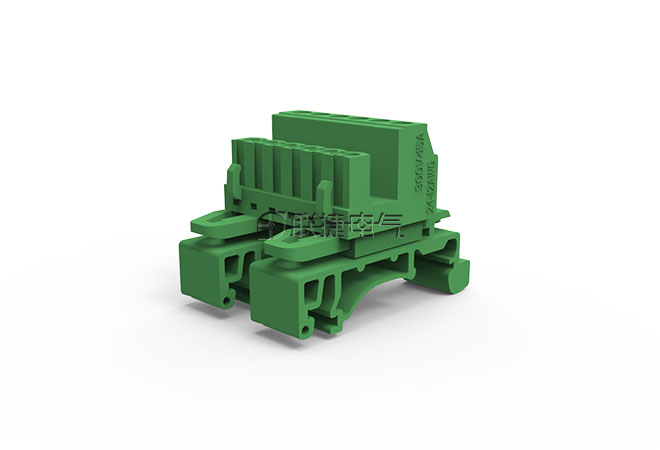

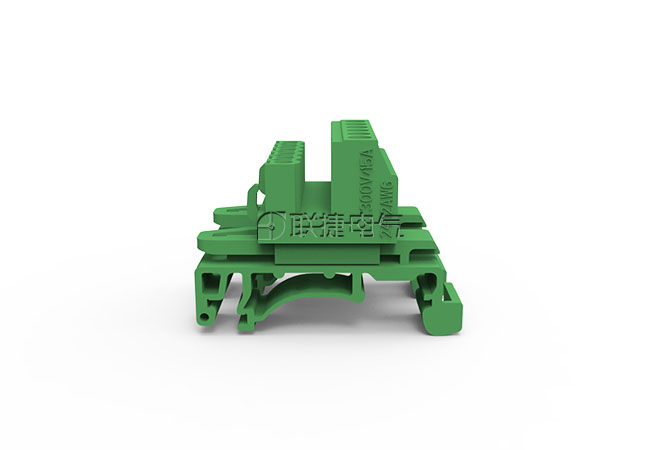

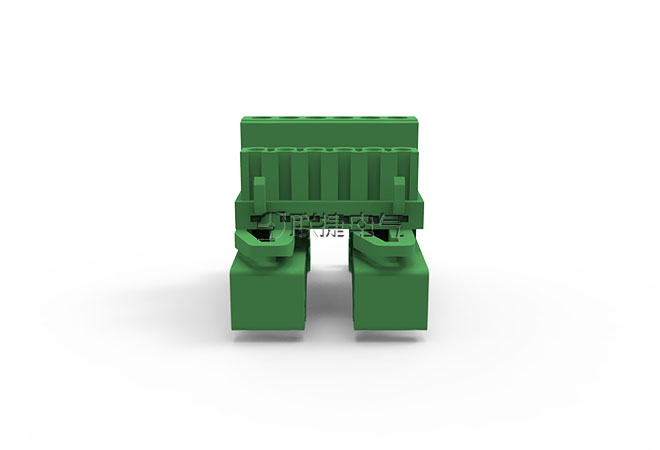

LC17U-5.0/LC17U-5.08



优势

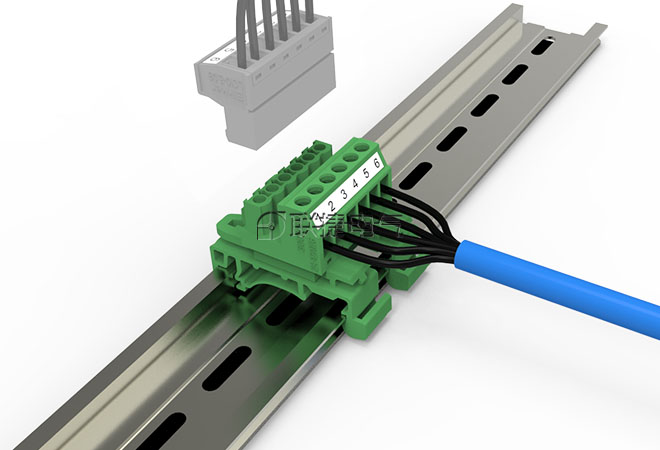

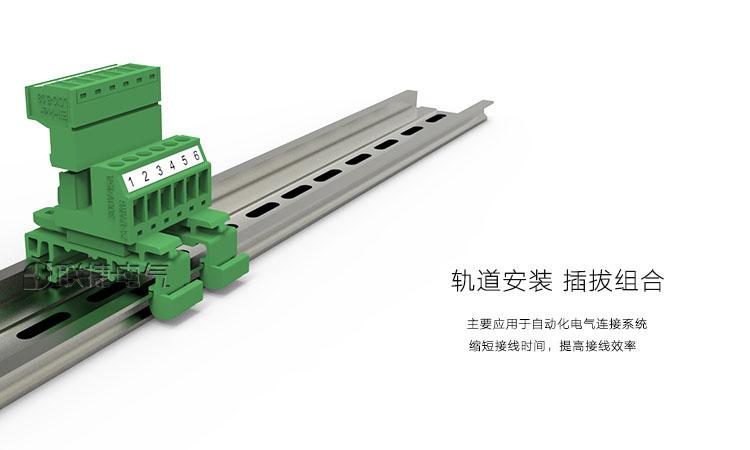

  LC17U带通用安装脚，可安装于U型导轨；

  可与LC10插座配合使用；

  可以连接截面积为2.5mm²的柔性导线；

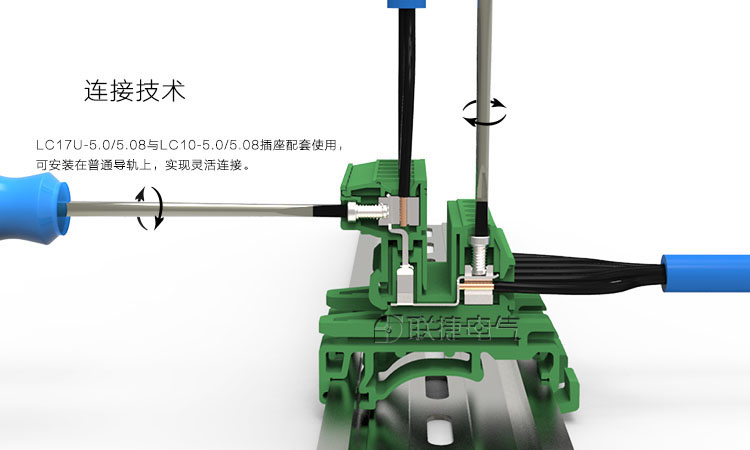

  框式接线，导线进线方向与螺丝拧转方向垂直，保护导线免受损坏。





Product Attribute
[Rated voltage(V)]	【IEC】250V 【UL】300V

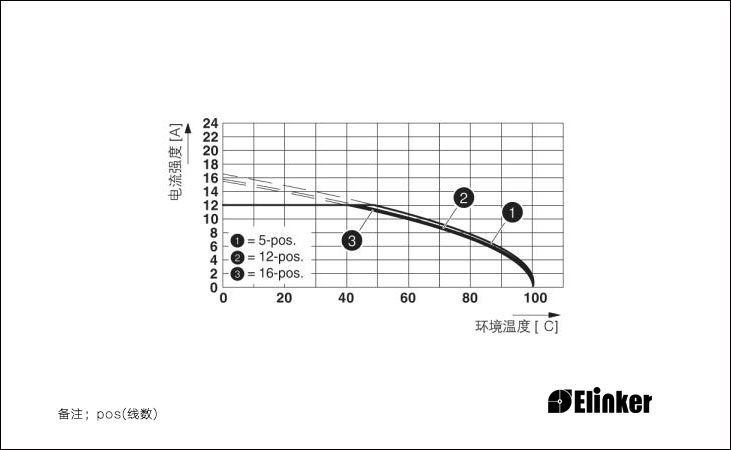

[Rated current(A):]	【IEC】12A 【UL】20A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12 【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4

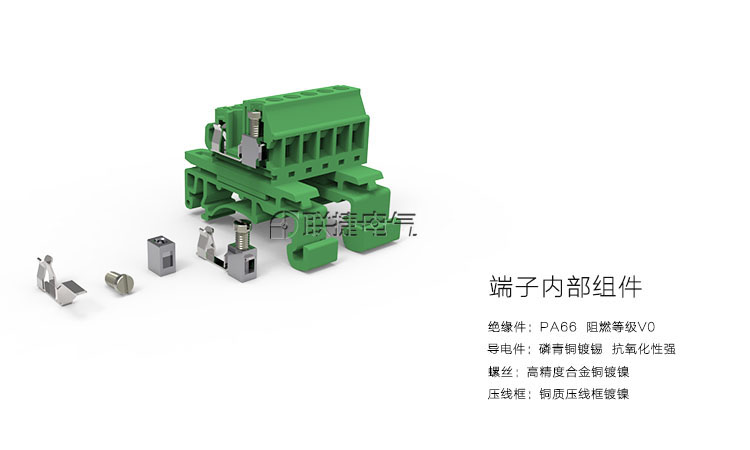

[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	2EDG-UVK-5.08 V9 5.08- Dinrail holder B type
