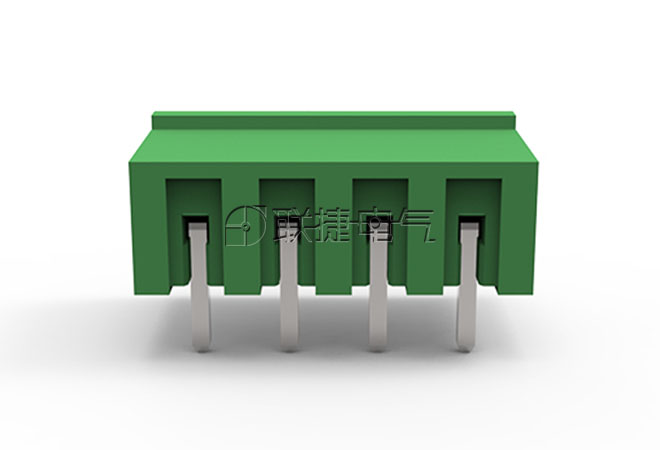

Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -5.08/5.00 > LZ1R-5.0/LZ1R-5.08

Assembly

LC1-5.0/LC1-5.08

LC2A-5.0/LC2A-5.08

LZ5X-5.0/LZ5X-5.08

LC2B-5.0/LC2B-5.08

Description

Property

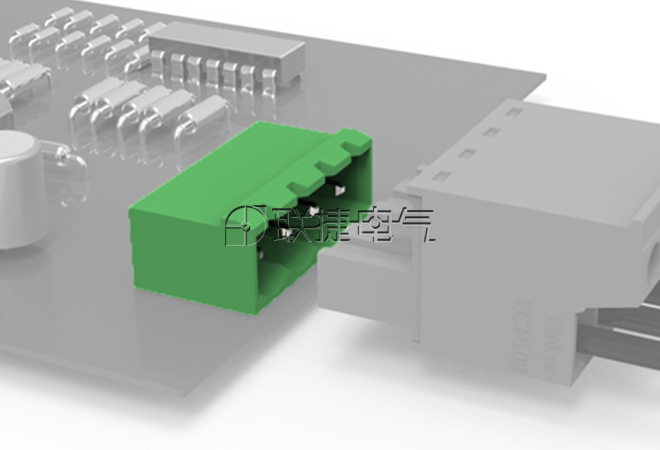

Scene

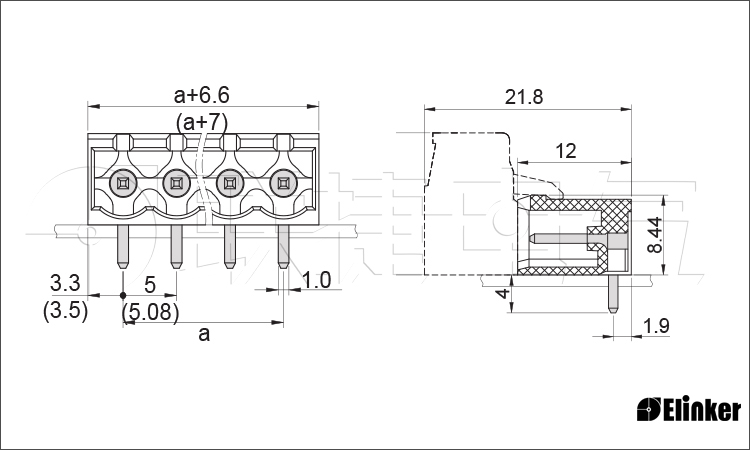

Drawings

Packing

优势

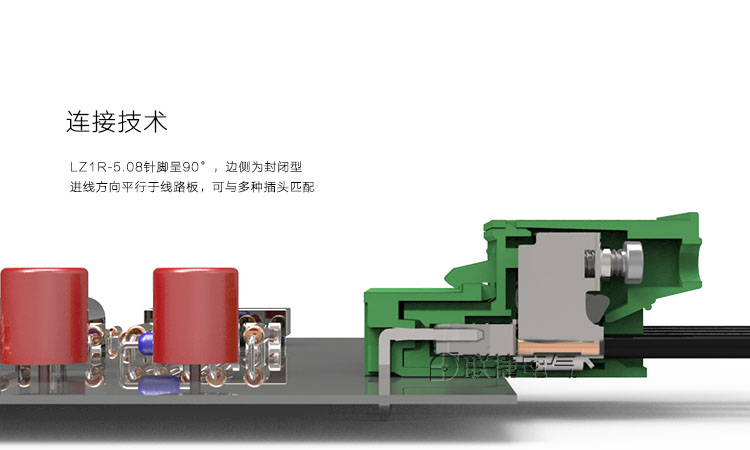

插座针距5.0/5.08，水平接入

边侧封闭，方便安装；

接线容量大，可以连接截面积为2.5mm²的柔性导线；

插拔式接线，快捷可靠。

Product Attribute

[Rated voltage(V)] 320V

[Rated current(A):] 17.5A

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	320V
[Rated current(A):]	17.5A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	320V
[Rated current(A):]	17.5A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
