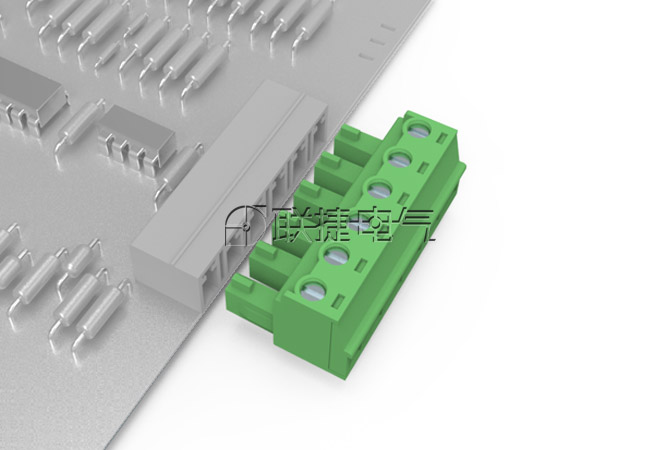

Scene

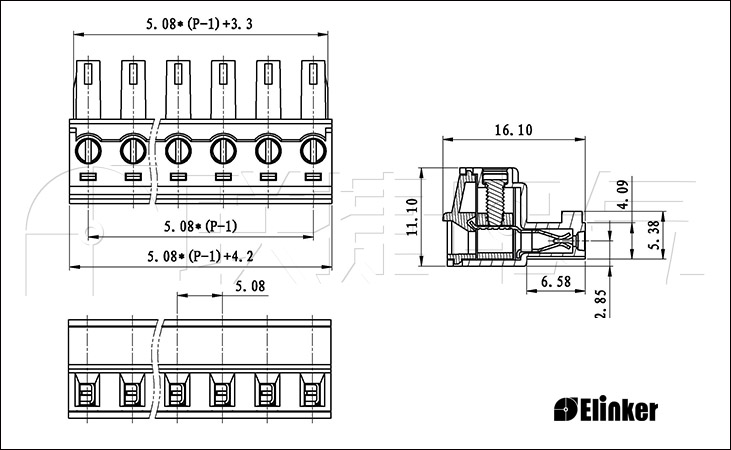

Drawings

Packing

优势

  插头插座紧密结合，节省空间；

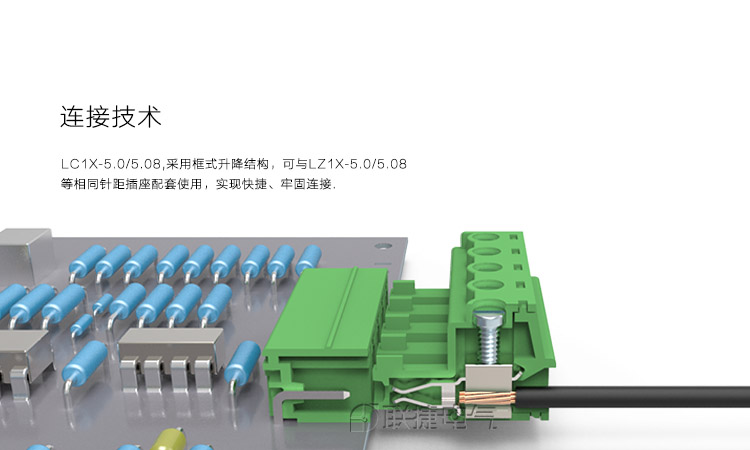

  平行进线，螺丝拧转方向与导线垂直，保护导线免受损坏；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。

Product Attribute

[Temperature(℃):] -40℃~+105℃

[Insulation resistance] 5MΩ/DC500V

[Rated current(A)] 8A

[Rated voltage(V)] 300V

[Rated current(A):] 8A

[Rated current(mm²):] 2.5mm²

[Wire Size(AWG):] 28-16

[Resistant voltage(kv):] AC2500v/Min

[Insulation Resistance:] PA66 UL94V-0

[Poles(P):] 2-24P

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] MC 1,5/...-STF-5,08 EC508VM 15EDGKM-5.08 VR 5.08-Contact on UP side(W/F) MC421-508

Product Attribute
[Temperature(℃):]	-40℃~+105℃
[Insulation resistance]	5MΩ/DC500V
[Rated current(A)]	8A
[Rated voltage(V)]	300V
[Rated current(A):]	8A
[Rated current(mm²):]	2.5mm²
[Wire Size(AWG):]	28-16
[Resistant voltage(kv):]	AC2500v/Min
[Insulation Resistance:]	PA66 UL94V-0
[Poles(P):]	2-24P
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MC 1,5/...-STF-5,08 EC508VM 15EDGKM-5.08 VR 5.08-Contact on UP side(W/F) MC421-508
