LC10-5.0/LC10-5.08



       优势

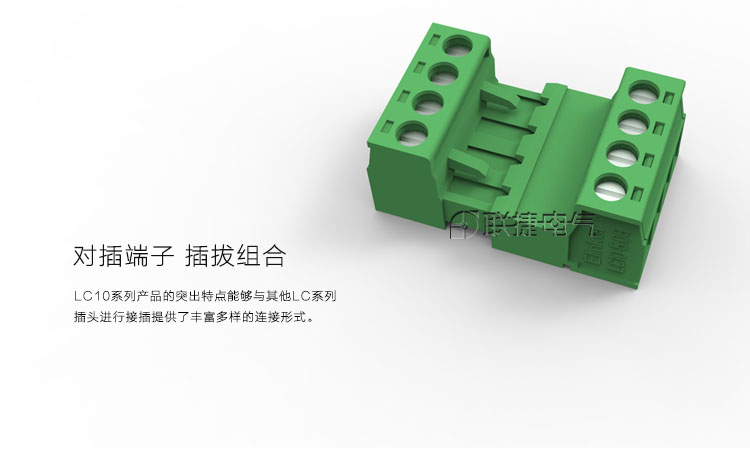

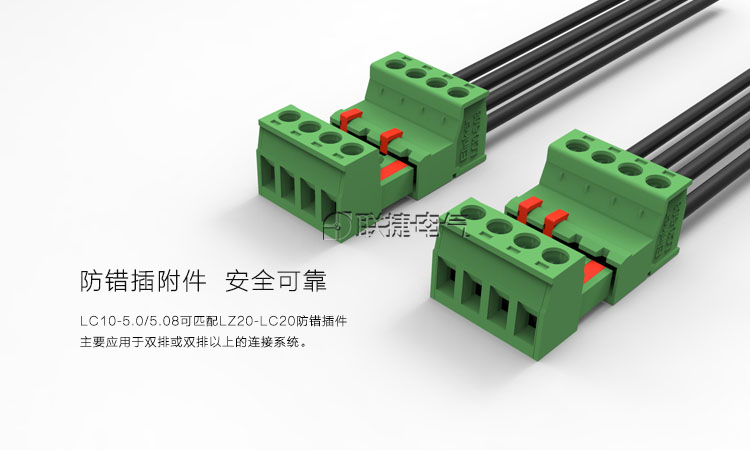

  LC10系列产品可与LZ5X系列产品配合使用可安装与面板上；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  插头插座防错插防错位保护；



Product Attribute
[Rated voltage(V)]	400
[Rated current(A):]	17.5
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
[The same model]	IC 2.5/...-ST-5.08 SLS 5.08/180B 2ESH 2EDGKR-5.08 V8 5.08 MPZ100-508

Product Attribute
[Rated voltage(V)]	400
[Rated current(A):]	17.5
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
[The same model]	IC 2.5/...-ST-5.08 SLS 5.08/180B 2ESH 2EDGKR-5.08 V8 5.08 MPZ100-508
