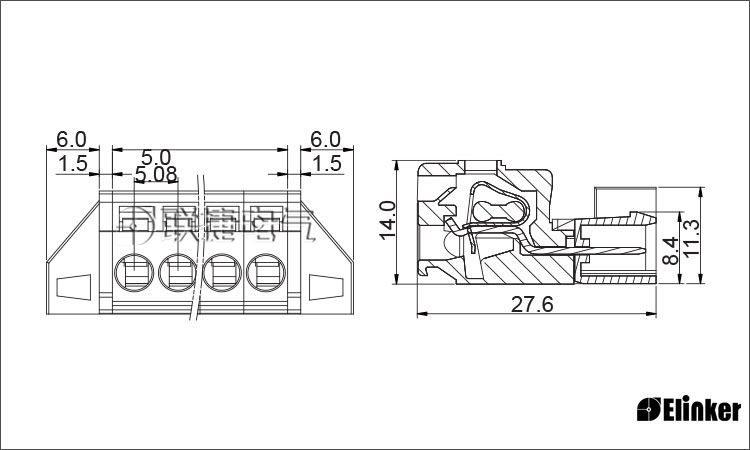

Drawings

Packing

优势

  自带防错插错位结构，插拔准确；

可定制，位数灵活；

  带法兰，安装牢固；

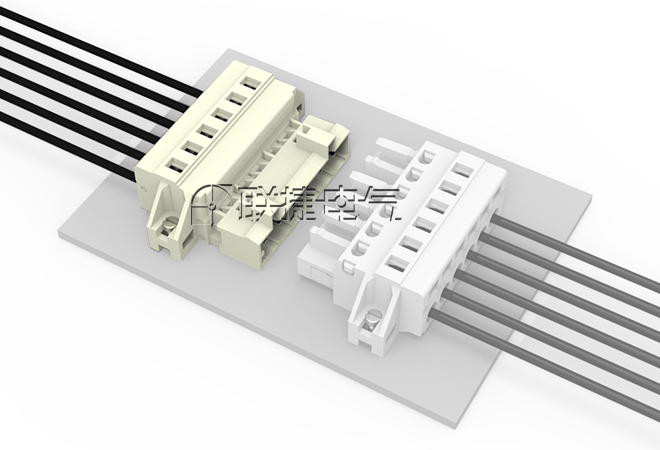

  与LSC1BM-5.0产品构成插拔组合端子组件。

Product Attribute

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】16A【UL】10A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 28-12

[Single/multi-core diameter(mm²):] 0.08-2.5

[Strip length(mm):] 8

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】16A【UL】10A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	28-12
[Single/multi-core diameter(mm²):]	0.08-2.5
[Strip length(mm):]	8
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】16A【UL】10A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	28-12
[Single/multi-core diameter(mm²):]	0.08-2.5
[Strip length(mm):]	8
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Spring Terminal/PCB terminal block
