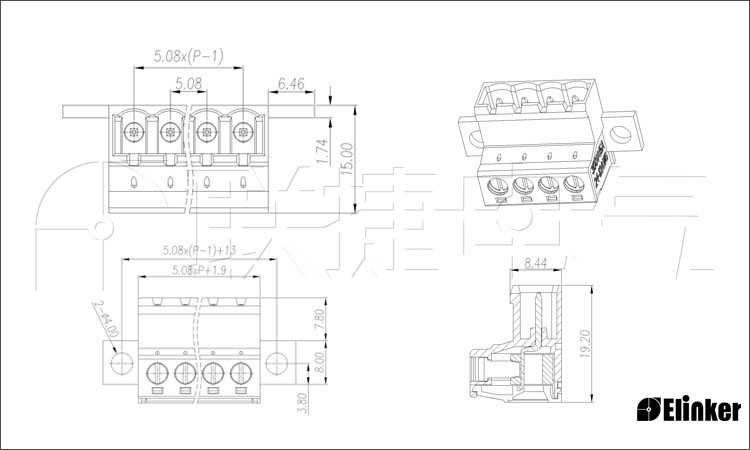

Drawings

Packing

优势

  结构高度低，节省安装空间；

  带固定位，可直接安装于面板；

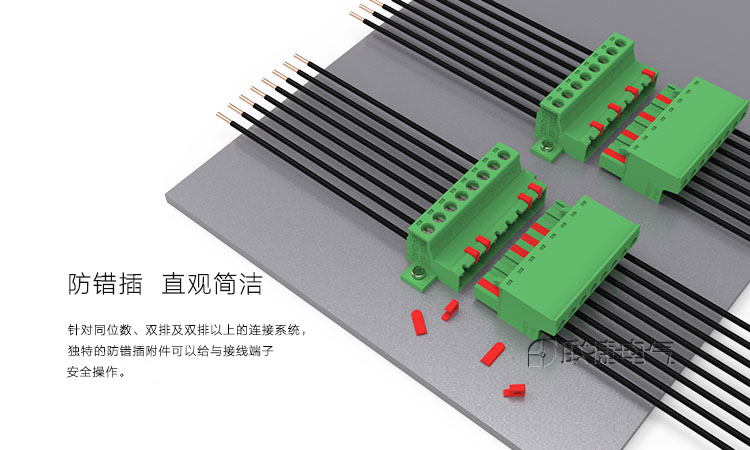

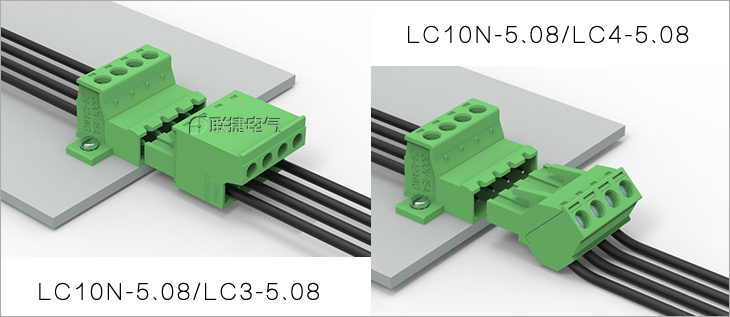

  与LC系列多种型号插头配套使用。

  插拔组合，提供丰富的连接形式。

Product Attribute

[Rated voltage(V)] 160V

[Rated current(A):] 8A

[Rated current(mm²):] 1.5

[Wire Size(AWG):] 26-14

[Single/multi-core diameter(mm²):] 0.14-1.5

[Maximum locking torque(Nm):] 0.22-0.25

[Screw:] M2

[Strip length(mm):] 9

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block
