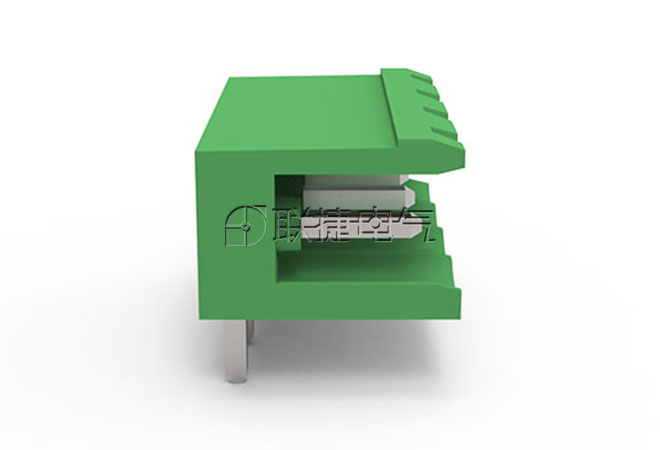

LZ1RK-5.0/LZ1RK-5.08



优势

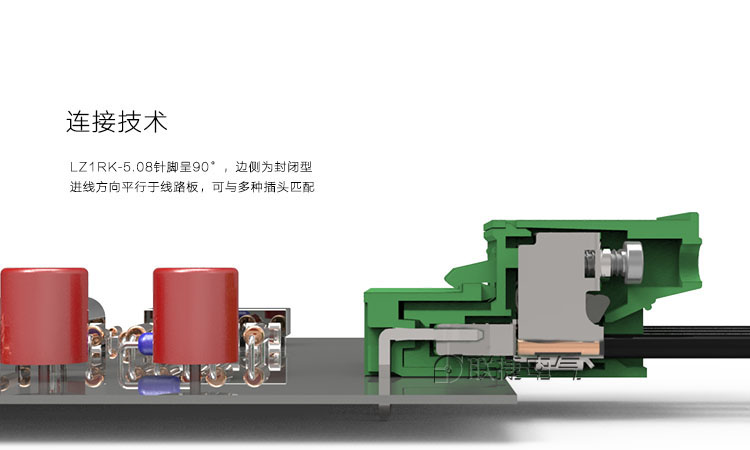

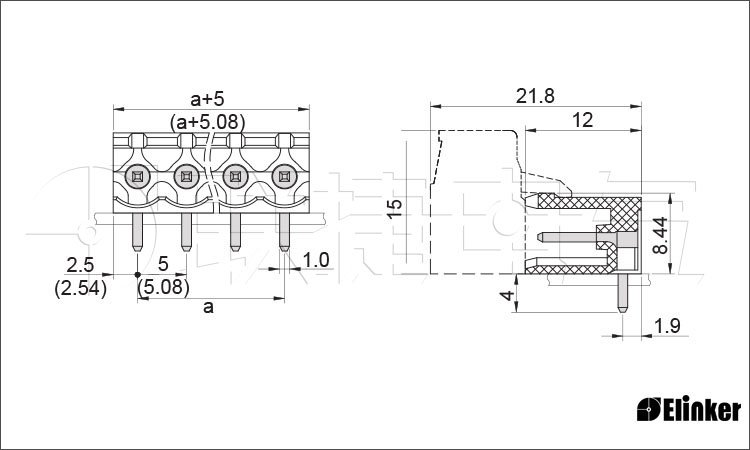

  插座针距5.0/5.08，水平入线；

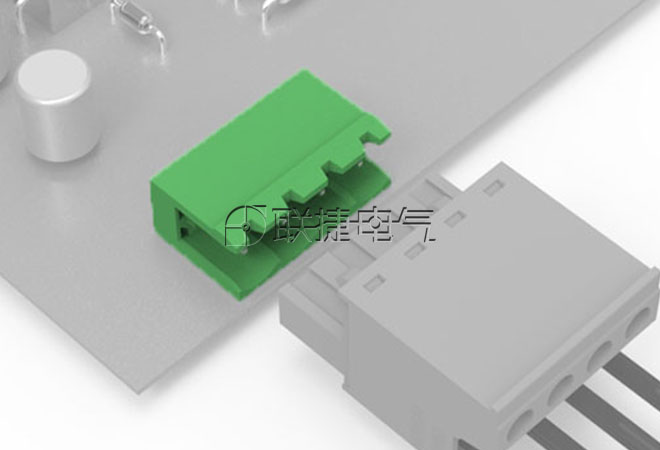

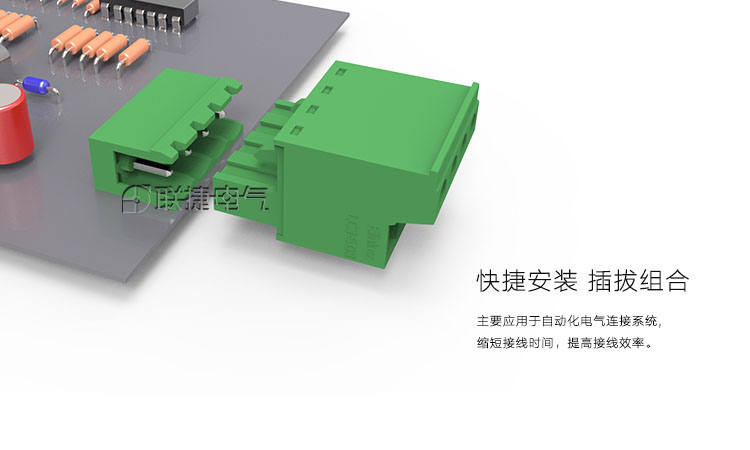

  与LC1系列搭配使用，快捷方便；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  侧面开口，方便多位端子安装。

Product Attribute
[Rated voltage(V)]	320V

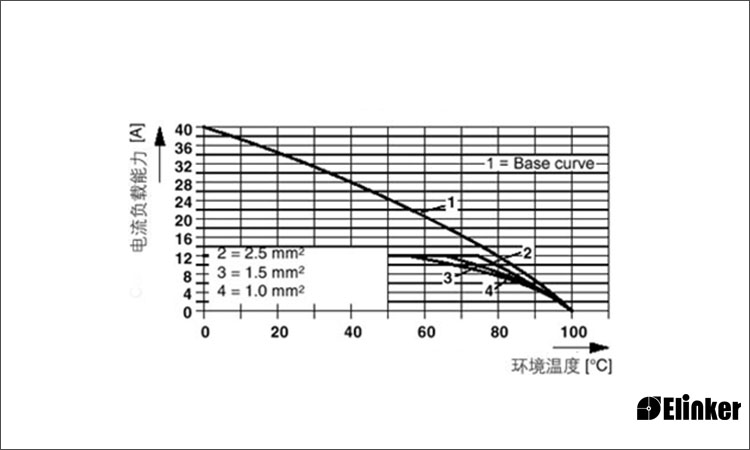

[Rated current(A):]	17.5A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	10
[Resistant voltage(kv):]	4

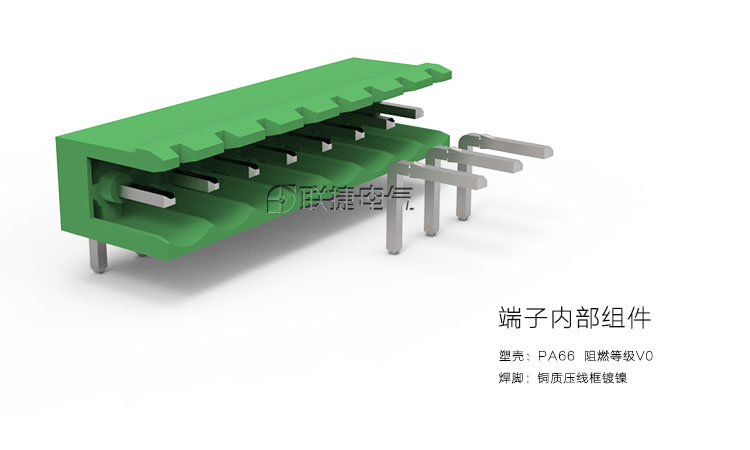

[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
