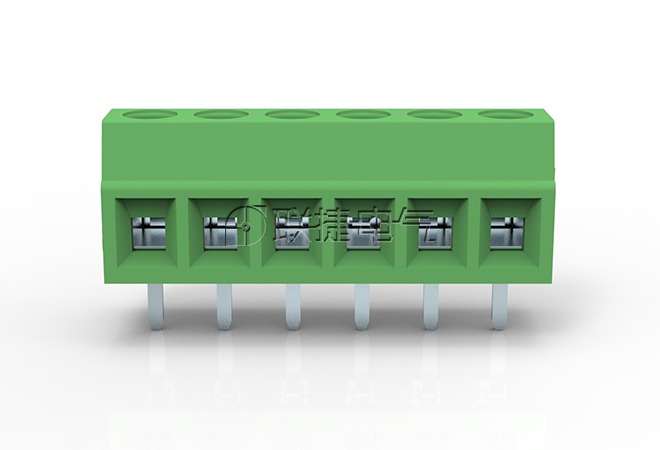

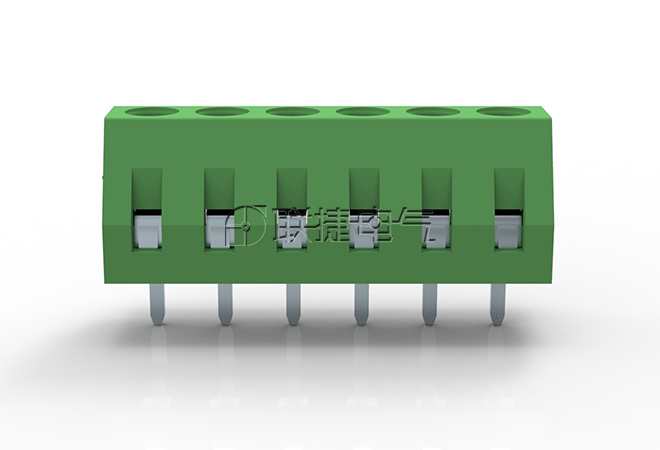

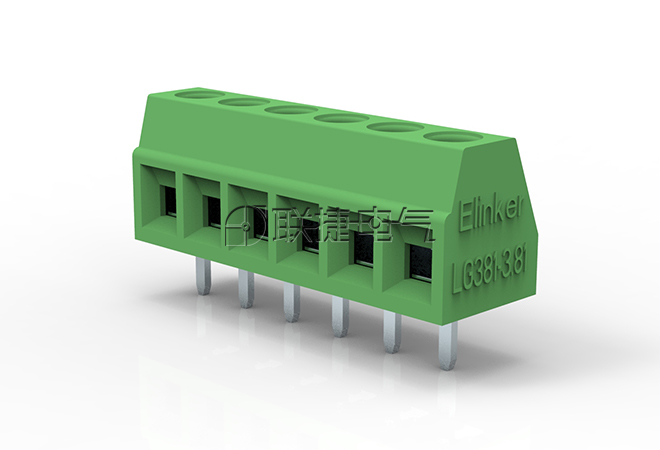

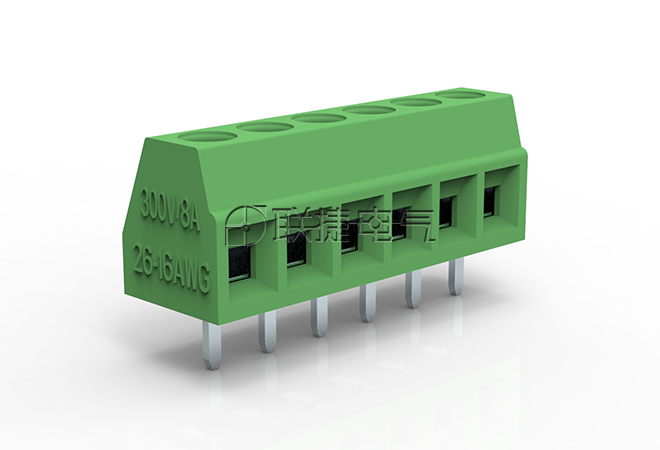

LG381-3.5/LG381-3.81





       优势

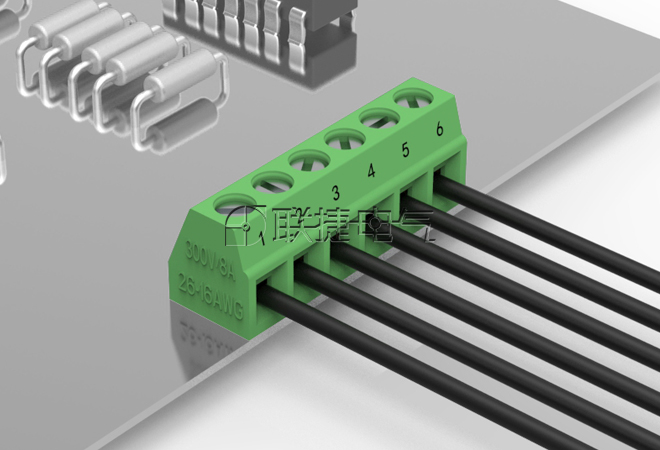

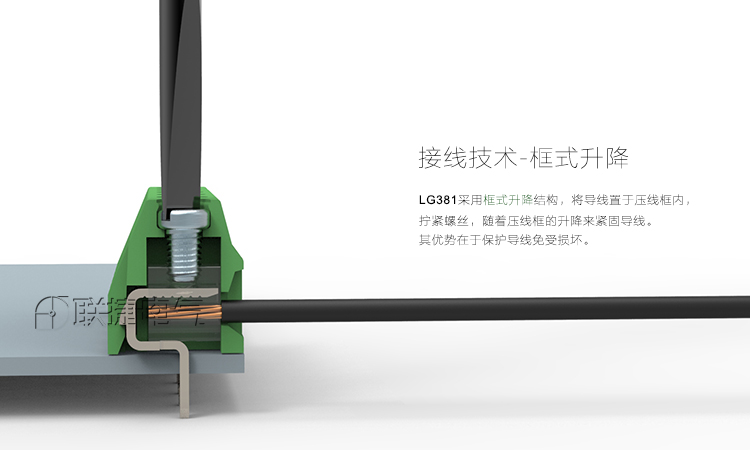

  升降式压线方式；

  塑壳PA66，阻燃等级V0；

  可接入0.14-1.5mm²的单芯线/0.14-1.0mm²的多芯线；

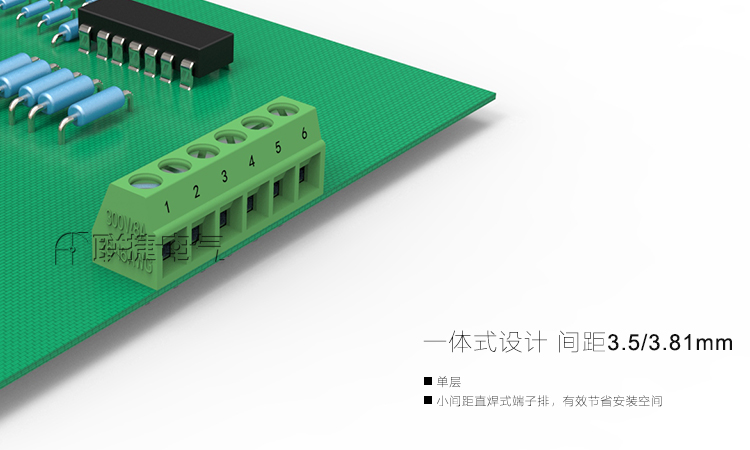

  可提供2-24位一体式端子解决方案；

Product Attribute
[Rated voltage(V)]	300
[Rated current(A):]	10
[Rated current(mm²):]	1.0
[Wire Size(AWG):]	26-16
[Single/multi-core diameter(mm²):]	0.14-1.5/0.14-1.0
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	5
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Solder Terminal

Product Attribute
[Rated voltage(V)]	300
[Rated current(A):]	10
[Rated current(mm²):]	1.0
[Wire Size(AWG):]	26-16
[Single/multi-core diameter(mm²):]	0.14-1.5/0.14-1.0
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	5
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Solder Terminal
