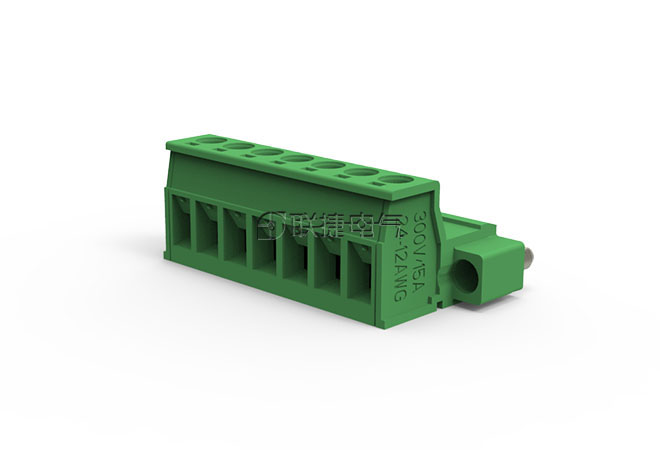

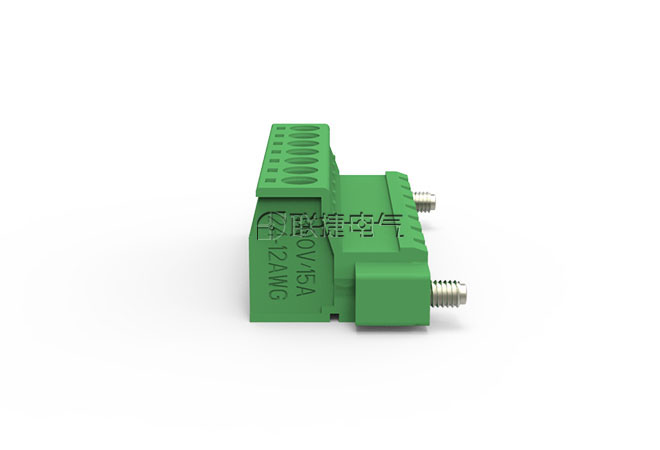

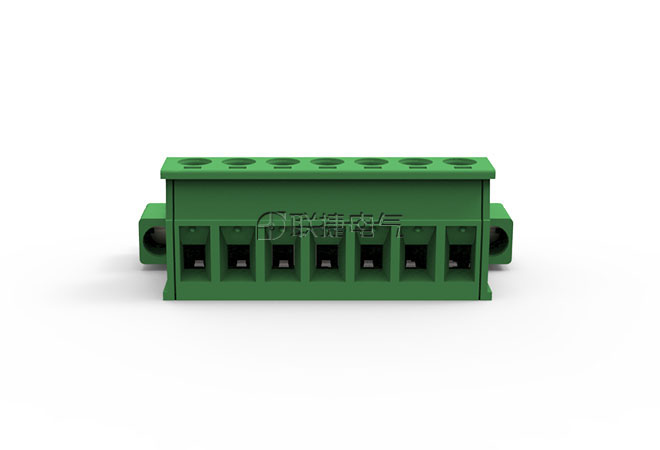

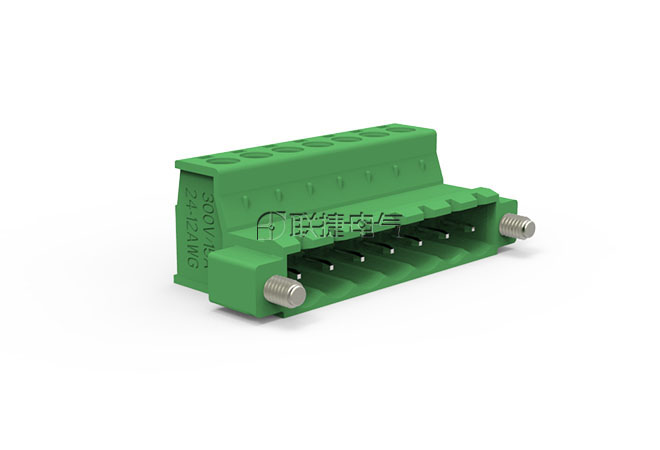

LC10M-5.0/LC10M-5.08

优势



  与LC系列其他产品进行接插，提供多样的连接形式；

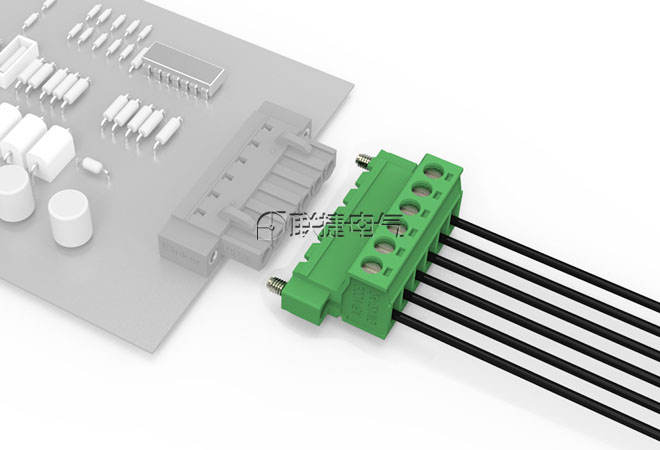

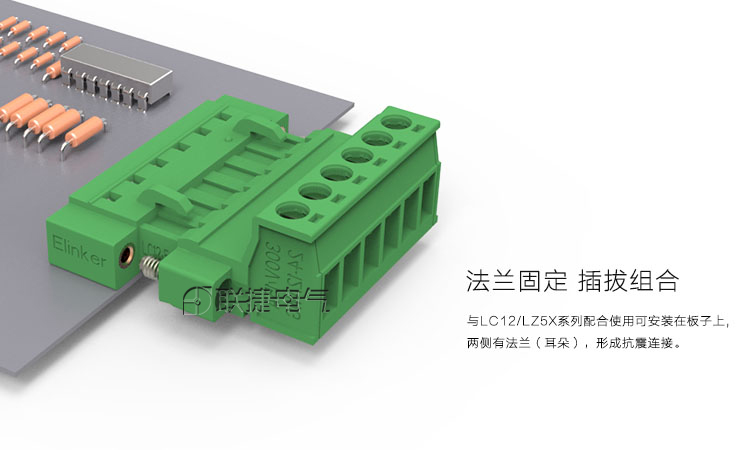

  平行进线，法兰固定，构成抗震连接；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

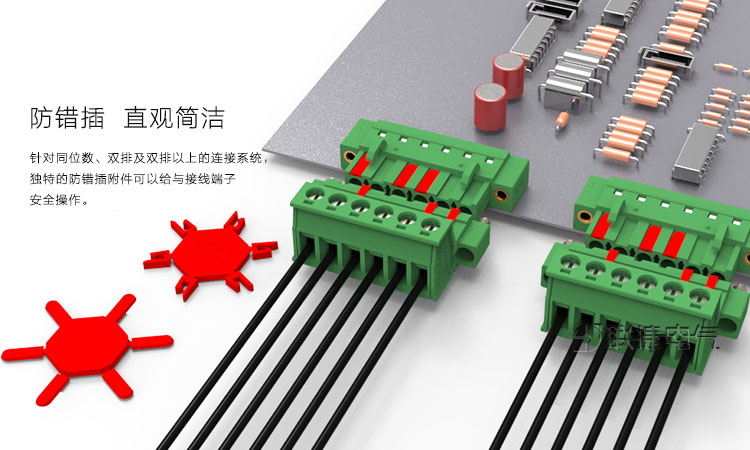

  通过防错插件对插头插座进行防错位保护；



Product Attribute
[Rated voltage(V)]	400V
[Rated current(A):]	8A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	16
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	IC 2.5/...-STF-5.08 SLS 5.08/180FI 2ESHM 2EDGKRM-5.08 V8 5.08 (Flange with Screw) MPZ101-508
