LC2A-5.0/LC2A-5.08

优势

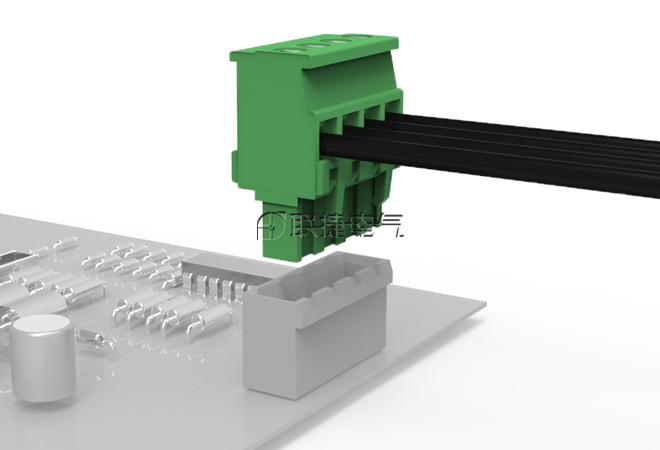

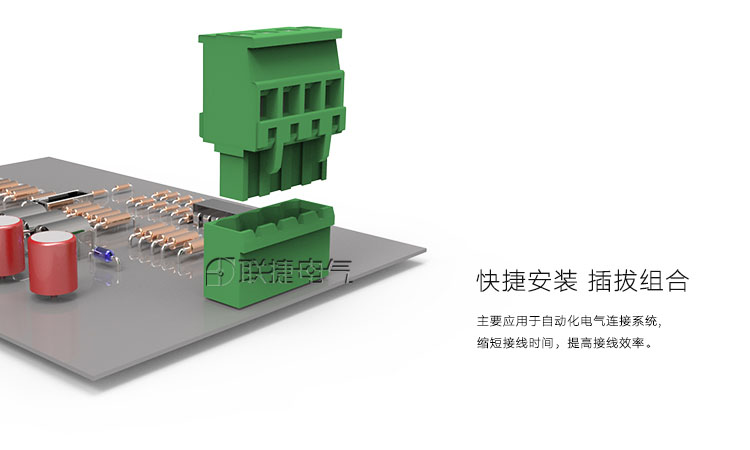

  插入方向垂直于导线，节省安装空间；

  导线接入方向垂直于插拔方向，导线免受挤压；

  可以连接截面积为2.5mm²的柔性导线；

  框式接线，安全可靠。





Product Attribute
[Rated voltage(V)]	320V
[Rated current(A):]	17.5A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MVSTBR 2.5/...-ST BLZP 5.00HC/90 SN 5ESDP 2EDGKA-5.0 TS5.0-A MC200-500 MVSTBR 2.5/...-ST-5.08 BLZP 5.08HC/90 SN 2ESDP 2EDGKA-5.08 TS5.08-A MC200-508

Product Attribute
[Rated voltage(V)]	320V
[Rated current(A):]	17.5A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MVSTBR 2.5/...-ST BLZP 5.00HC/90 SN 5ESDP 2EDGKA-5.0 TS5.0-A MC200-500 MVSTBR 2.5/...-ST-5.08 BLZP 5.08HC/90 SN 2ESDP 2EDGKA-5.08 TS5.08-A MC200-508
