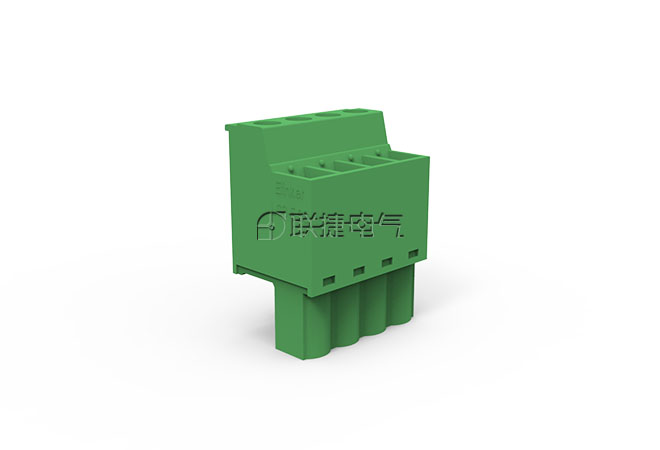

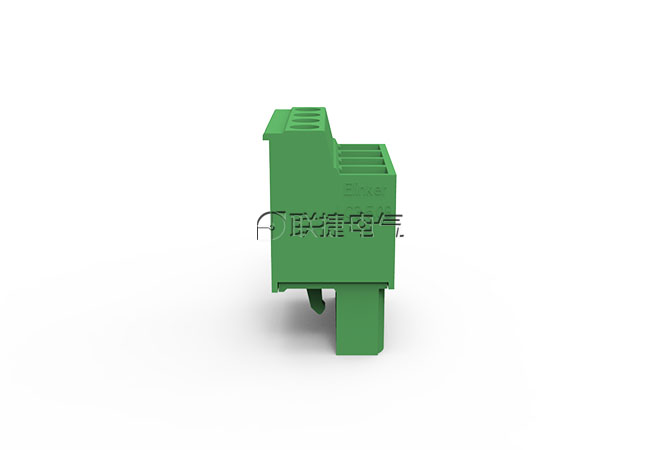

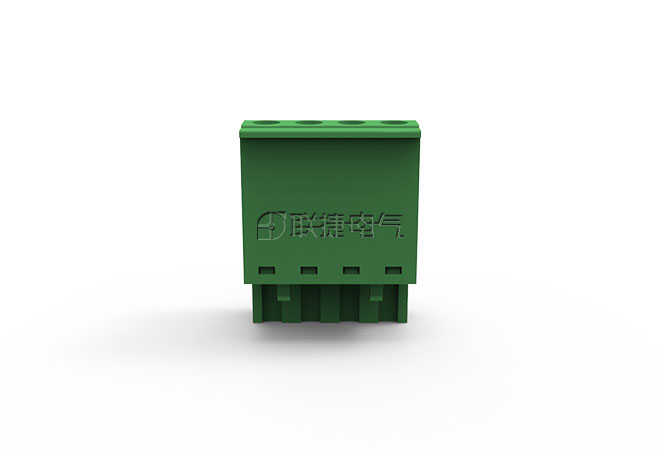

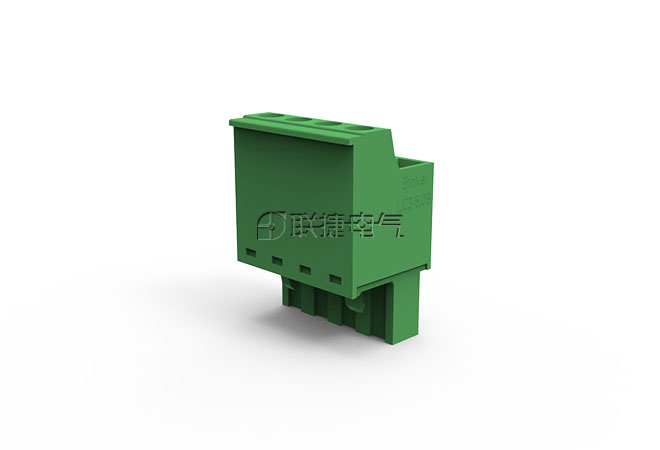

LC3-5.0/LC3-5.08



优势

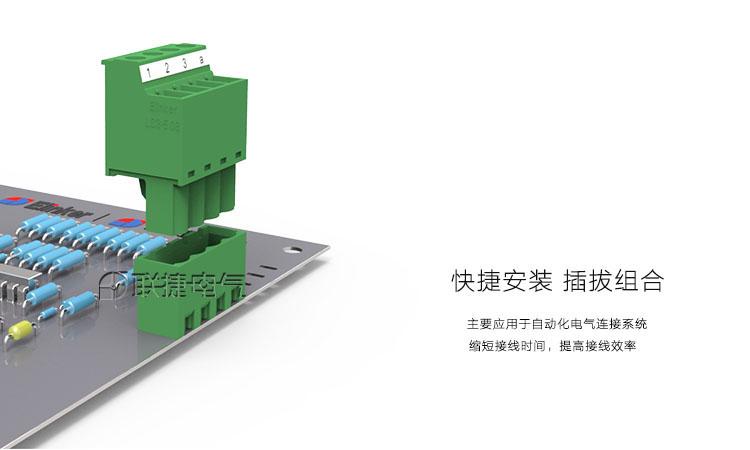

  插头插座紧密结合，节省空间；

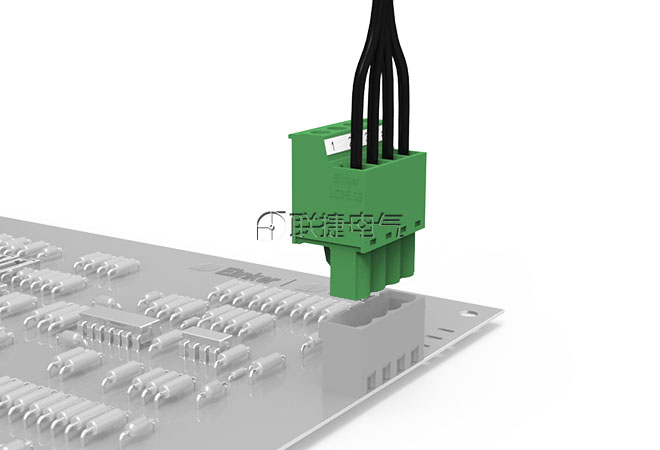

  使用正面接线，螺丝刀拧转方向与进线方向平行；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。



Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M2.5
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	FRONT-MSTB 2.5/...-ST 5ESDF 2EDGKC-5.0 VM 5.0 MC310-500 FRONT-MSTB 2.5/...-ST-5.08 BLT 5.08HC 2ESDF 2EDGKC-5.08 VM 5.08 W/O Flange MC310-508

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M2.5
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	FRONT-MSTB 2.5/...-ST 5ESDF 2EDGKC-5.0 VM 5.0 MC310-500 FRONT-MSTB 2.5/...-ST-5.08 BLT 5.08HC 2ESDF 2EDGKC-5.08 VM 5.08 W/O Flange MC310-508
