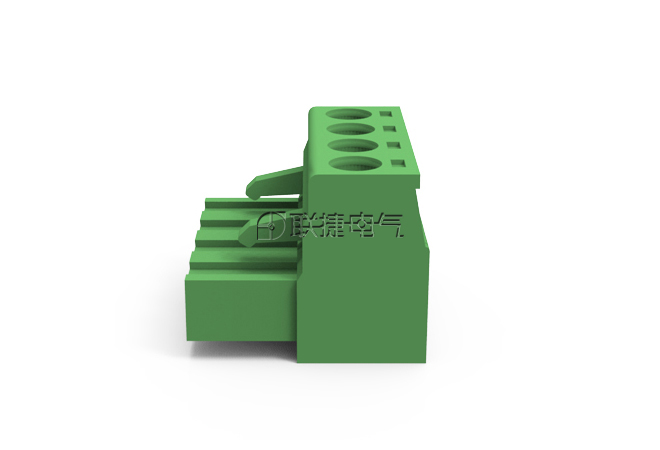

LC1-5.0/LC1-5.08

















       优势



  间距小，节省空间；

  结构高度低；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

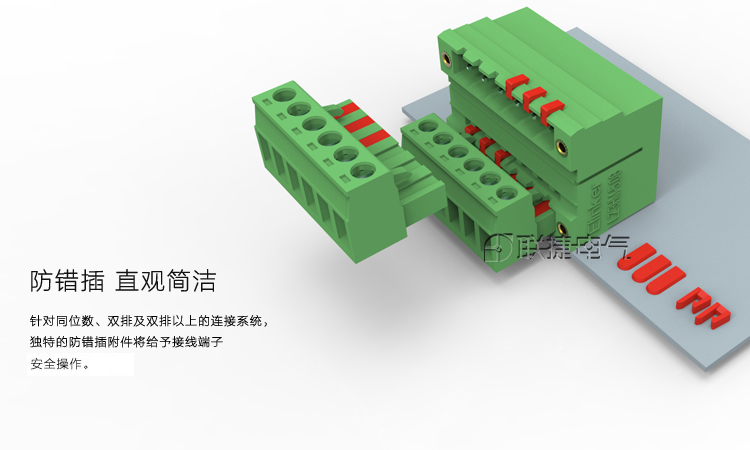

  插头插座防错插防错位保护；







Product Attribute
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	320V
[Rated current(A):]	17.5A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	3.5
[Insulation Resistance:]	PA/V0

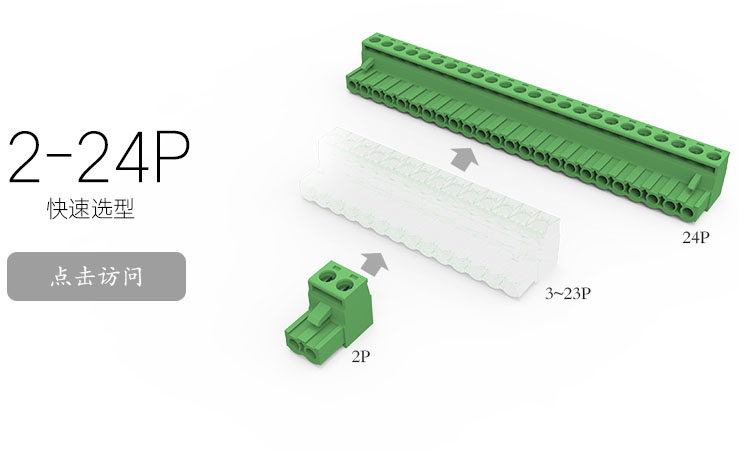

[Poles(P):]	2-24

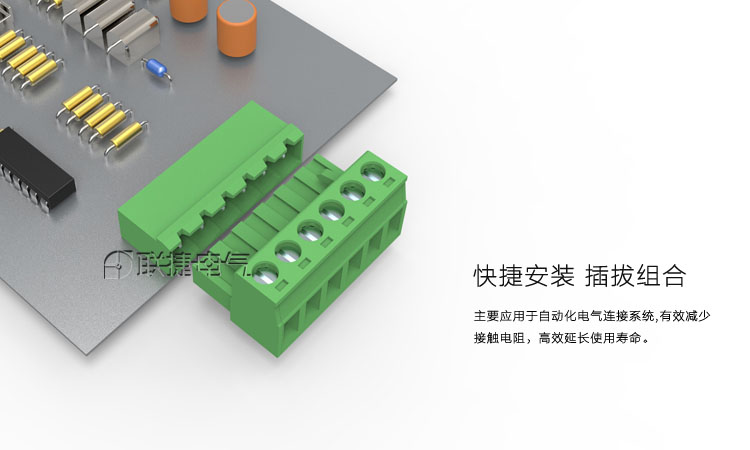

[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2.5/…-ST BLZP 5.00HC/180 SN 5ESDV 2EDGK-5.0 TJ 5.0 MC100-500 MSTB 2.5/…-ST-5.08 BLZP 5.08HC/180 SN 2ESDV 2EDGK-5.08 TJ5.08 MC100-508
[Material]	PA66
