Location Home > PCB Pluggable terminal > Pluggable terminal > Pole -5.08/5.00 > LC12V-5.0/LC12V-5.08

Assembly

LZ1R-5.0/LZ1R-5.08

LC19U-5.08

LC10-5.0/LC10-5.08

LZ1RK-5.0/LZ1RK-5.08

Description

Property

Scene

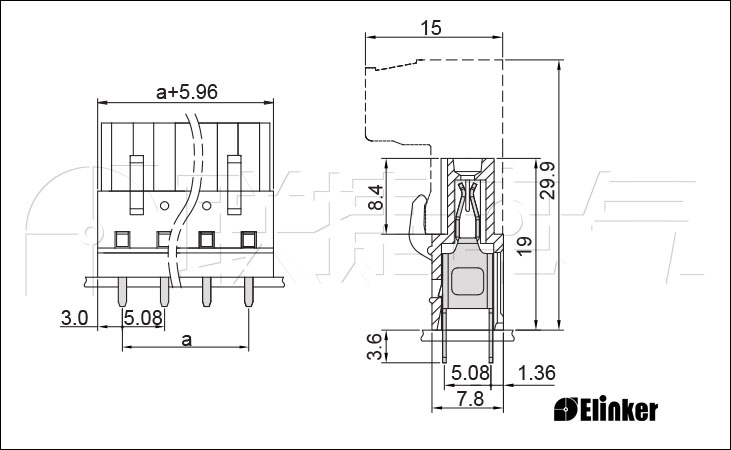

Drawings

Packing

优势

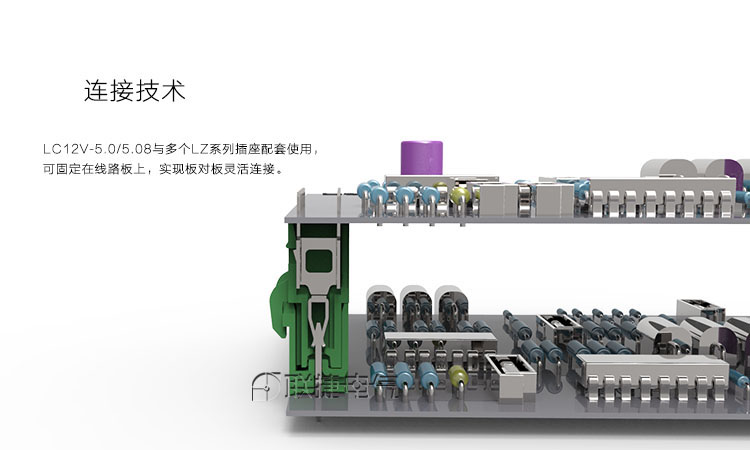

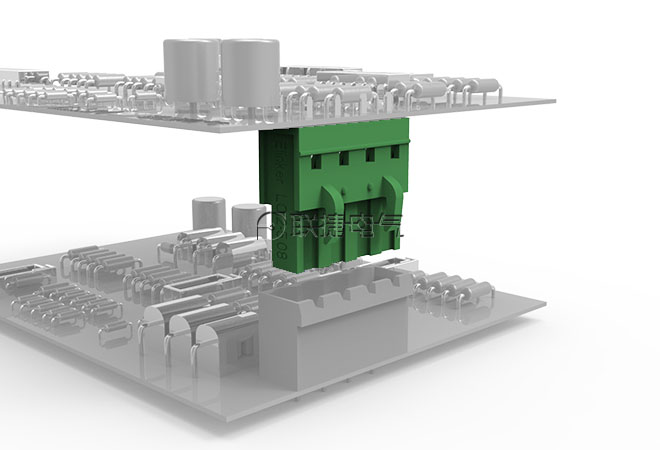

  活动的插头固定在PCB板上，实现板对板连接；

可以清晰区分线路板上的输入端和输出端；

  插头插座可互相插紧，节省空间；

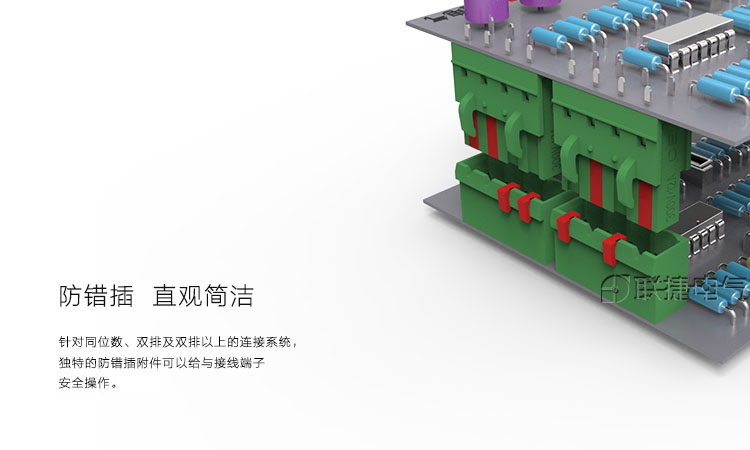

  安装防错插件，可保证端子准确连接。

Product Attribute

[Rated voltage(V)] 【IEC】320V【UL】300V

[Rated current(A):] 【IEC】12A【UL】12A

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] ICV 2.5/...-G-5.08 BLL 5.08/180 2ESDCV 2EDGB-5.08 V7 5.0-Vertical PTB750S-25 MF204-5.08

Product Attribute
[Rated voltage(V)]	【IEC】320V【UL】300V
[Rated current(A):]	【IEC】12A【UL】12A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	ICV 2.5/...-G-5.08 BLL 5.08/180 2ESDCV 2EDGB-5.08 V7 5.0-Vertical PTB750S-25 MF204-5.08

Product Attribute
[Rated voltage(V)]	【IEC】320V【UL】300V
[Rated current(A):]	【IEC】12A【UL】12A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	ICV 2.5/...-G-5.08 BLL 5.08/180 2ESDCV 2EDGB-5.08 V7 5.0-Vertical PTB750S-25 MF204-5.08
