Location Home > PCB Pluggable terminal > Pluggable terminal > Pole -5.08/5.00 > LC12RM-5.0/LC12RM-5.08

Assembly

LZ5X-5.0/LZ5X-5.08

LC10M-5.0/LC10M-5.08

LZ1FMR-5.0/LZ1FMR-5.08

LZ1FMV-5.0/LZ1FMV-5.08

Description

Property

Scene

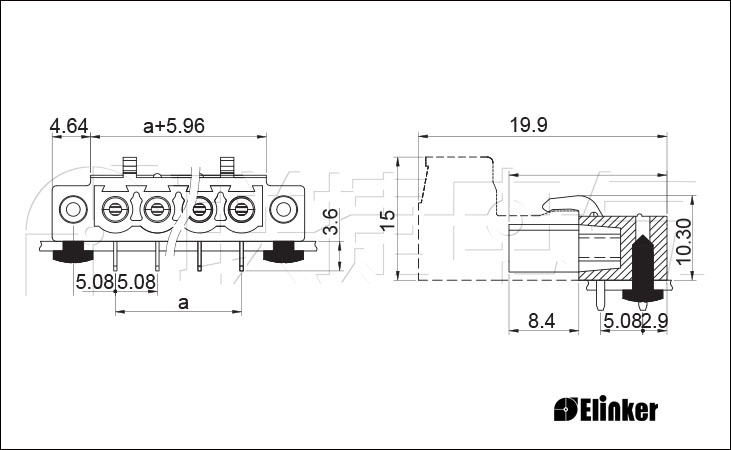

Drawings

Packing

优势

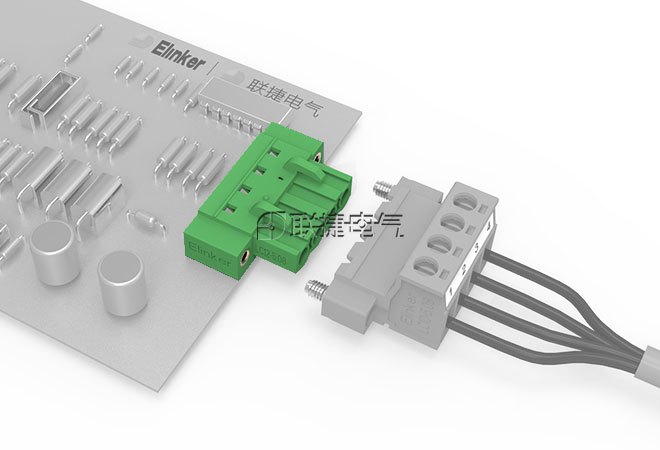

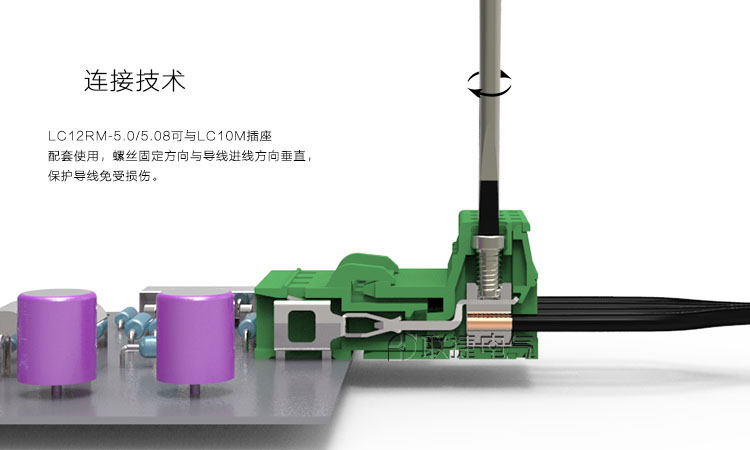

活动的插头可固定在PCB板上，实现灵活连接；

插头插座可可互相插紧，节省空间；

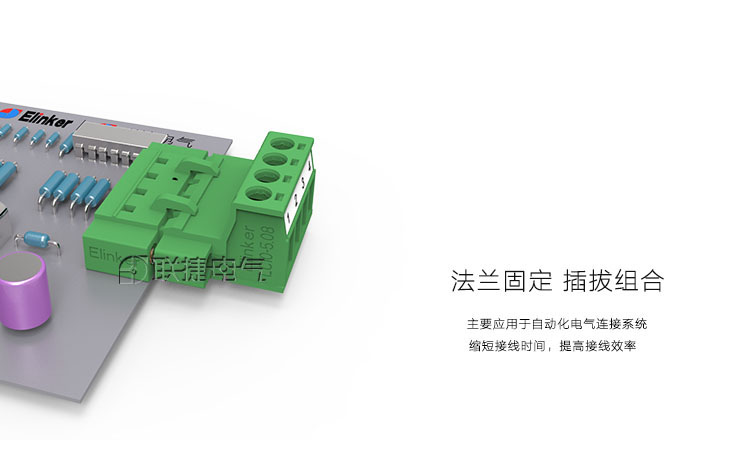

法兰固定，连接更牢固；

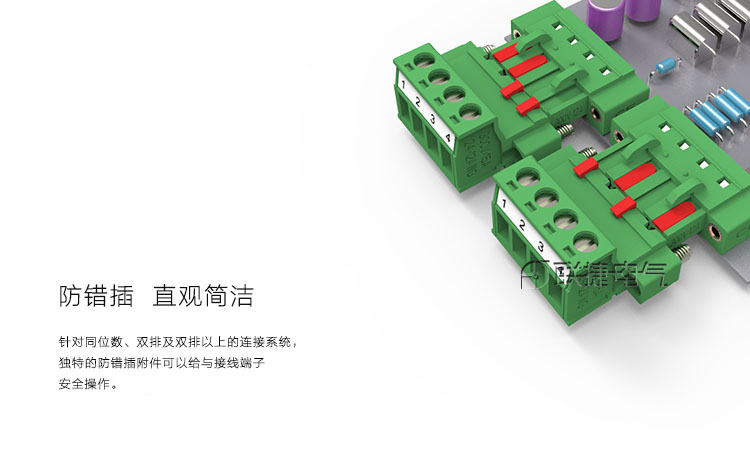

防错插件可保证端子正确连接。

Product Attribute

[Rated voltage(V)] 【IEC】320V【UL】300V

[Rated current(A):] 【IEC】12A【UL】12A

[Resistant voltage(kv):] 4

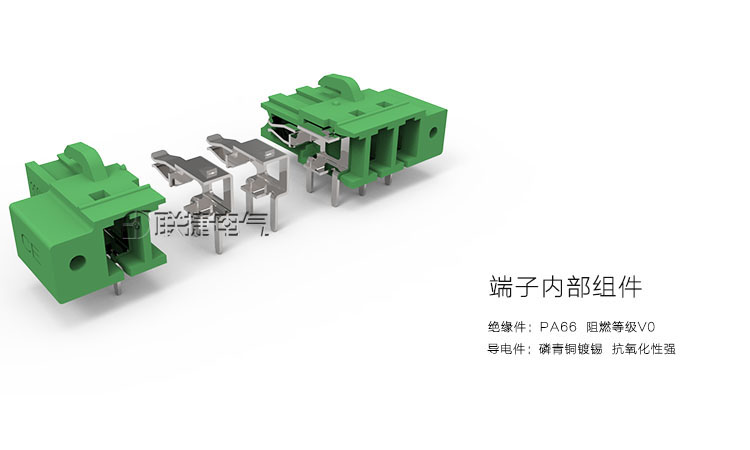

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] IC 2.5/...-GF-5.08 BLL 5.08/90F 2ESDCRM 2EDGAM-5.08 V7 5.08-Right-angle W/F PTB750S-26 MF205-5.08

Product Attribute
[Rated voltage(V)]	【IEC】320V【UL】300V
[Rated current(A):]	【IEC】12A【UL】12A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	IC 2.5/...-GF-5.08 BLL 5.08/90F 2ESDCRM 2EDGAM-5.08 V7 5.08-Right-angle W/F PTB750S-26 MF205-5.08

Product Attribute
[Rated voltage(V)]	【IEC】320V【UL】300V
[Rated current(A):]	【IEC】12A【UL】12A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	IC 2.5/...-GF-5.08 BLL 5.08/90F 2ESDCRM 2EDGAM-5.08 V7 5.08-Right-angle W/F PTB750S-26 MF205-5.08
