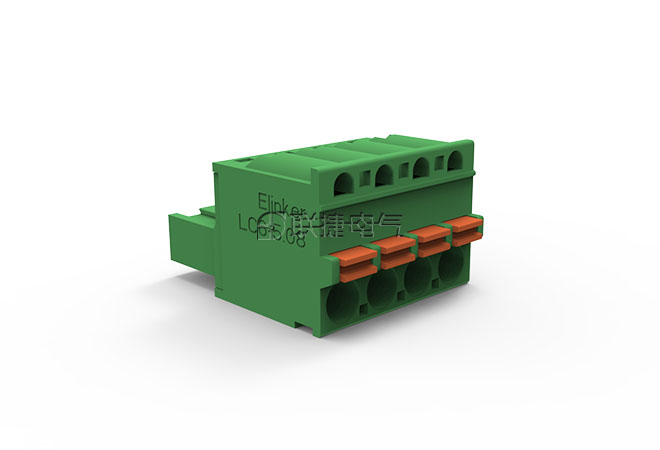

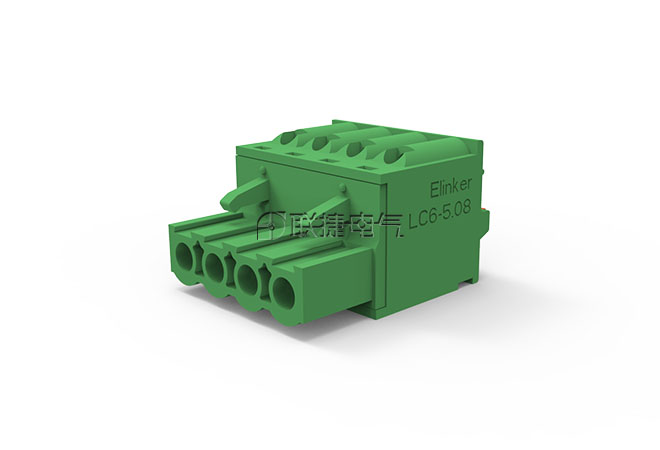

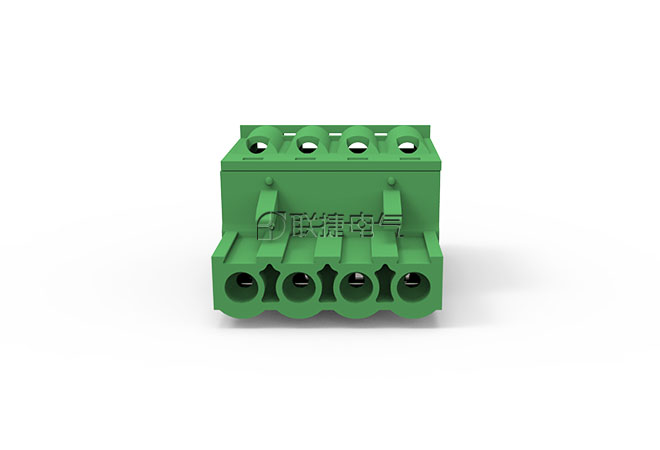

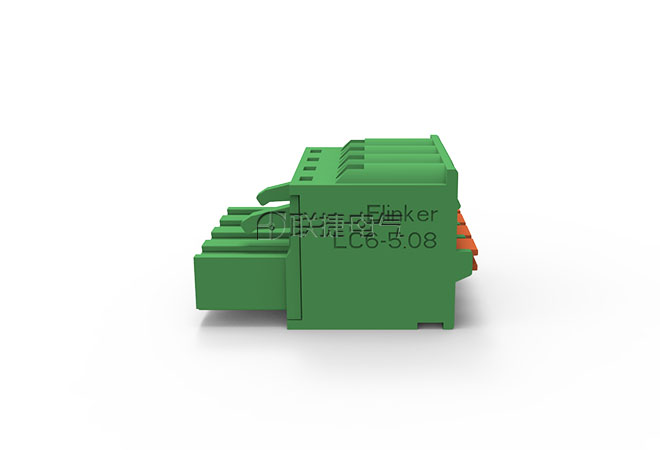

LC6-5.0/LC6-5.08



优势

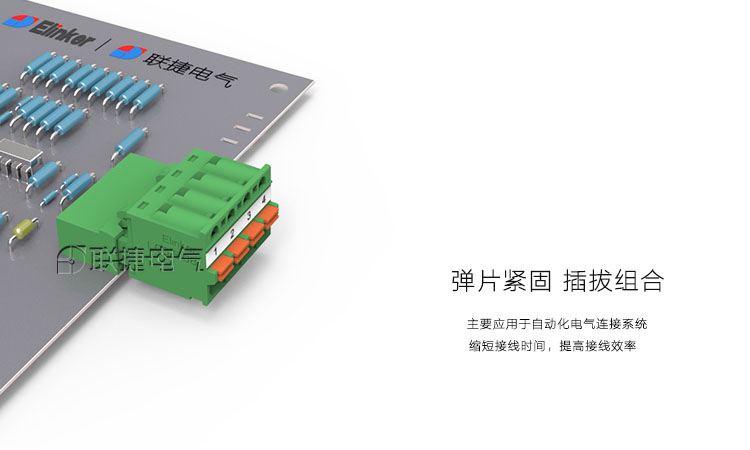

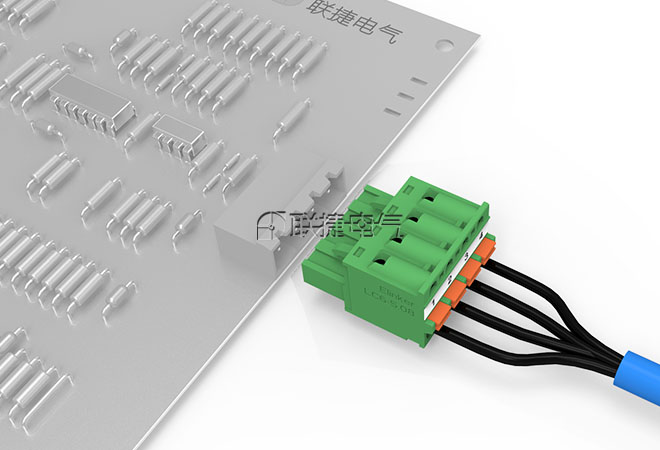

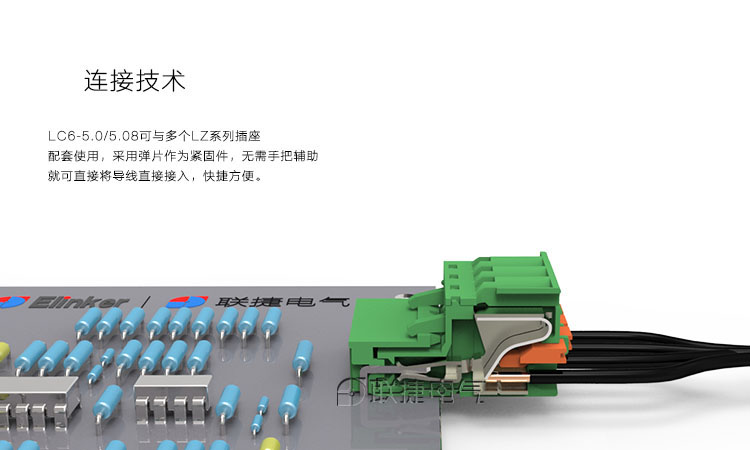

 弹簧连接方式，只需将导线直接插入接线位即可，快捷方便；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

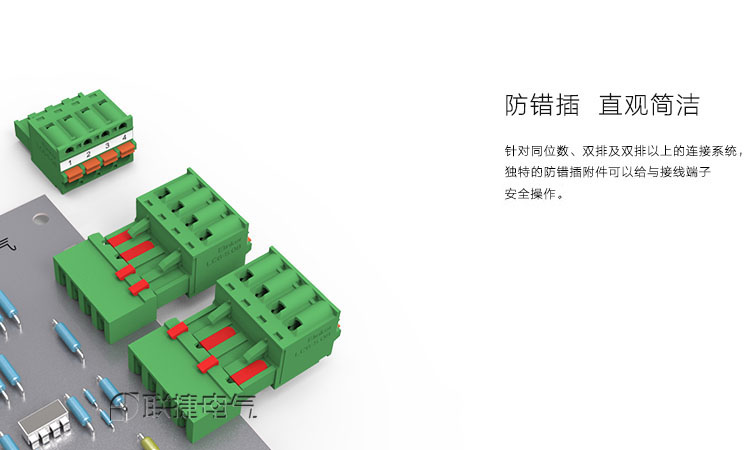

  通过防错插件对插头插座进行防错位保护。





Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】10A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】26-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Strip length(mm):]	10
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	FKC 2.5/...-ST 5ESDSR 2EDGKD-5.0 FKC 2.5/...-ST-5.08 BLF 5.08HC/180 SN 2ESDSR 2EDGKD-5.08 HW 5.08 (Contact on down side)
