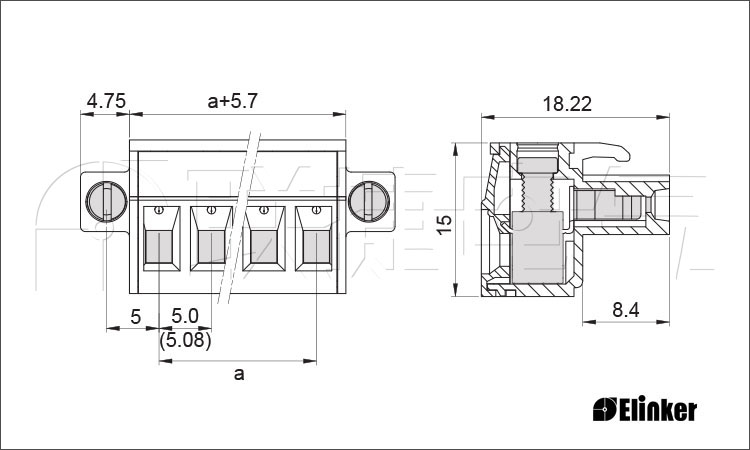

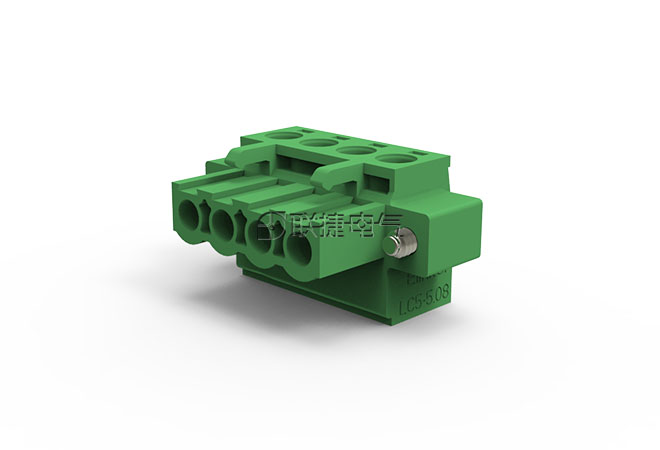

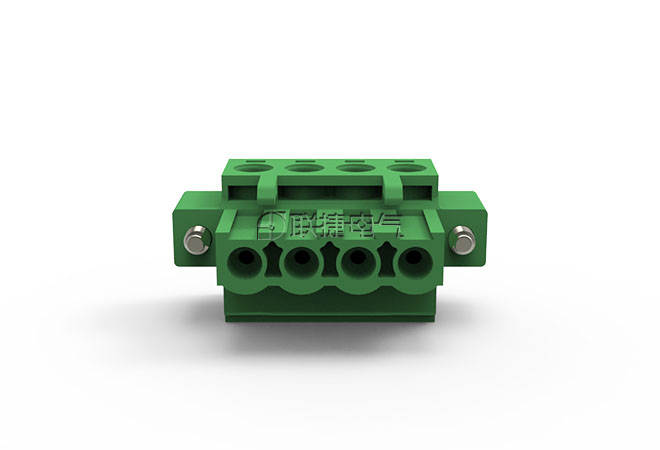

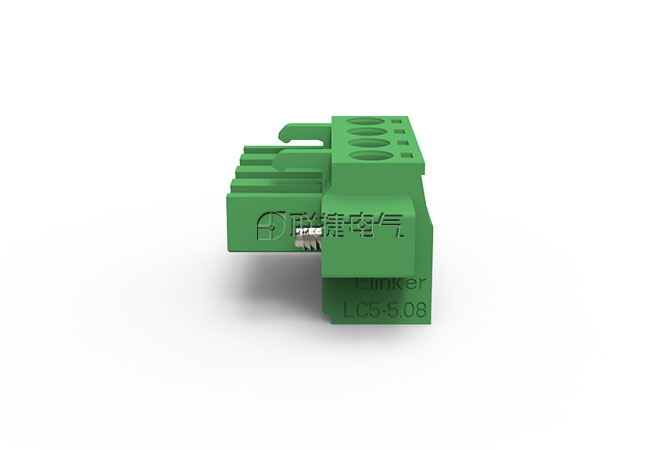

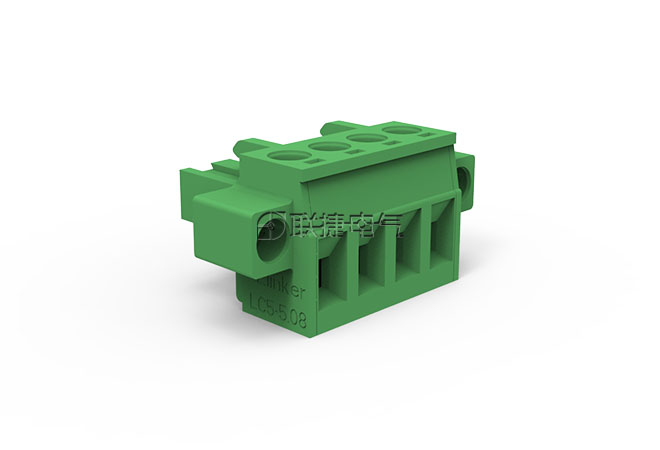

LC5M-5.0/LC5M-5.08



优势

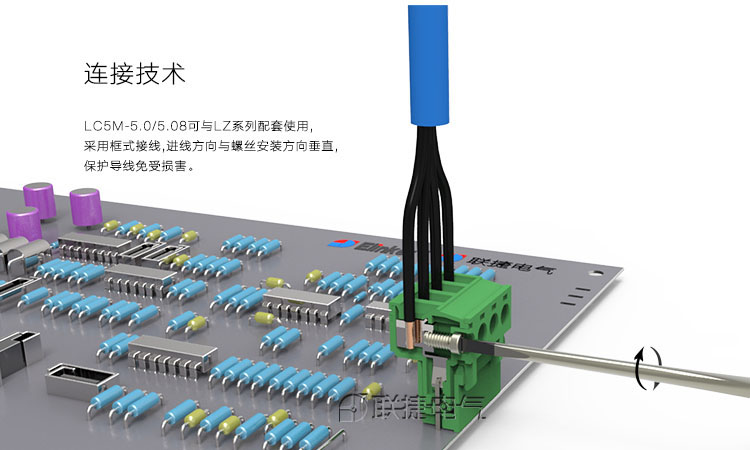

  螺丝刀拧转方向与进线方向垂直，保护导线免受损害；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

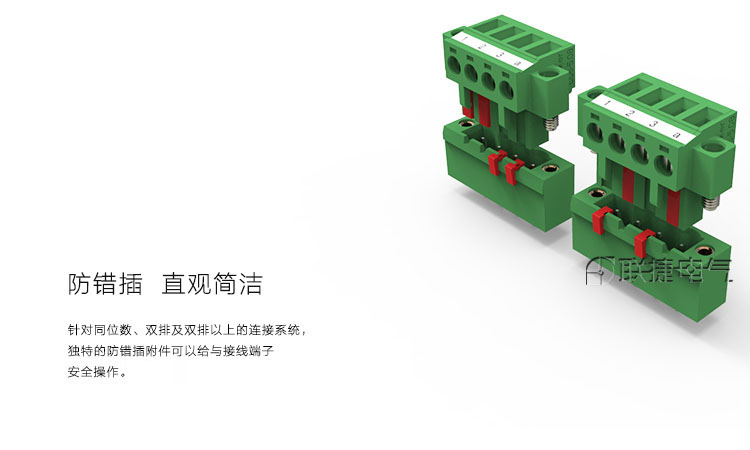

  通过防错插件对插头插座进行防错位保护；

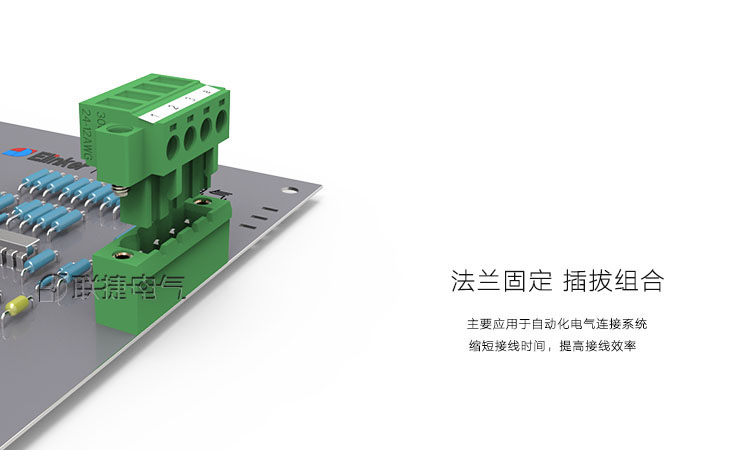

 法兰固定，连接更牢固。





Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V

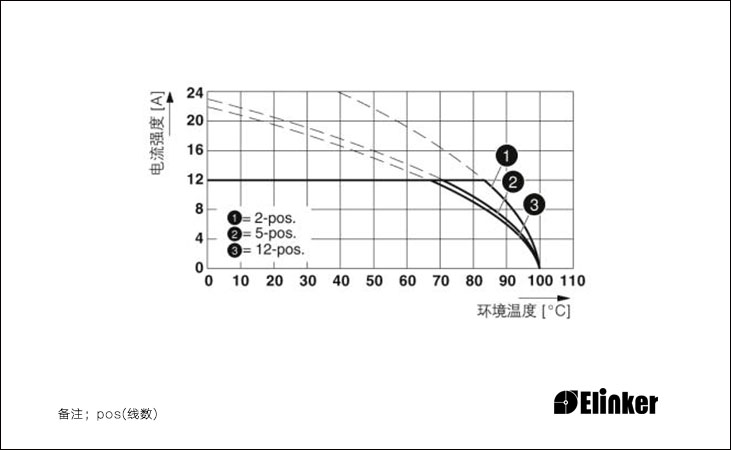

[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24

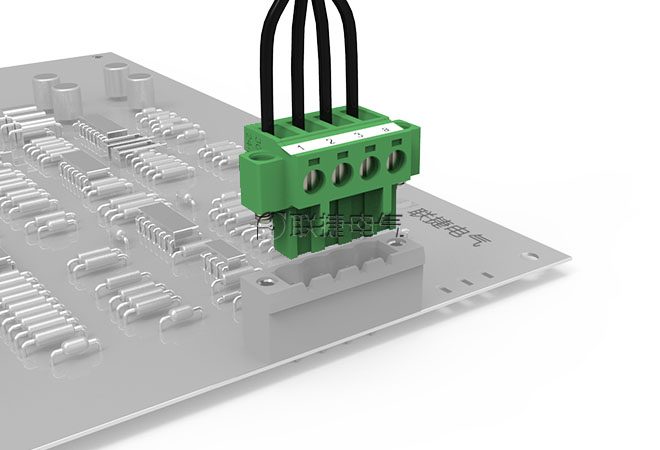

[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTBT 2.5/...-STF 5ESDTM 2EDGKFM-5.0 TJ5.0-W/F Contact on up side MSTBT 2.5/...-STF-5.08 2EDGKFM-5.08 TJ 5.08-W/F-Contact on up side
