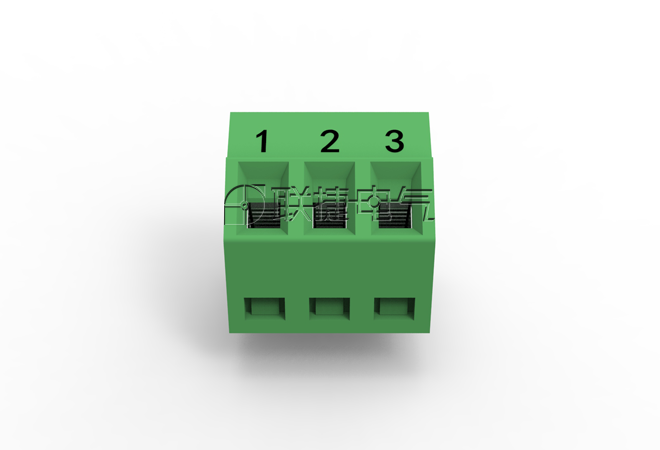

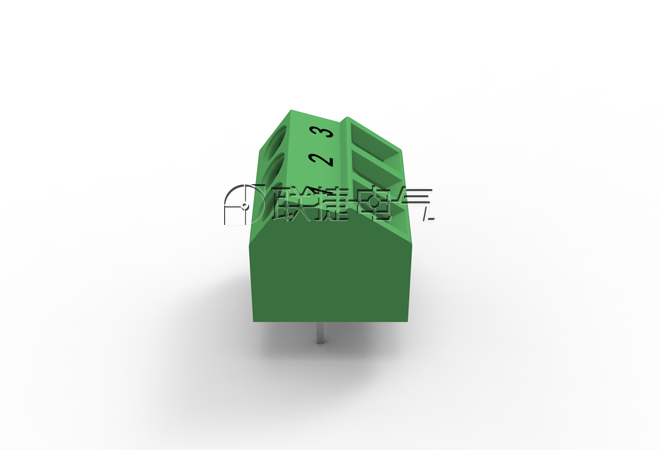

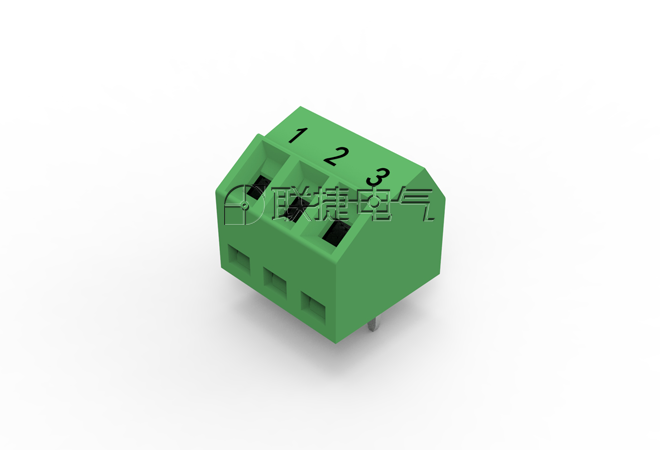

LG350D-3.5/LG350D-3.81





      优势

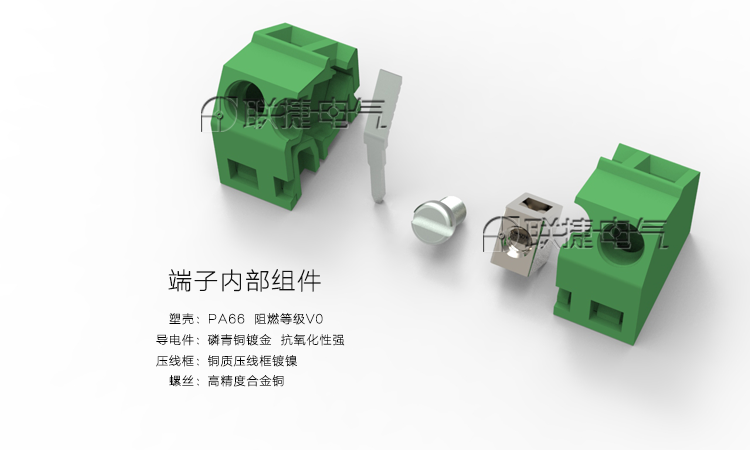

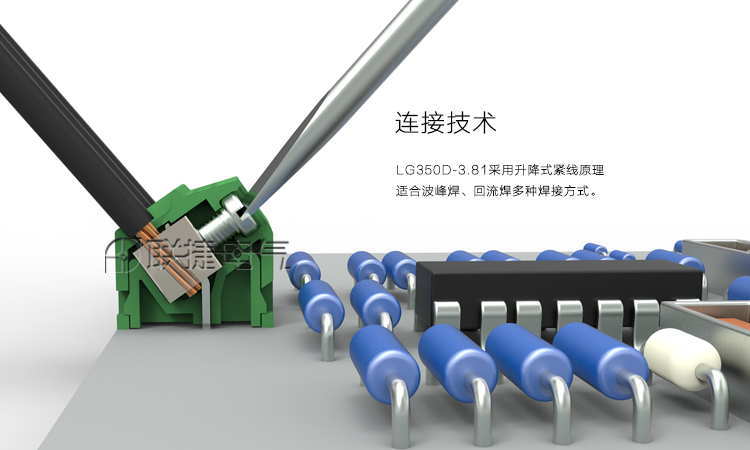

  直焊式接线端子利用框式夹线原理，焊脚与夹线体分成两部分，确保拧紧螺钉时的距离不会传至焊点而损伤焊点。

  绝缘外壳具有优良的耐磨性，机械强度较高。

 导电件采用高精度磷青铜；用高精度高速冲压成型；可选金，银，锡，镍等电镀

  压线框常见的材质有铜材，铁包件和锌合金。我公司为了品质稳定采铜质压线框镀镍处理。







Product Attribute
[Rated voltage(V)]	200

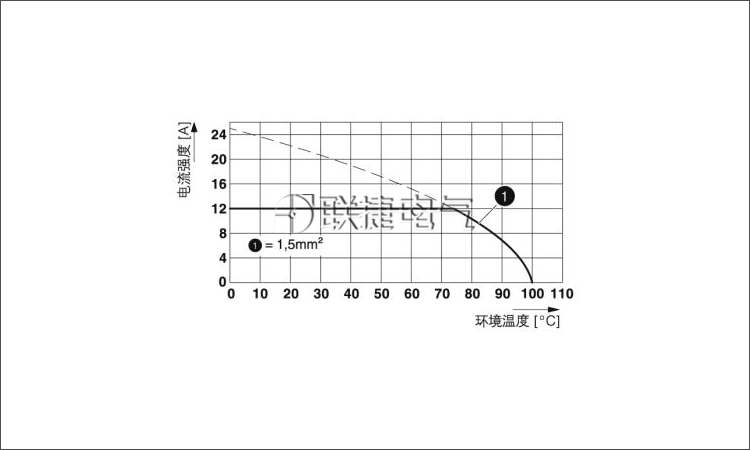

[Rated current(A):]	10
[Rated current(mm²):]	1.0
[Wire Size(AWG):]	26-16
[Single/multi-core diameter(mm²):]	0.14-1.5/0.14-1.0
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	5
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24

Product Attribute
[Rated voltage(V)]	200
[Rated current(A):]	10
[Rated current(mm²):]	1.0
[Wire Size(AWG):]	26-16
[Single/multi-core diameter(mm²):]	0.14-1.5/0.14-1.0
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	5
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/VO
[Poles(P):]	2-24
