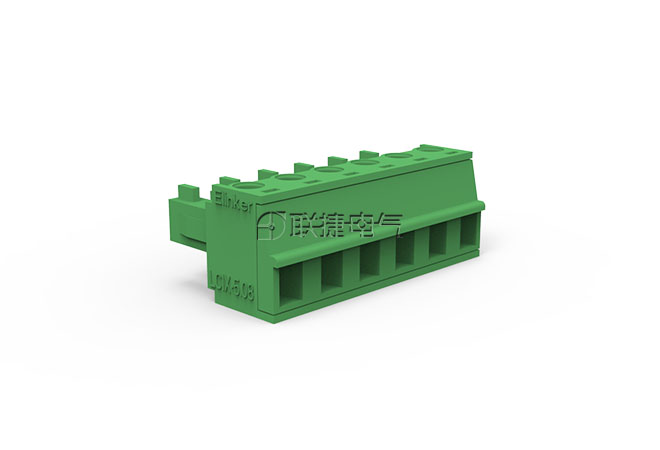

LC5X-5.0/LC5X-5.08





优势





  插头插座紧密结合，节省空间；

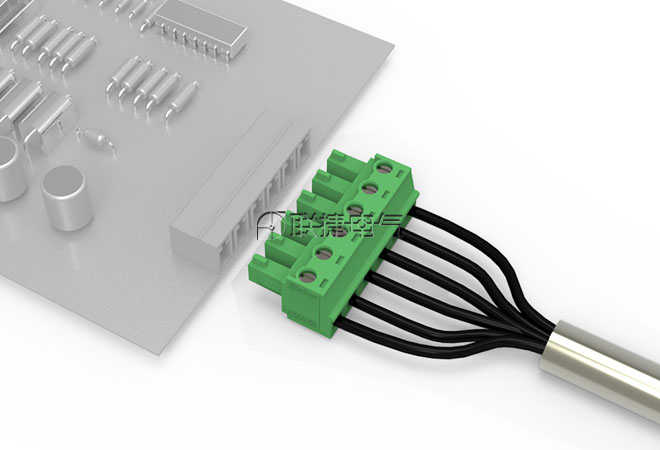

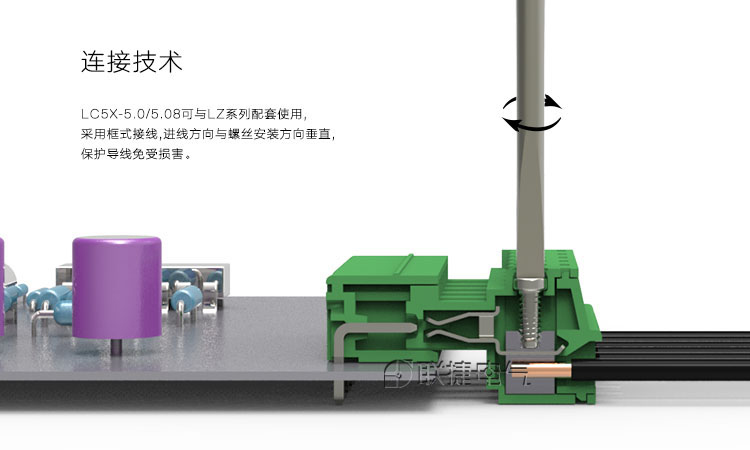

  平行进线，与螺丝拧紧方向垂直，保护导线；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。





Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[The same model]	MC 1,5/...-ST-5,08 EC508V 15EDGK-5.08 VR 5.08-Contact on UP side MC420-508

Product Attribute
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[The same model]	MC 1,5/...-ST-5,08 EC508V 15EDGK-5.08 VR 5.08-Contact on UP side MC420-508
