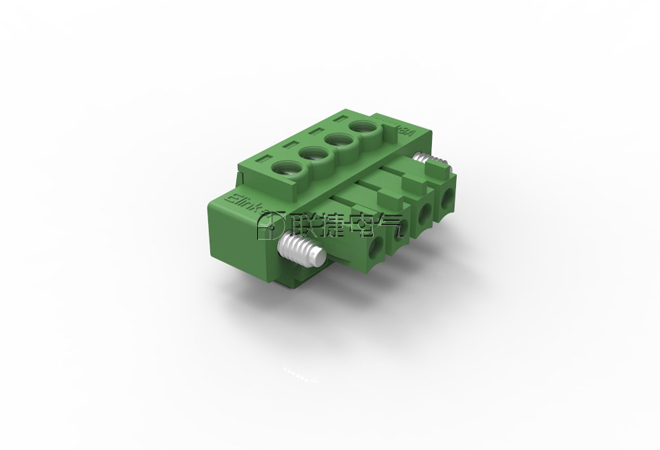

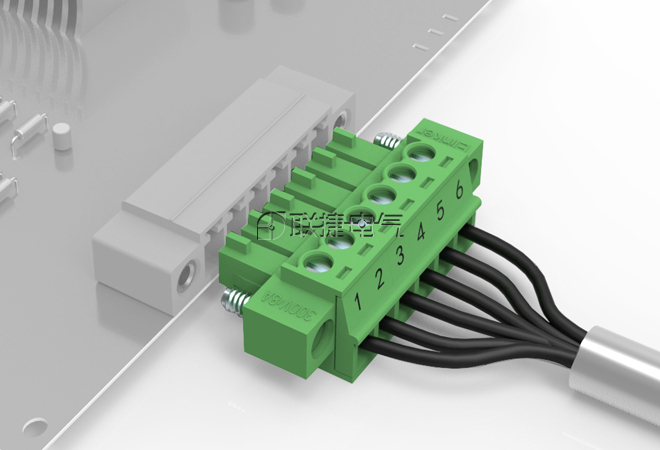

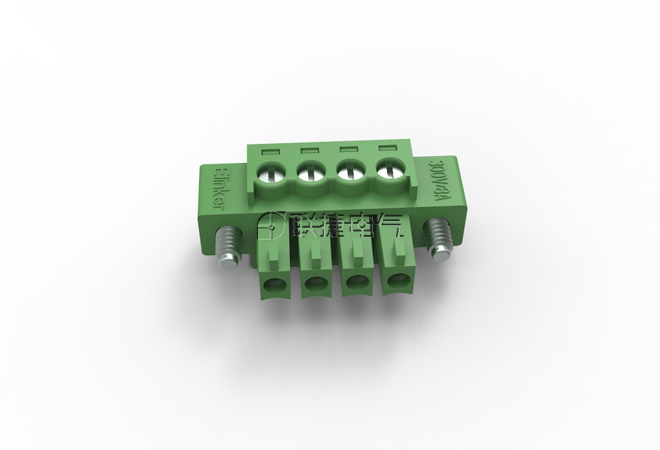

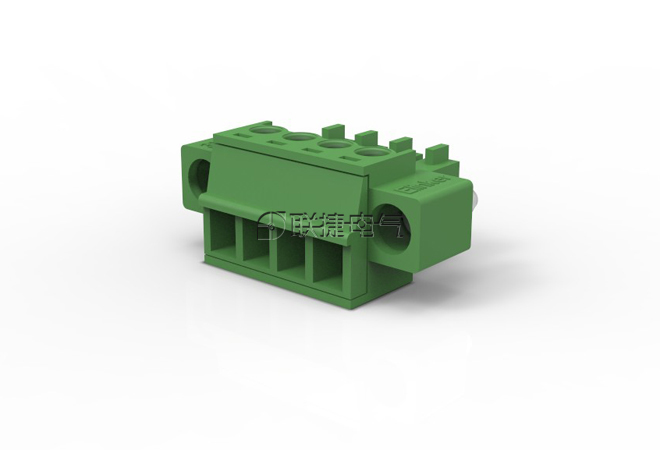

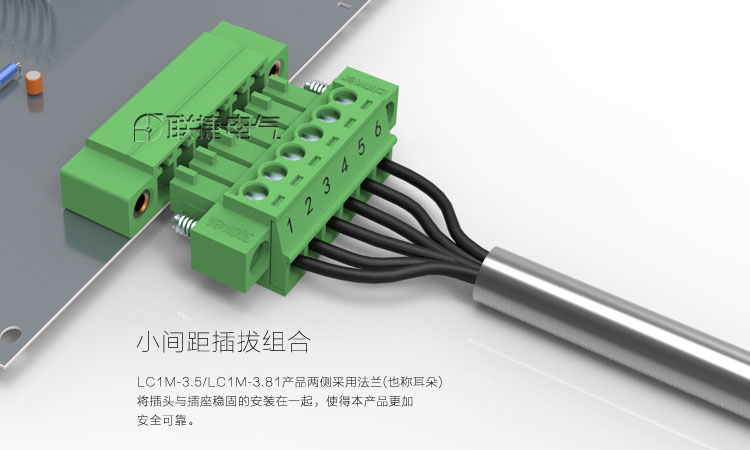

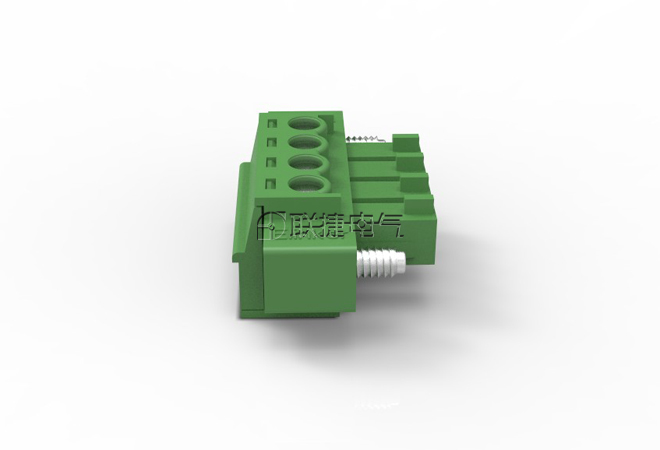

LC1M-3.5/LC1M-3.81



       优势



  间距小，节省空间；

  结构高度低；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  插头插座防错插防错位保护；





Product Attribute
[Temperature(℃):]	-40℃至120℃
[Rated voltage(V)]	160V【IEC】300V【UL】
[Rated current(A):]	8A【IEC】8A【UL】
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-0.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MC 1.5/…-STF-3.5 BL 3.50/180F MC-RA3.5H EC350VM 15EDGKM-3.5 TJ 3.5-With flange PTB350B-09 MC421-350 MC 1.5/…-STF-3.81 BCZ 3.81/180F EC381VM 15EDGKM-3.81 TJ 3.81 (With flange) PTB350B-11 MC421-381
[Material]	PA66
