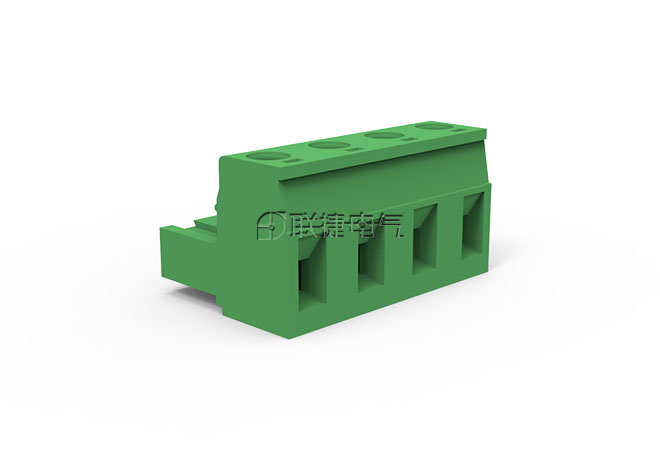

LC1-7.5/LC1-7.62



优势

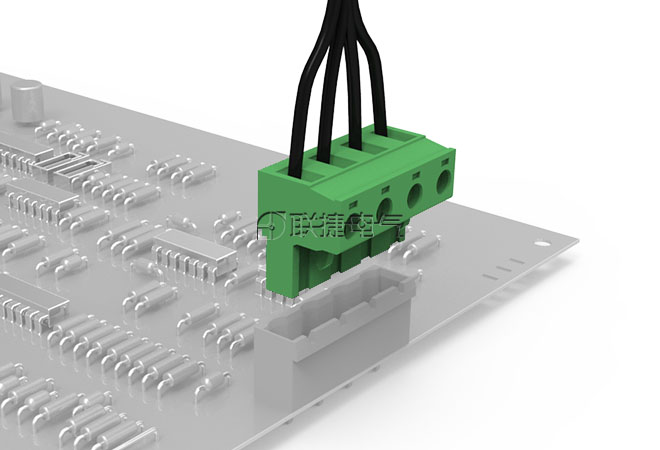

  插头插座紧密结合，节省空间；

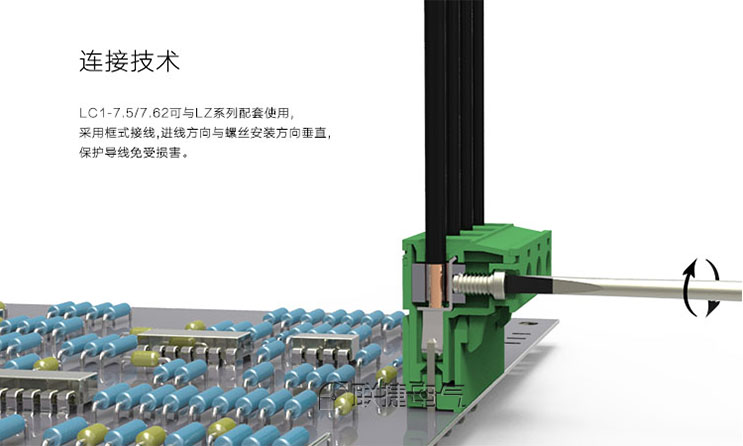

  平行进线，与螺丝拧紧方向垂直，保护导线；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

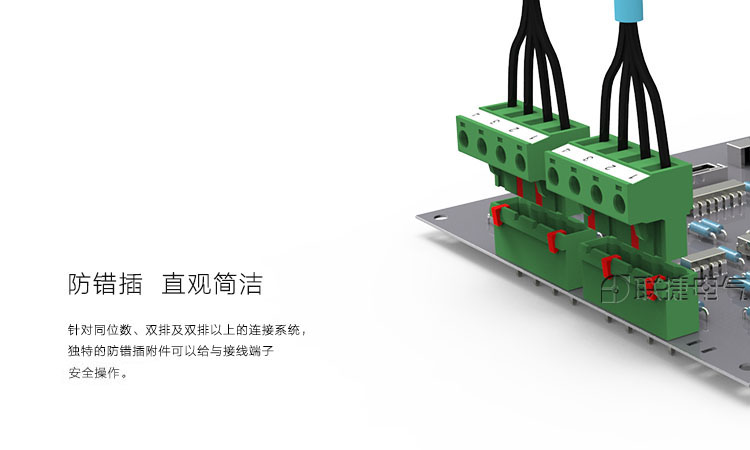

  通过防错插件对插头插座进行防错位保护。





Product Attribute
[Rated voltage(V)]	【IEC】400V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-12
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	GMSTB 2.5/…-ST BLZ 7.50/180 7ESDV 2EDGK-7.5 TJ 7.5 MC100-750 GMSTB 2.5/…-ST-7.62 BLZ 7.62/180 3ESDV 2EDGK-7.62 TJ7.62 MC100-762

Product Attribute
[Rated voltage(V)]	【IEC】400V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12【UL】30-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	6
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-12
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	GMSTB 2.5/…-ST BLZ 7.50/180 7ESDV 2EDGK-7.5 TJ 7.5 MC100-750 GMSTB 2.5/…-ST-7.62 BLZ 7.62/180 3ESDV 2EDGK-7.62 TJ7.62 MC100-762
