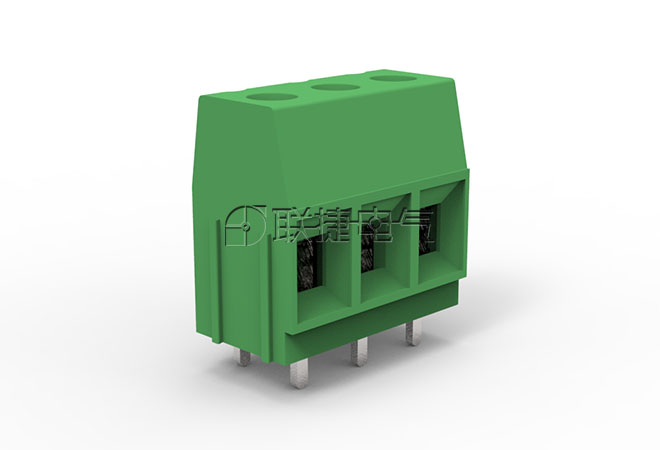

Location Home > PCB Solder Terminal > Pole 10.16/10.00 > LG1016B-10.16

Description

Property

Scene

Drawings

Packing

优势

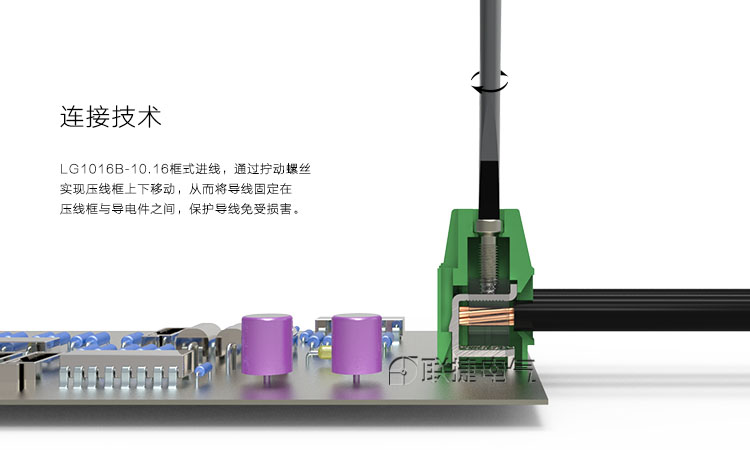

升降式压线方式；

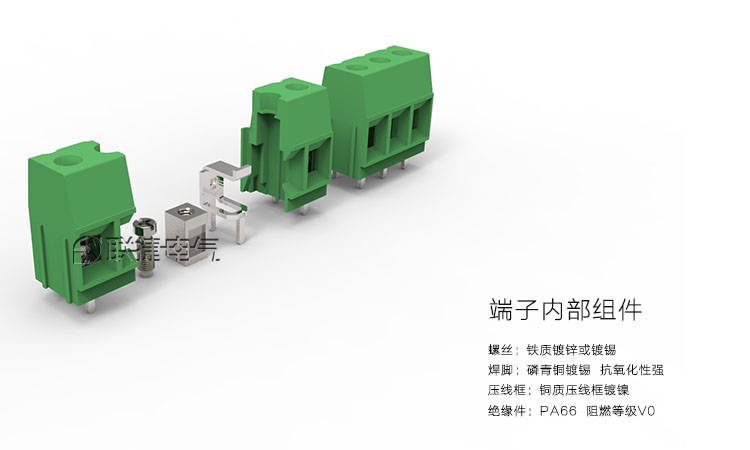

塑壳PA66，阻燃等级V0；

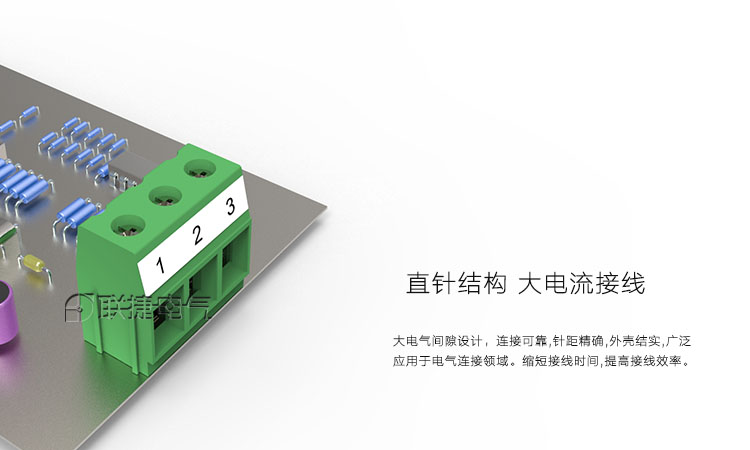

大电气间隙设计和相应隔板可满足用户高电压接入要求；

大电流产品，2位和3位产品可以任意拼接，满足不同位数要求。

Product Attribute

[Rated voltage(V)] 300

[Rated current(A):] 57

[Rated current(mm²):] 0.5-16

[Wire Size(AWG):] 26-6

[Single/multi-core diameter(mm²):] 0.14-1.5/0.14-1.0

[Maximum locking torque(Nm):] 1.2-1.5

[Screw:] M4

[Strip length(mm):] 10

[Resistant voltage(kv):] 8

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Solder Terminal

Product Attribute
[Rated voltage(V)]	300
[Rated current(A):]	57
[Rated current(mm²):]	0.5-16
[Wire Size(AWG):]	26-6
[Single/multi-core diameter(mm²):]	0.14-1.5/0.14-1.0
[Maximum locking torque(Nm):]	1.2-1.5
[Screw:]	M4
[Strip length(mm):]	10
[Resistant voltage(kv):]	8
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Solder Terminal
