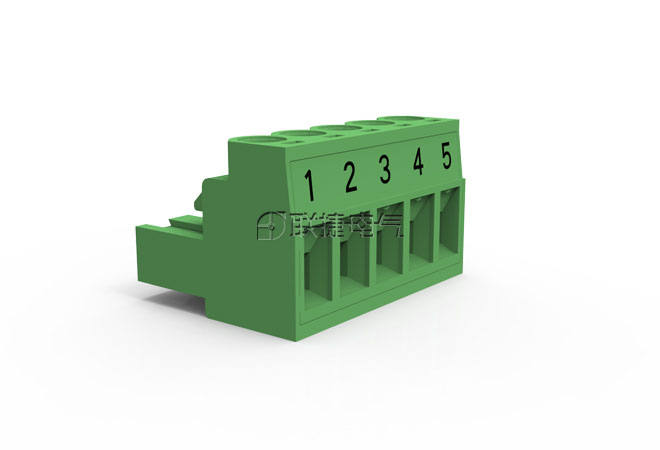

PT1-5.08

PT1-5.08

  • Click  1870
    Delivery time  3-15 days
  • Brand  Elinker
  • Download

prev next

Description

Property

Scene

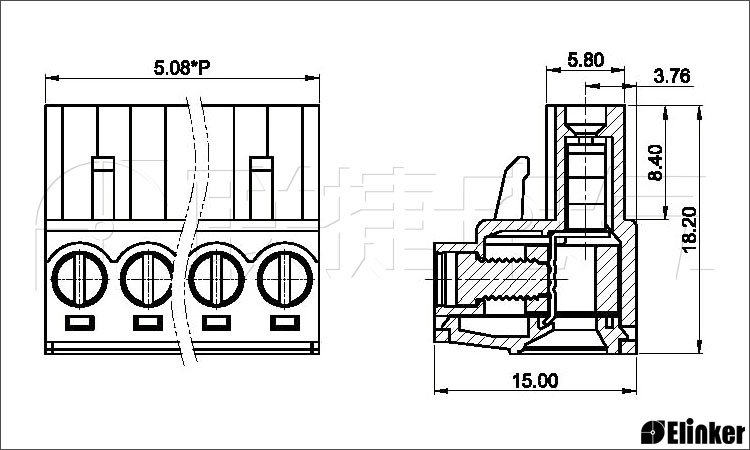

Drawings

Packing



       优势

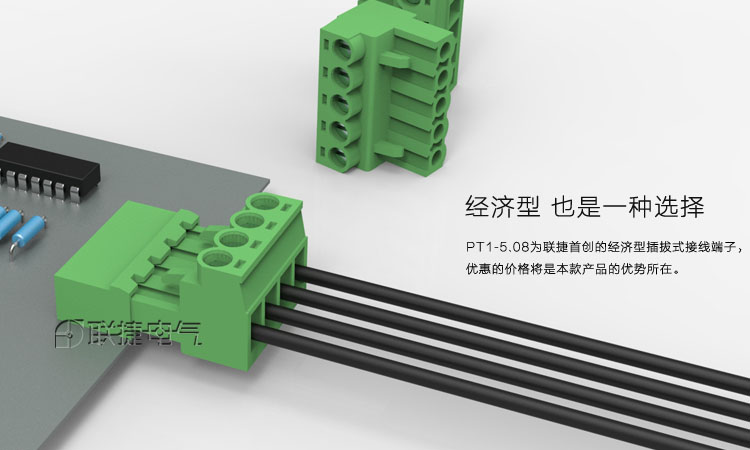

  经济型插拔端子,集功用、价格优势于一身;

  可与多种插座匹配,应用范围广泛

  接线容量大,可以连接截面积为2.5mm²的柔性导线

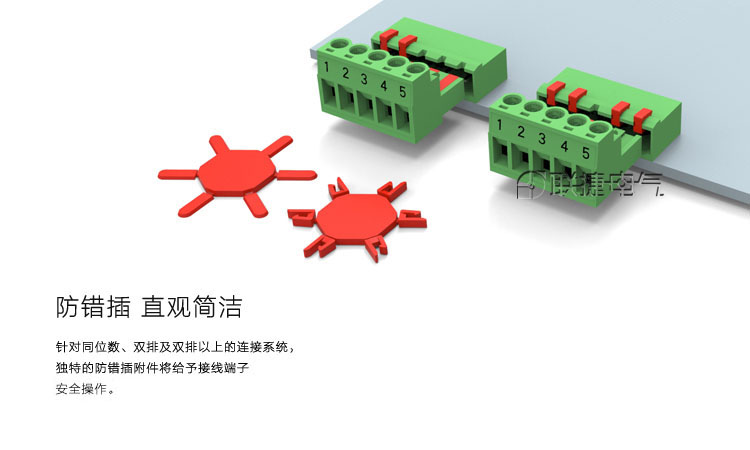

  插头插座防错插防错位保护



Product Attribute
[Maximum locking torque] 0.5-0.6
[Rated voltage(V)] 320V

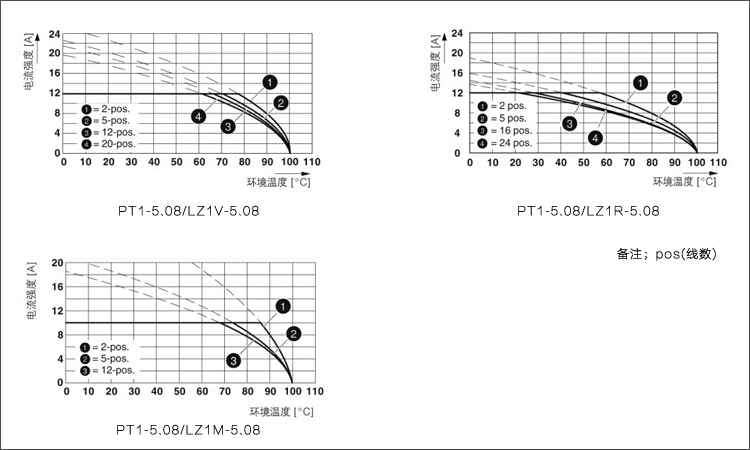

[Rated current(A):] 17.5A
[Rated current(mm²):] 2.5
[Wire Size(AWG):] 24-12
[Single/multi-core diameter(mm²):] 0.2-2.5
[Maximum locking torque(Nm):] 0.5-0.6
[Screw:] M3
[Strip length(mm):] 7
[Resistant voltage(kv):] 4
[Insulation Resistance:] PA/V0
[Terminal Block:] pluggable terminal/PCB terminal block







Product Attribute
[Maximum locking torque] 0.5-0.6
[Rated voltage(V)] 320V
[Rated current(A):] 17.5A
[Rated current(mm²):] 2.5
[Wire Size(AWG):] 24-12
[Single/multi-core diameter(mm²):] 0.2-2.5
[Maximum locking torque(Nm):] 0.5-0.6
[Screw:] M3
[Strip length(mm):] 7
[Resistant voltage(kv):] 4
[Insulation Resistance:] PA/V0
[Terminal Block:] pluggable terminal/PCB terminal block
