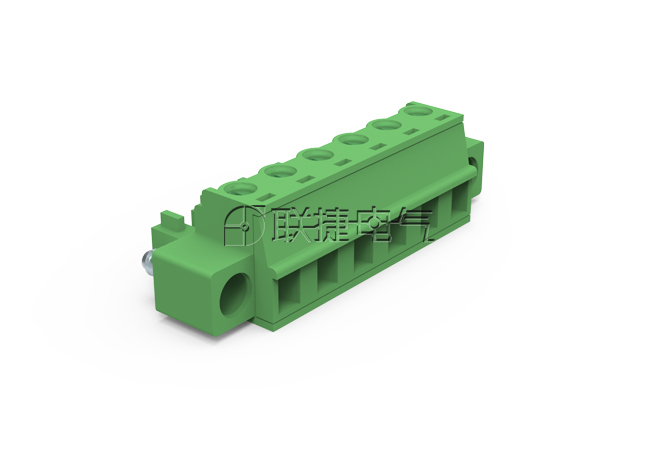

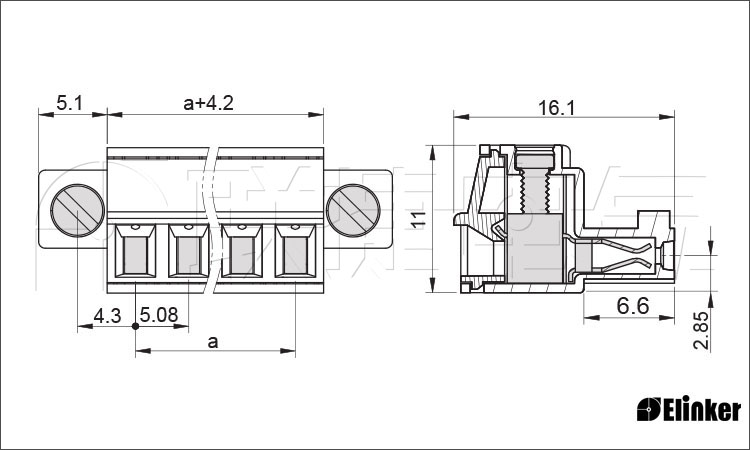

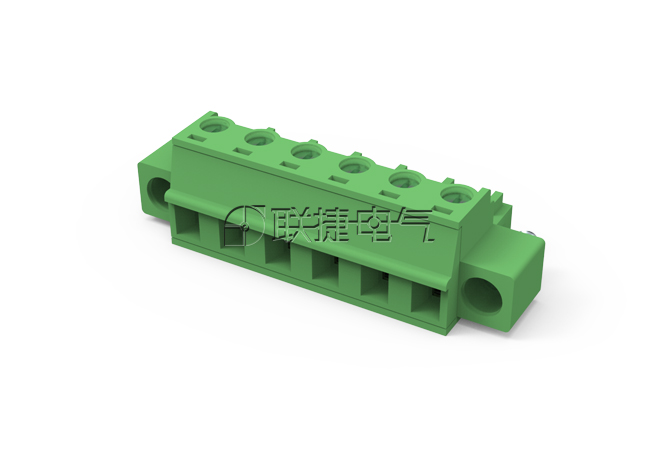

LC1XM-5.0/LC1XM-5.08





优势



  插头插座紧密结合，节省空间；

  平行进线，法兰固定，构成抗震连接；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  通过防错插件对插头插座进行防错位保护。





Product Attribute
[Rated voltage(V)]	250
[Rated current(A):]	8
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	28-16
[Single/multi-core diameter(mm²):]	0.08-1.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA
[The same model]	MC 1,5/...-STF-5,08 EC508VM 15EDGKM-5.08 VR 5.08-Contact on UP side(W/F) MC421-508
