Assembly

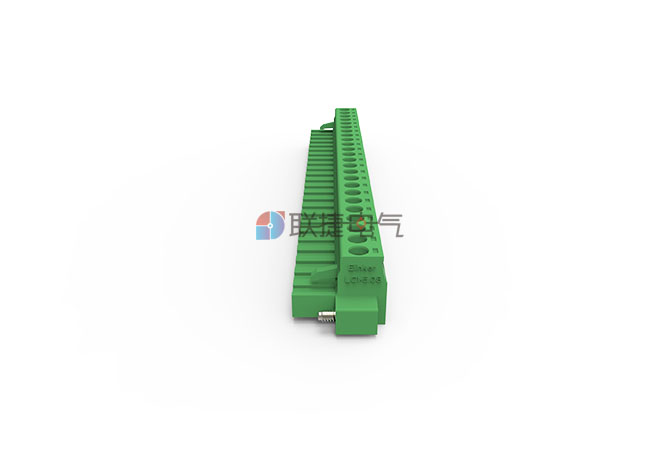

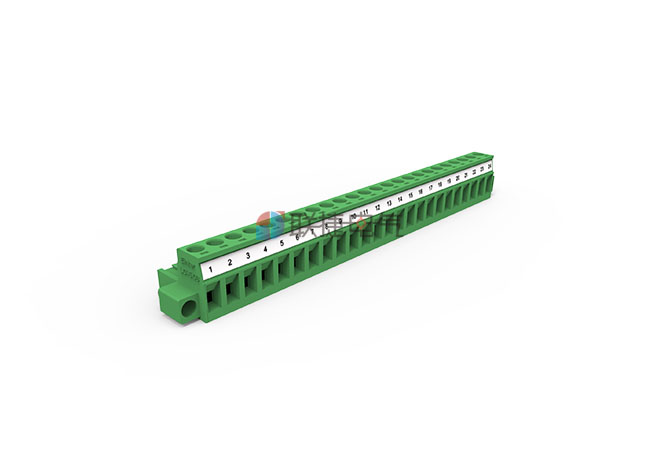

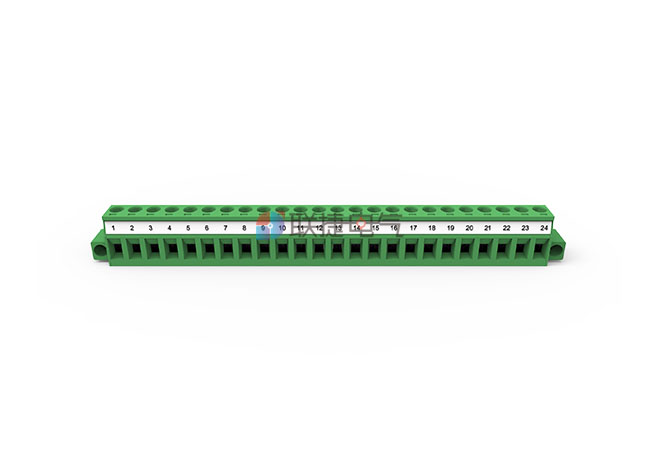

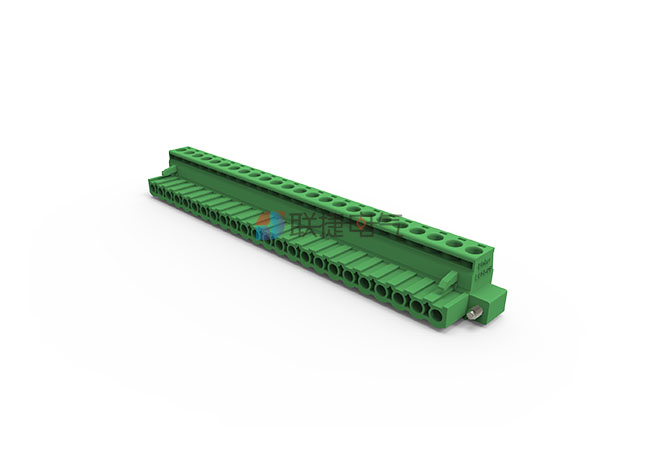

LZ1RM-5.08-24P-140

LZ1VM-5.08-24P-140

Description

Property

Scene

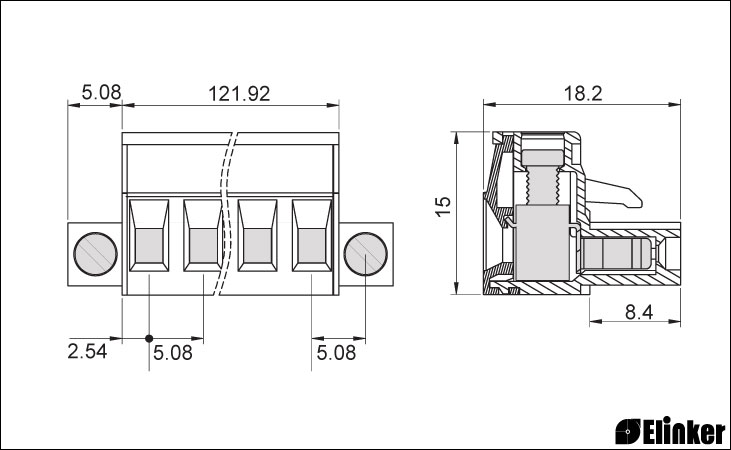

Drawings

Packing

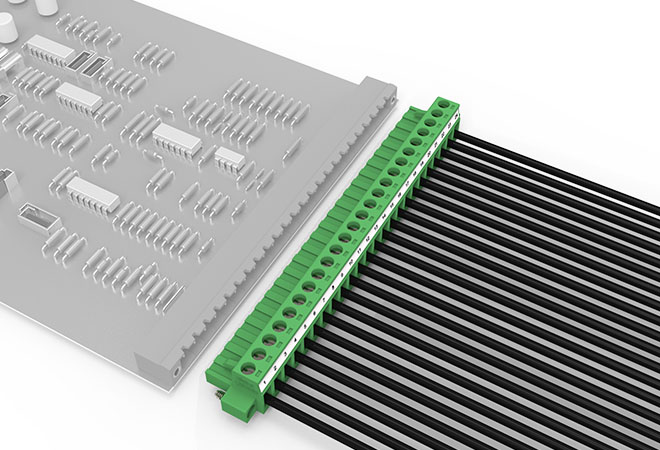

插拔式接线端子压线方式示意图

将导线置于压线框内,拧紧螺丝,压线框随着螺丝拧紧的方向向上移动,最终固定.





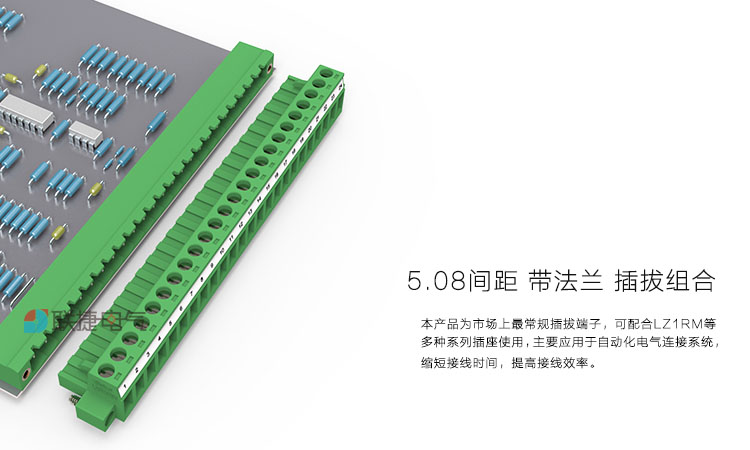

   优势

  法兰固定，安装牢固；

  结构高度低，便于在狭小空间安装；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

  插头插座防错插防错位保护，避免接线错误。

点击访问：     YL1-5.08   PT1-5.08

Product Attribute

[Rated current(A)] 17.5A【IEC】15A【UL】

[Temperature(℃):] -40℃~120℃

[Rated voltage(V)] 320V【IEC】300V【UL】

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 24-12

[Single/multi-core diameter(mm²):] 0.2-2.5

[Maximum locking torque(Nm):] 0.5-0.6

[Screw:] M3

[Strip length(mm):] 7

[Resistant voltage(kv):] 4

[Insulation Resistance:] V0

[Poles(P):] 2-4

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] MSTB 2,5/24 STF 5.08 MSTB2.5/24STF5.08 1862929 BLZP 5.08HC/24/180F SN OR BX BLZP5.08HC/24/180F 1944310000 BLZP5.08HC/24/180F SN BK BX 1944550000 2ESDVM-24P 2ESDVM24P 2EDGKM-5.08-24P-14 2EDGKM-5.08-24P TJ-5.08-24P TJ2451520000G TJ-D.F/5.05-24P 24 POS TERMI-BLOK PLUG RT ANGLE 24POSTERMI-BLOKPLUGRTANGLE 2-796859-4 AKZ950/24F-5.08-绿色 50950242021D PTB750B-04-2-24-3 MC101-50824 F75-6-5.08-24P F756E2410051 PCB 连接器 8213 B / 24 F 25.323.2453.0 PCB 连接器 8213 B / 24 F OB 8213B/24FOB 25.323.5453.0

[Material] PA66

Product Attribute
[Rated current(A)]	17.5A【IEC】15A【UL】
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	320V【IEC】300V【UL】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	V0
[Poles(P):]	2-4
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2,5/24 STF 5.08 MSTB2.5/24STF5.08 1862929 BLZP 5.08HC/24/180F SN OR BX BLZP5.08HC/24/180F 1944310000 BLZP5.08HC/24/180F SN BK BX 1944550000 2ESDVM-24P 2ESDVM24P 2EDGKM-5.08-24P-14 2EDGKM-5.08-24P TJ-5.08-24P TJ2451520000G TJ-D.F/5.05-24P 24 POS TERMI-BLOK PLUG RT ANGLE 24POSTERMI-BLOKPLUGRTANGLE 2-796859-4 AKZ950/24F-5.08-绿色 50950242021D PTB750B-04-2-24-3 MC101-50824 F75-6-5.08-24P F756E2410051 PCB 连接器 8213 B / 24 F 25.323.2453.0 PCB 连接器 8213 B / 24 F OB 8213B/24FOB 25.323.5453.0
[Material]	PA66

Product Attribute
[Rated current(A)]	17.5A【IEC】15A【UL】
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	320V【IEC】300V【UL】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	V0
[Poles(P):]	2-4
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2,5/24 STF 5.08 MSTB2.5/24STF5.08 1862929 BLZP 5.08HC/24/180F SN OR BX BLZP5.08HC/24/180F 1944310000 BLZP5.08HC/24/180F SN BK BX 1944550000 2ESDVM-24P 2ESDVM24P 2EDGKM-5.08-24P-14 2EDGKM-5.08-24P TJ-5.08-24P TJ2451520000G TJ-D.F/5.05-24P 24 POS TERMI-BLOK PLUG RT ANGLE 24POSTERMI-BLOKPLUGRTANGLE 2-796859-4 AKZ950/24F-5.08-绿色 50950242021D PTB750B-04-2-24-3 MC101-50824 F75-6-5.08-24P F756E2410051 PCB 连接器 8213 B / 24 F 25.323.2453.0 PCB 连接器 8213 B / 24 F OB 8213B/24FOB 25.323.5453.0
[Material]	PA66
