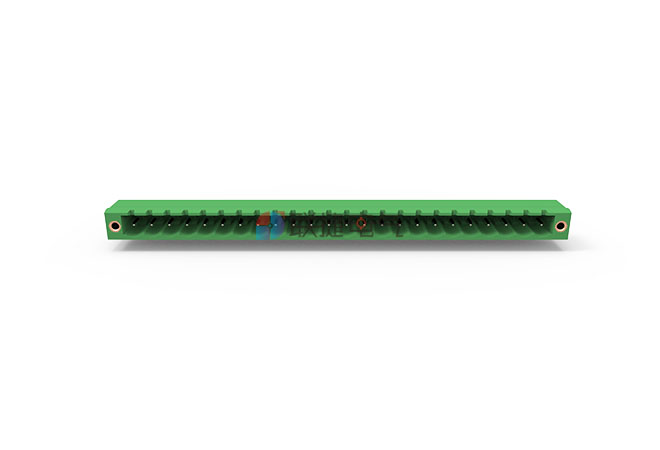

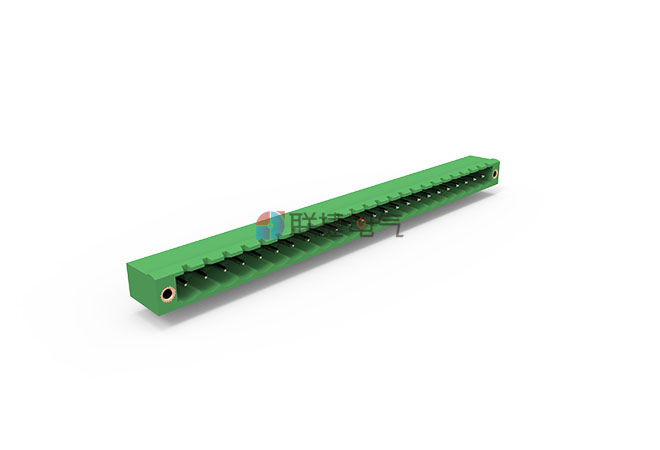

LZ1RM-5.08-24P-140

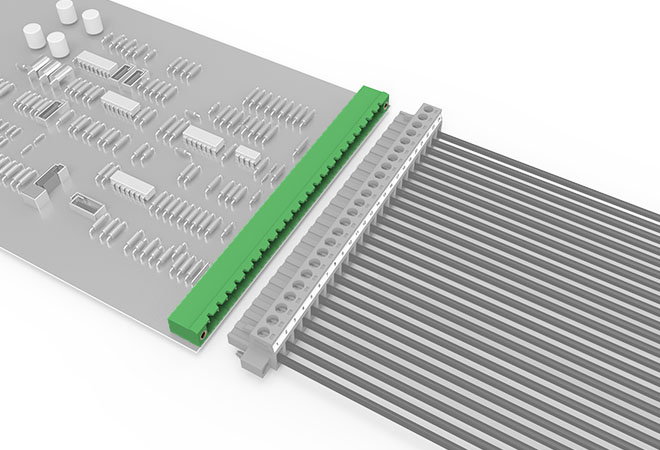

插拔式接线端子波峰焊示意图   PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.



优势





  插头插座紧密结合，节省空间；

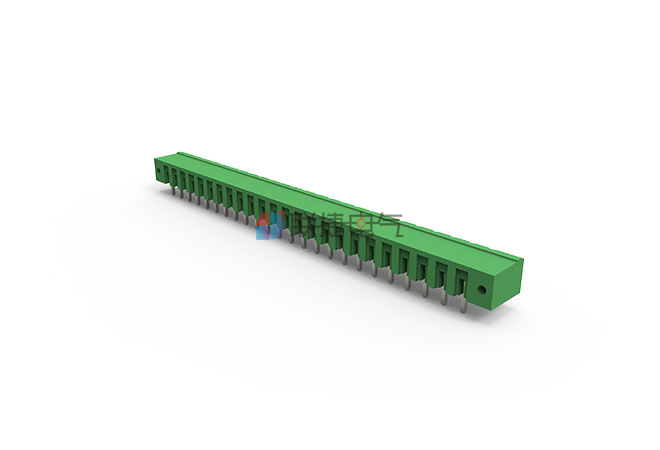

  焊针呈90°，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

  带法兰，连接安全牢固。



Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2,5/24-GF-5,08 MSTB2.5/24-GF-5.08 1712759 SL 5.08HC/24/90F 3.2SN OR BX SL5.08HC/24/90F 1149340000 SL 5.08HC/24/90F 3.2SN BK BX 1150330000 2EHDRM-24P 2EHDRM24P 2EDGRM-5.08-24P-14 2EDGRM-5.08-24P OQ-5.08-24P-90D W/F OQ2455510000G OQ-F/90D-5.08-24P 24 POS TERMI-BLOK HDR RT ANGLE 24POSTERMI-BLOKHDRRTANGLE 2-796866-4 STLZ950/24F-5.08-H-绿色 50950246021D PTB750S-04-2-24-3 ME050-50824 F85-8-5.08-24P F858E2400051 PCB排针 8213 S / 24 WF OB 8213S/24WFOB 25.358.5453.0
