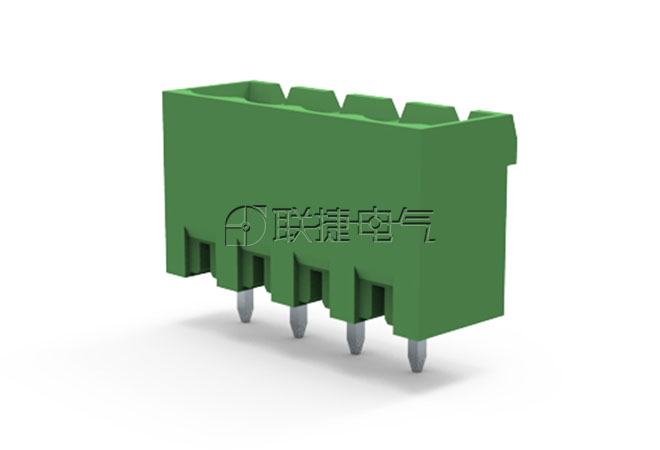

Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -5.08/5.00 > LZ1V-5.0/LZ1V-5.08

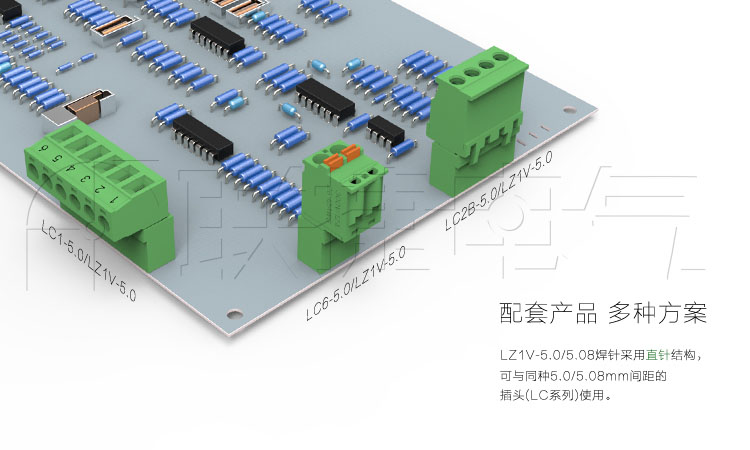

Assembly

LC1-5.0/LC1-5.08

LC2A-5.0/LC2A-5.08

LZ5X-5.0/LZ5X-5.08

LC2B-5.0/LC2B-5.08

Description

Property

Scene

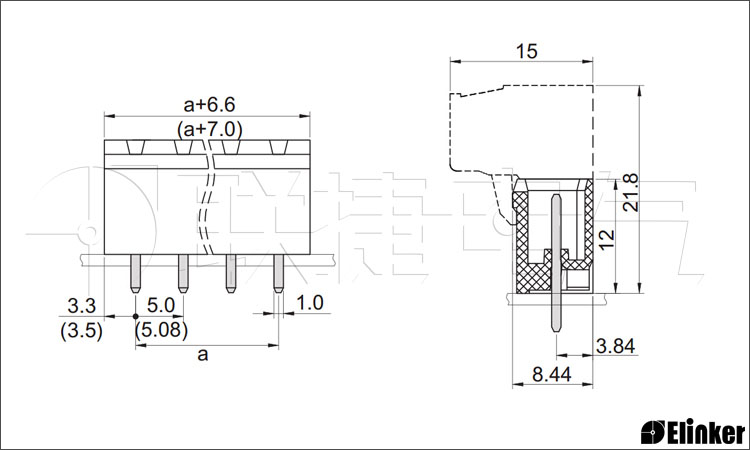

Drawings

Packing

优势

插座间距5.0mm/5.08mm；

接线容量大，可以连接截面积为2.5mm²的柔性导线；

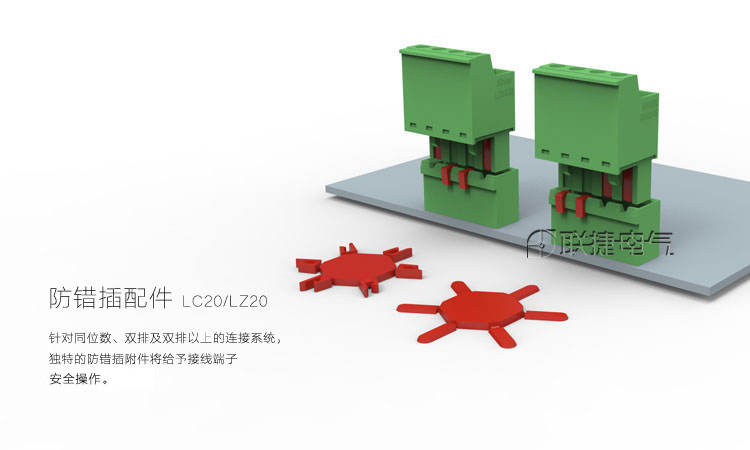

插头插座防错插防错位保护；

Product Attribute

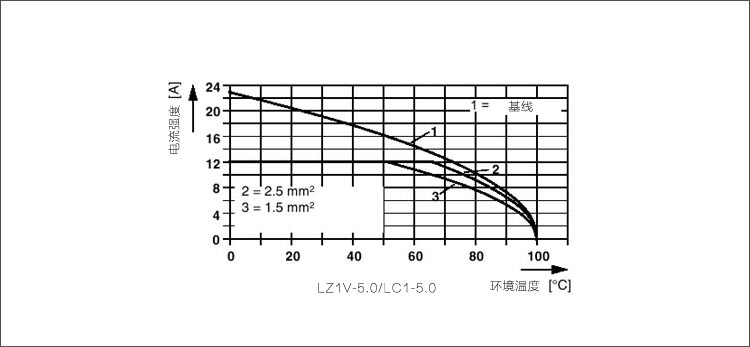

[Rated current(A)] 17.5A【IEC】15A【UL】

[Rated voltage(V)] 320V【IEC】300V【UL】

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal

Product Attribute
[Rated current(A)]	17.5A【IEC】15A【UL】
[Rated voltage(V)]	320V【IEC】300V【UL】
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal

Product Attribute
[Rated current(A)]	17.5A【IEC】15A【UL】
[Rated voltage(V)]	320V【IEC】300V【UL】
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal
