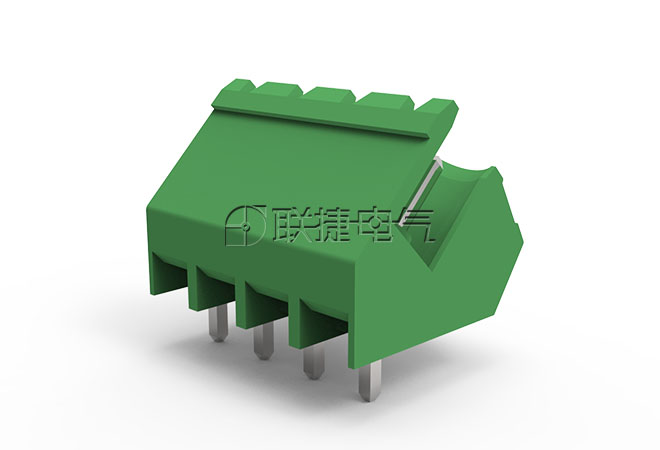

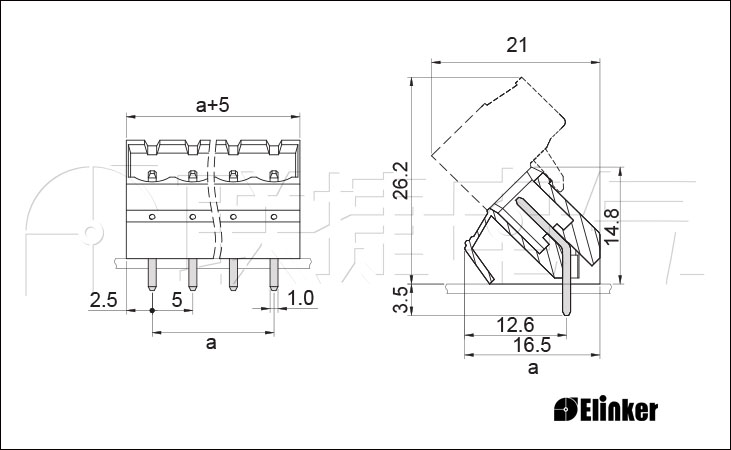

LZ2DK-5.0/LZ2DK-5.08



优势

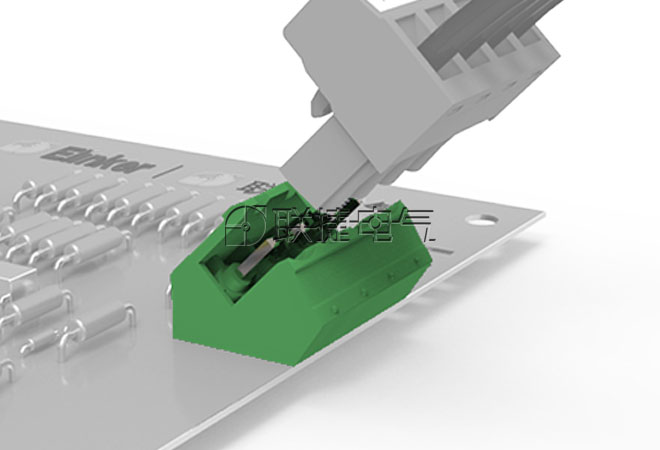

  插座两侧开口，方便多位数端子连接；

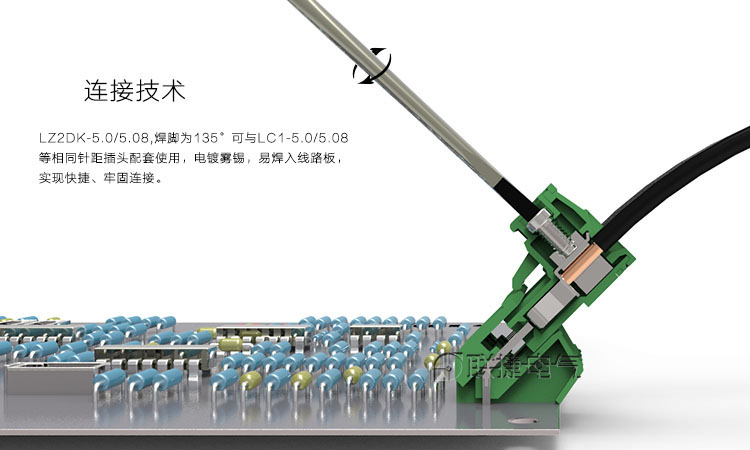

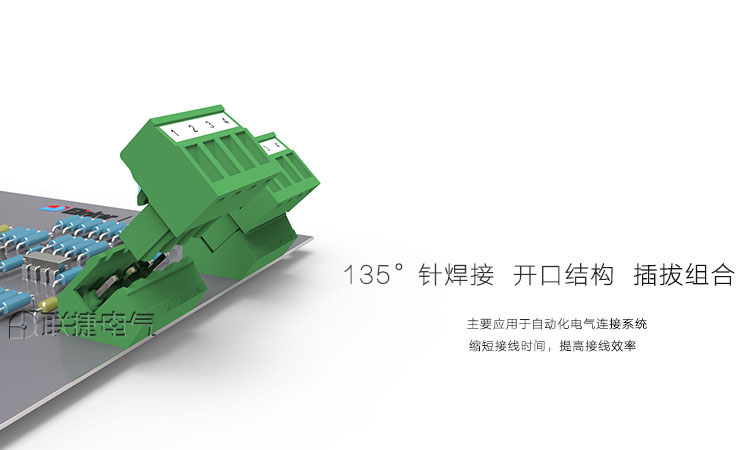

  焊针呈135°，为多角度连接提供可能，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

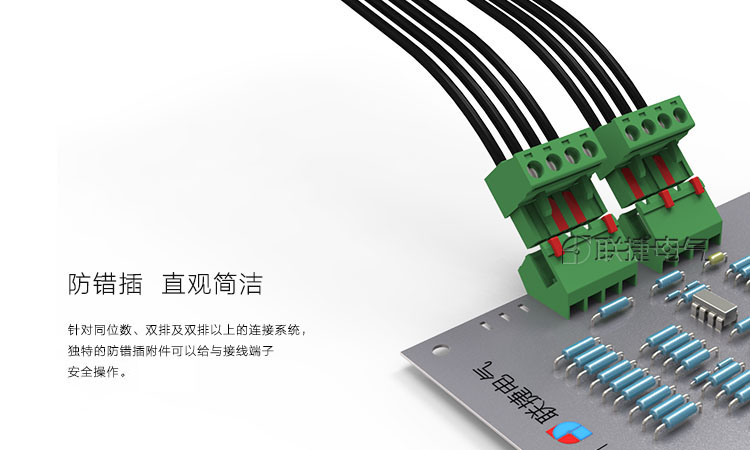

  自带防错插错位插件，保障电气设备准确安全连接。



Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】320V【UL】300V

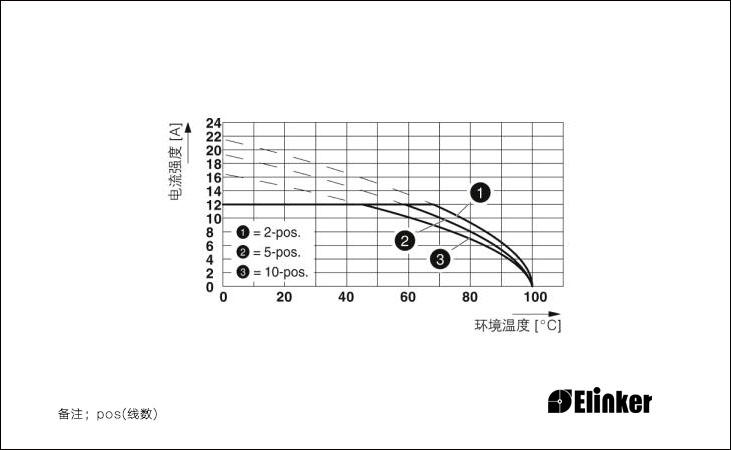

[Rated current(A):]	【IEC】17.5A【UL】15A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal
