Location Home > PCB Pluggable terminal > LZ 2-24P > LZ1VM-5.08(2-24P) > LZ1VM-5.08-24P-140

Assembly

LC2BM-5.0/LC2BM-5.08

LC3M-5.0/LC3M-5.08

LC4M-5.0/LC4M-5.08

LC5M-5.0/LC5M-5.08

Description

Property

Scene

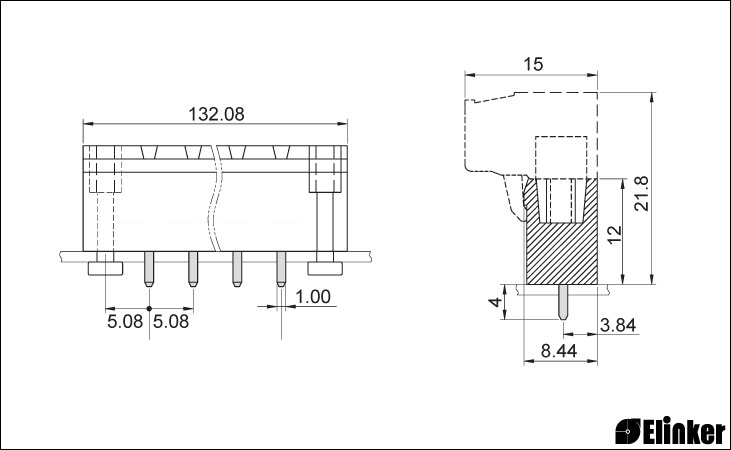

Drawings

Packing

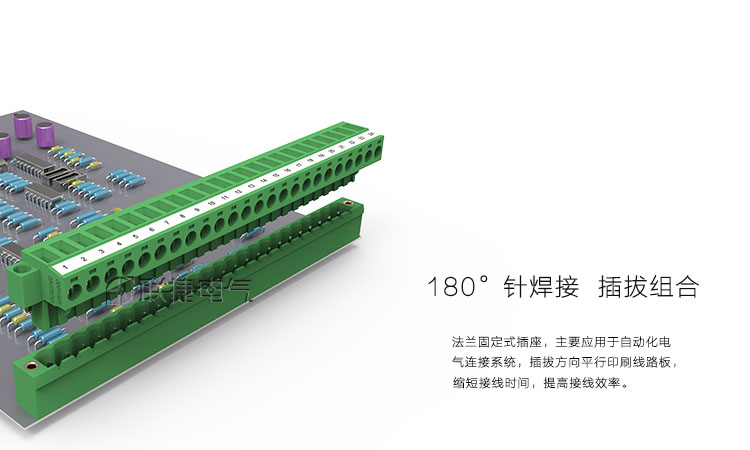

插拔式接线端子波峰焊示意图

PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.

优势

插头插座紧密结合，节省空间；

焊针呈180°，电镀雾锡，可焊接于线路板；

可定制，2-24P满足不同接线环境的需要；

带法兰，连接安全牢固。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】12A【UL】15A

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] MSTBV 2,5/24-GF-5,08 MSTBV2.5/24-GF-5.08 SL 5.08HC/24/180F 3.2SN OR BX SL5.08HC/24/180F 1147850000 SL 5.08HC/24/180F 3.2SN BK BX 1149190000 2EHDVM-24P 2EHDVM24P 2EDGVM-5.08-24P-14 2EDGVM-5.08-24P OQ-5.08-24P-180D W/F OQ2455500000G OQ-F/180D-5.08-24P 24 POS TERMI-BLOK HDR VERTICAL 24POSTERMI-BLOKHDRVERTICAL 2-796867-4 STLZ950/24F-5.08-V-绿色 50950246121D PTB750S-05-2-24-3 ME060-50824 F85-6-5.08-24P F856E2400051 PCB排针 8213 S / 24 GF OB 8213S/24GFOB 25.359.5453.0
