LZ3VHM-3.5/LZ3VHM-3.81_Pole -3.81/3.50_Pluggable terminal(Header)_PCB Pluggable terminal_terminal block-pcb terminal blocks-terminal block manufacturers

Product

Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -3.81/3.50 > LZ3VHM-3.5/LZ3VHM-3.81

Assembly

LC1M-3.5/LC1M-3.81

LC2AM-3.5/LC2AM-3.81

LC2BM-3.5/LC2BM-3.81

LC1M-3.81-3P-140

Description

Property

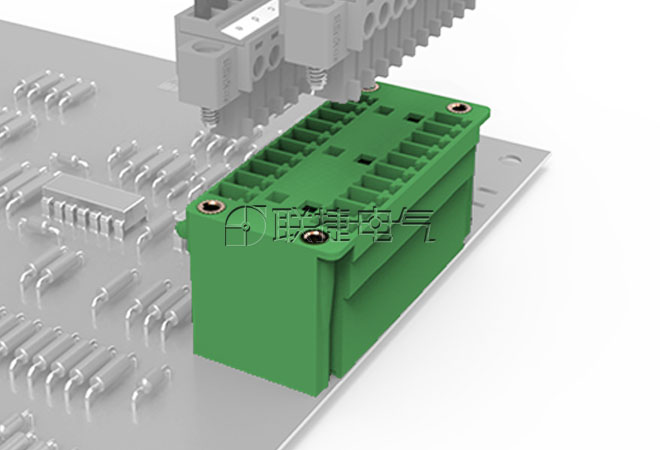

Scene

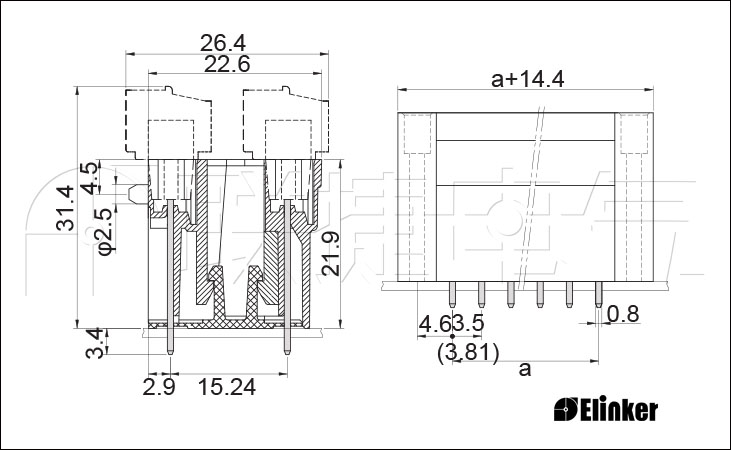

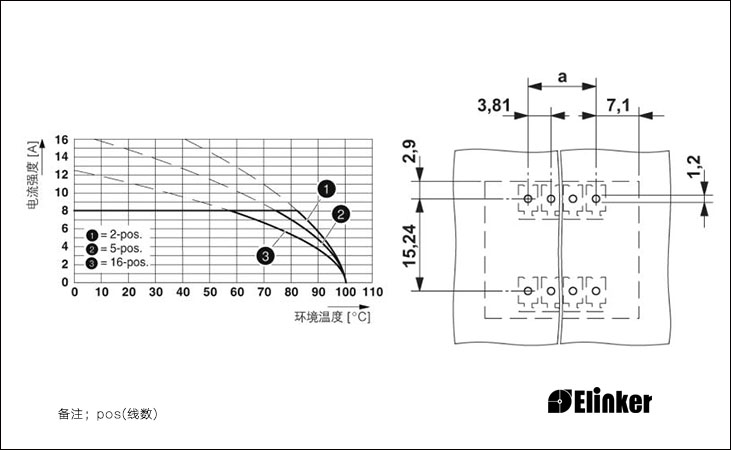

Drawings

Packing

优势

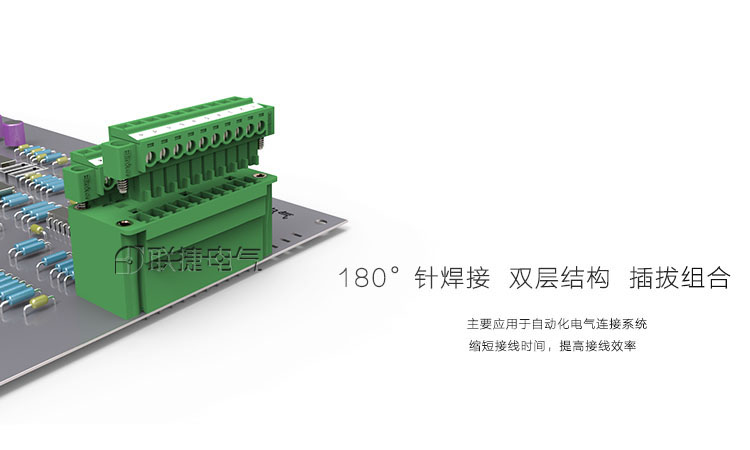

双层插座，满足不同电气设备连接需求；

可定制，2-24P任意选择；

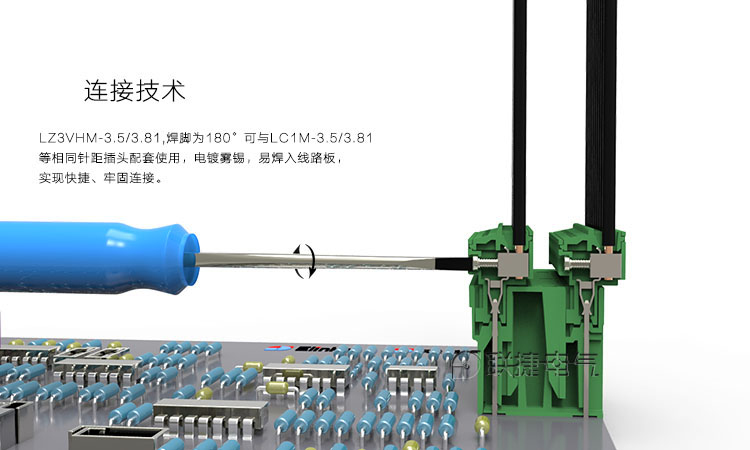

焊针呈180°，电镀雾锡，可焊接于线路板；

法兰固定，保障电气设备准确安全连接。

Product Attribute

[Rated voltage(V)] 【IEC】160V【UL】300V

[Rated current(A):] 【IEC】8A【UL】8A

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24

Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
