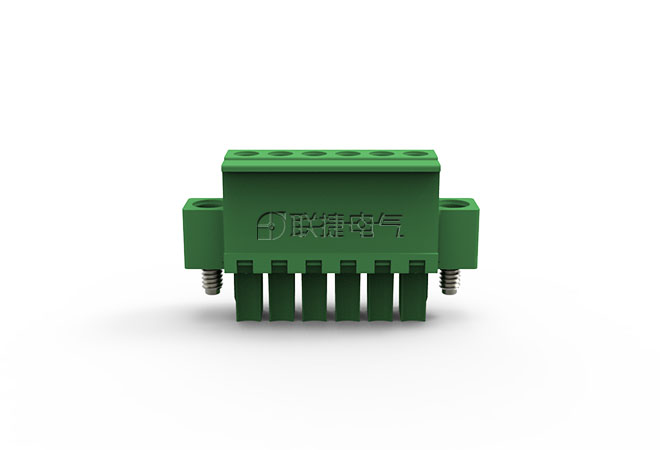

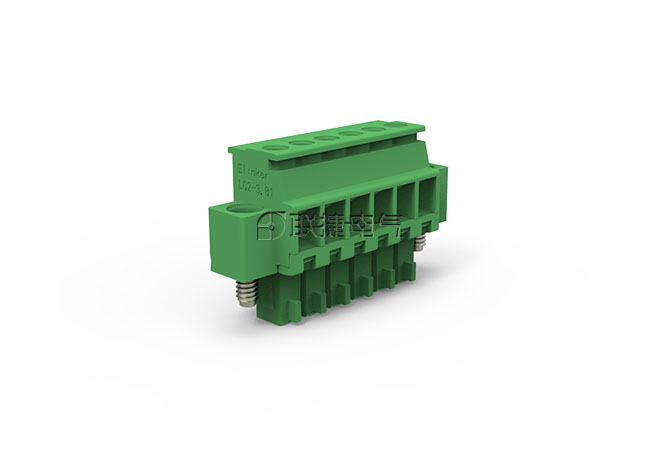

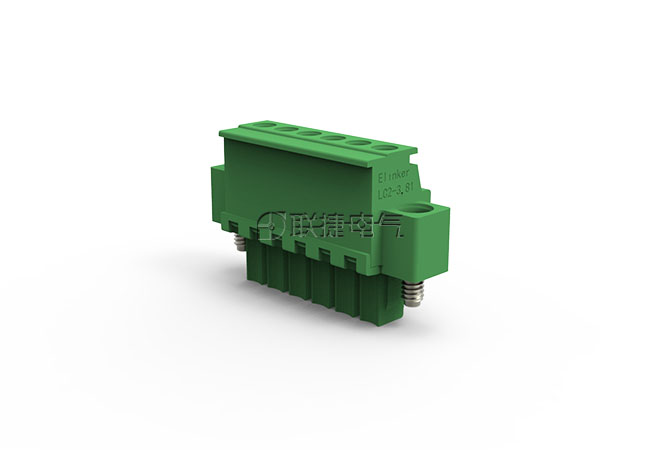

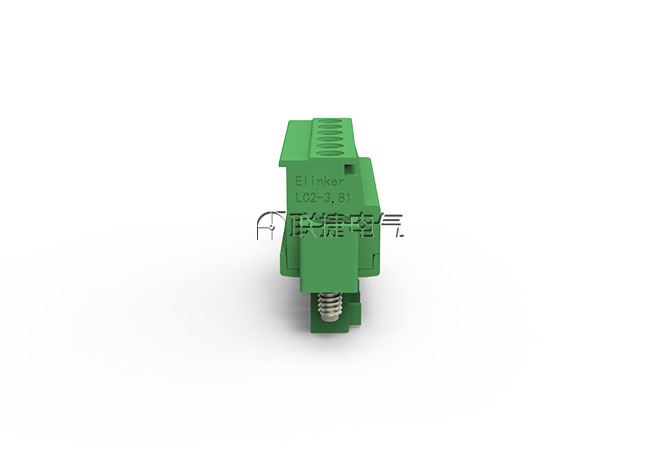

LC2AM-3.5/LC2AM-3.81





优势

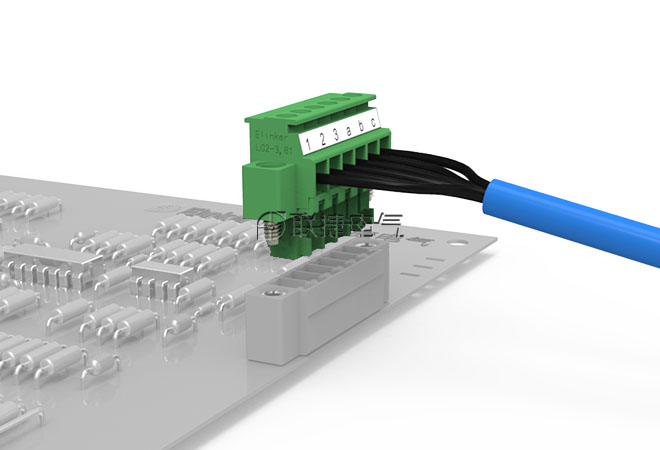

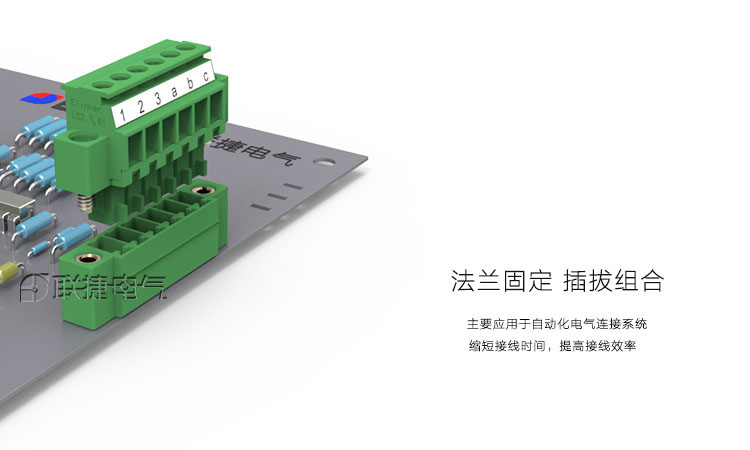

  插入方向垂直于导线，插头插座紧密结合，节省空间；

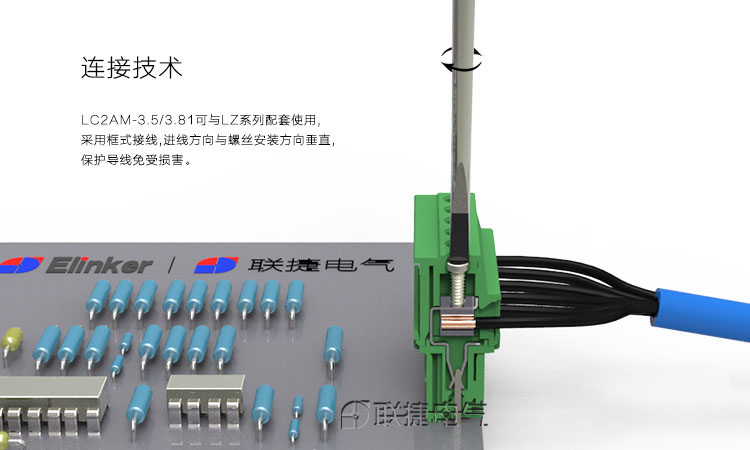

  平行进线，与螺丝拧紧方向垂直，保护导线；

  可以连接截面积为1.5mm²的柔性导线；

  结构高度低，连接紧凑。





Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V

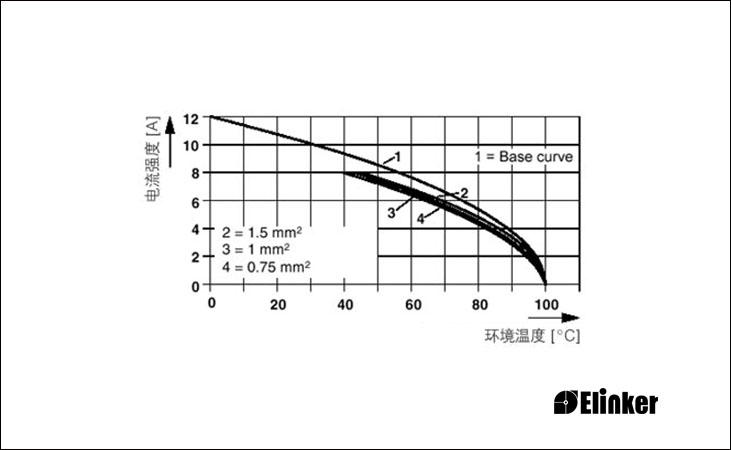

[Rated current(A):]	【IEC】8A【UL】8A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	【IEC】28-16【UL】30-14
[Single/multi-core diameter(mm²):]	0.08-1.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MCVR 1.5/...-STF-3.5 BL 3.50/90F EC350RM 15EDGKAM-3.5 TS3.5-C W/F PTB350B-17 MC521-350 MCVR 1.5/..-STF-3.81 BCZ 3.81/90F EC381RM 15EDGKAM-3.81 TS3.81-C W/F PTB350B-07 MC521-381

Product Attribute
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Rated current(mm²):]	1.5
[Wire Size(AWG):]	【IEC】28-16【UL】30-14
[Single/multi-core diameter(mm²):]	0.08-1.5
[Maximum locking torque(Nm):]	0.22-0.25
[Screw:]	M2
[Strip length(mm):]	7
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MCVR 1.5/...-STF-3.5 BL 3.50/90F EC350RM 15EDGKAM-3.5 TS3.5-C W/F PTB350B-17 MC521-350 MCVR 1.5/..-STF-3.81 BCZ 3.81/90F EC381RM 15EDGKAM-3.81 TS3.81-C W/F PTB350B-07 MC521-381
