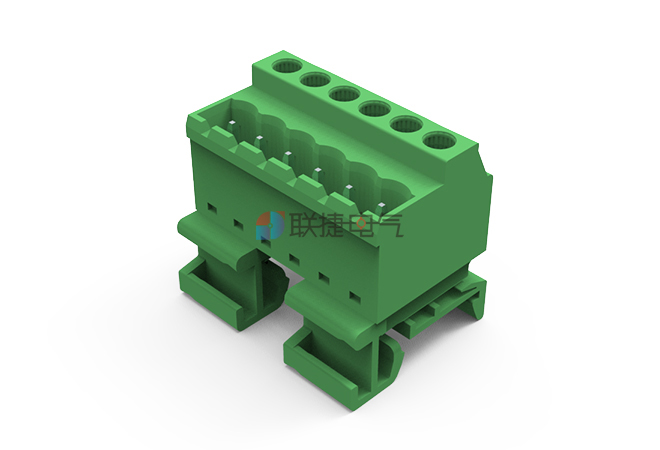

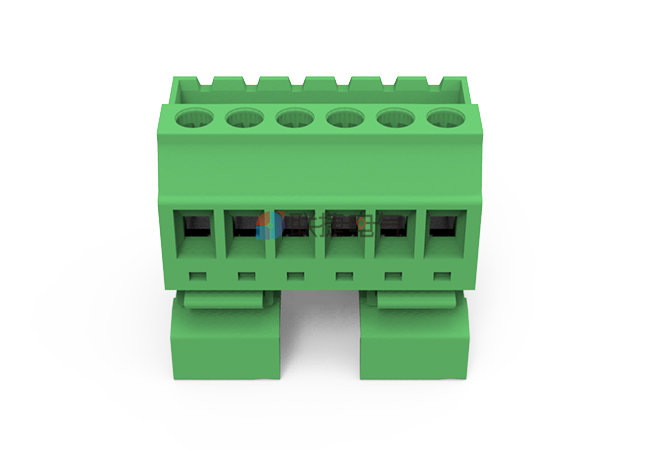

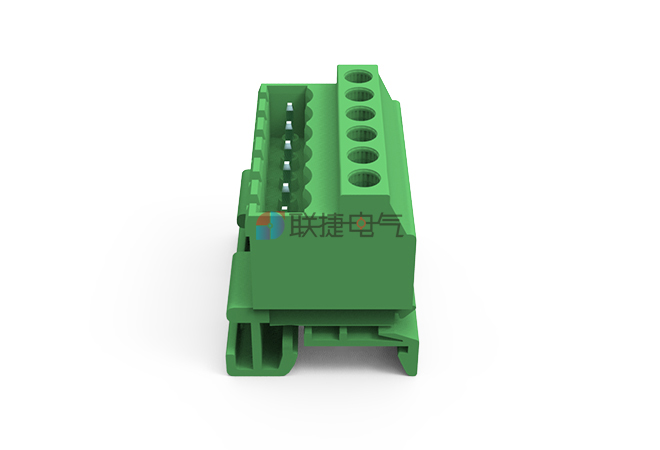

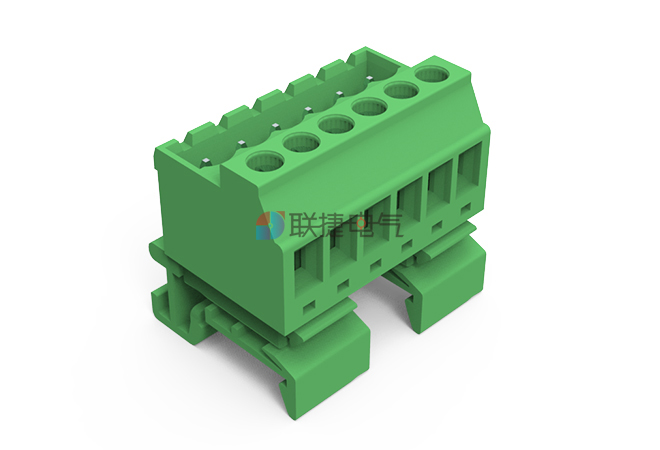

LC19Y-5.08





优势

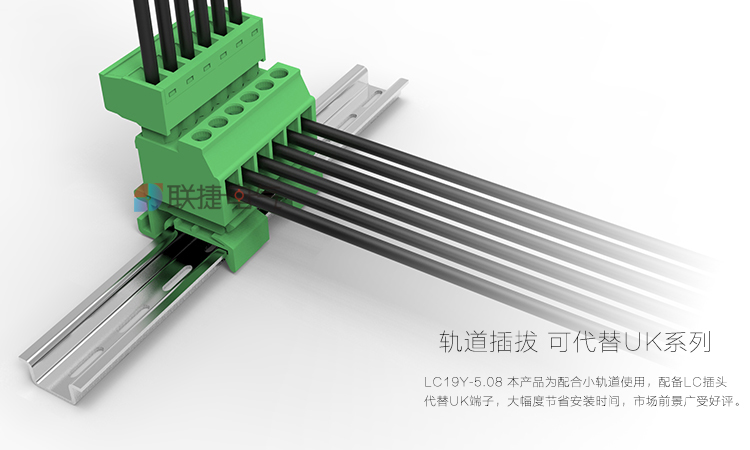

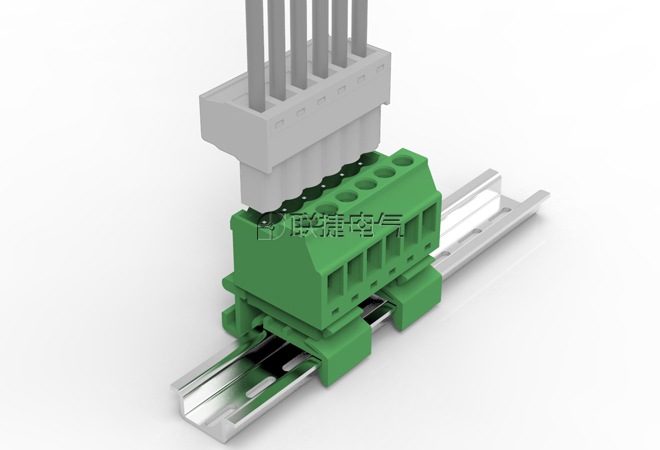

  带通用安装脚，可安装于小导轨；

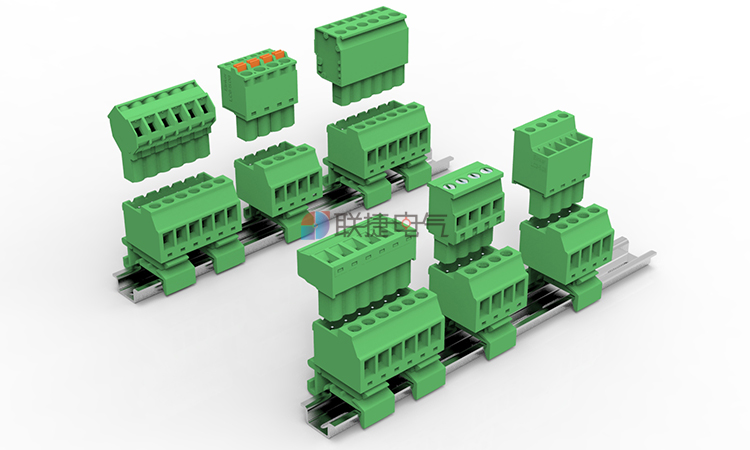

  可与LC1/LC2等带插头产品配合使用；

  可以连接截面积为2.5mm²的柔性导线；

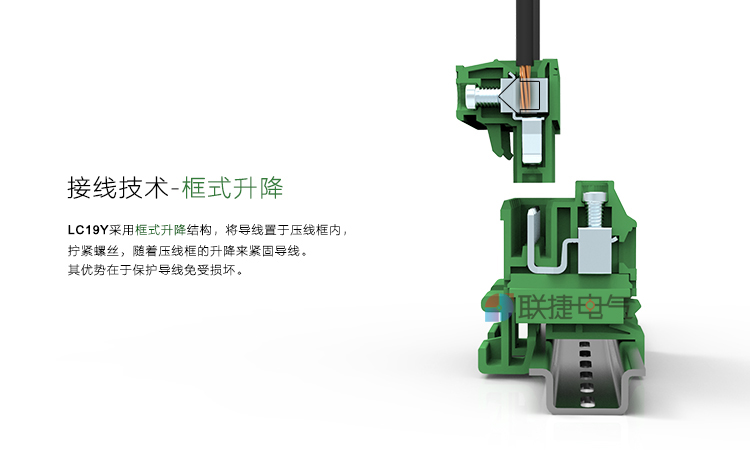

  框式接线，安全可靠。

Product Attribute
[Rated current(A)]	300V【IEC】11A【IEC】
[Rated voltage(V)]	320V【IEC】15A【IEC】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
