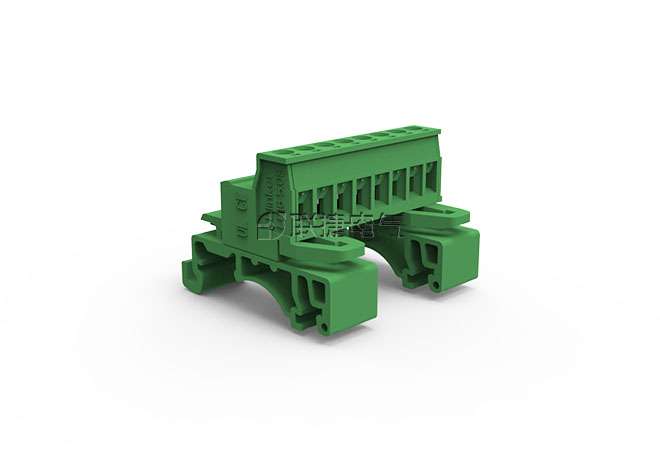

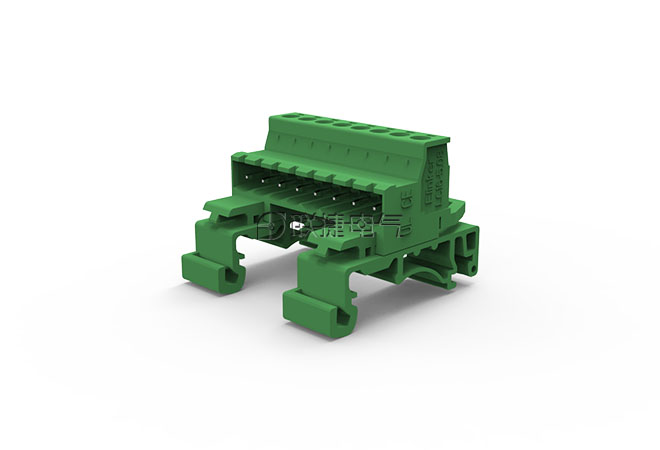

LC16-5.0/LC16-5.08



优势

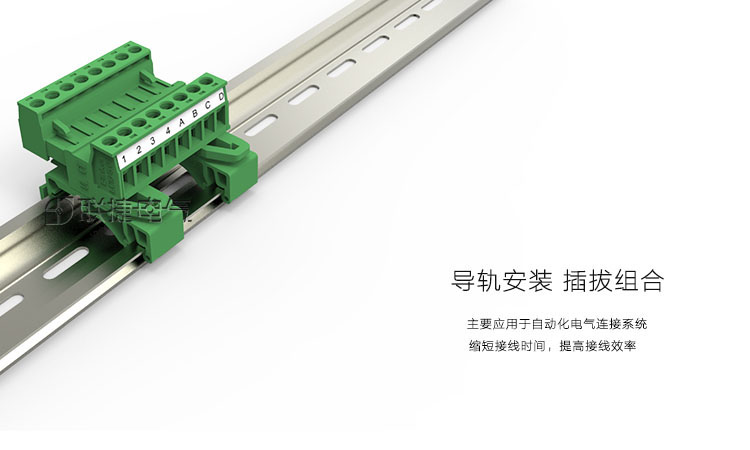

  带通用安装脚，可安装于标准导轨；

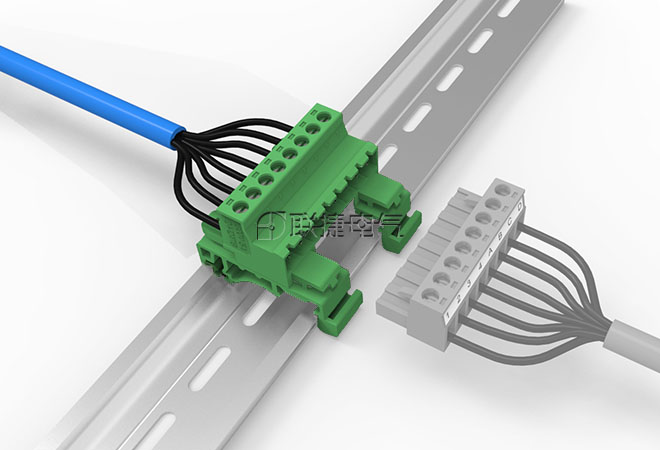

  可与LC1/LC2等插头产品配合使用；

  可以连接截面积为2.5mm²的柔性导线；

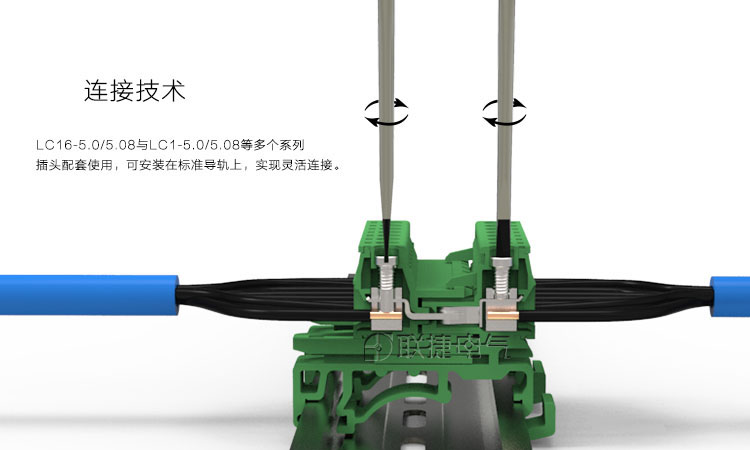

  框式接线，安全可靠。



Product Attribute
[Rated voltage(V)]	【IEC】250V 【UL】300V
[Rated current(A):]	【IEC】12A 【UL】12A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12 【UL】30-12
[Single/multi-core diameter(mm²):]	0.25-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	SLS 5.08TB KF35 2EDG-UVKM-5.08

Product Attribute
[Rated voltage(V)]	【IEC】250V 【UL】300V
[Rated current(A):]	【IEC】12A 【UL】12A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	【IEC】24-12 【UL】30-12
[Single/multi-core diameter(mm²):]	0.25-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	SLS 5.08TB KF35 2EDG-UVKM-5.08
