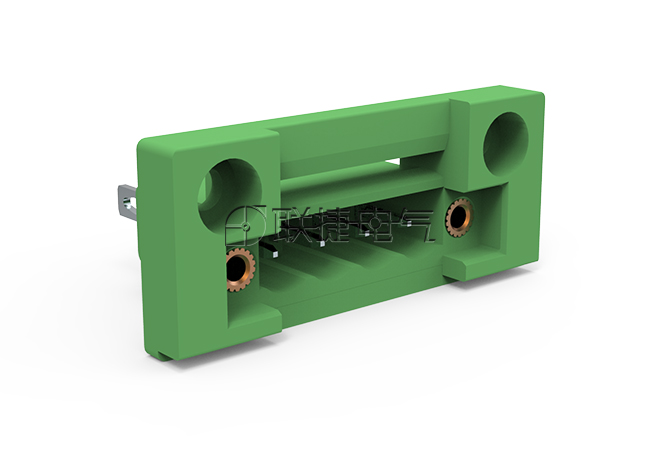

LZ5M-5.0/LZ5M-5.08_Pole -5.08/5.00_Pluggable terminal(Header)_PCB Pluggable terminal_terminal block-pcb terminal blocks-terminal block manufacturers

Product

Location Home > PCB Pluggable terminal > Pluggable terminal(Header) > Pole -5.08/5.00 > LZ5M-5.0/LZ5M-5.08

Assembly

LC1M-5.0/LC1M-5.08

LC2BM-5.0/LC2BM-5.08

LC2AM-5.0/LC2AM-5.08

LC3M-5.0/LC3M-5.08

Description

Property

Scene

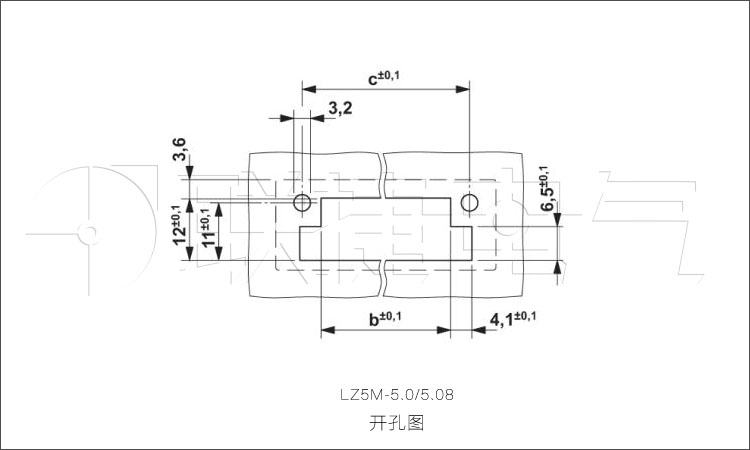

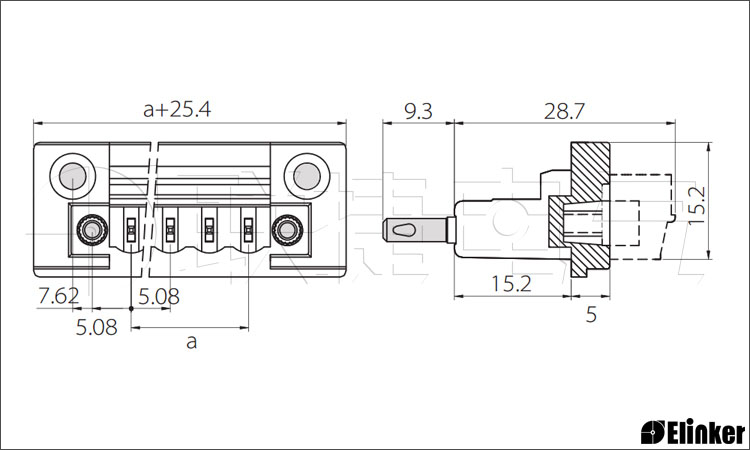

Drawings

Packing

优势

抗震连接；

安全，便捷，高效；

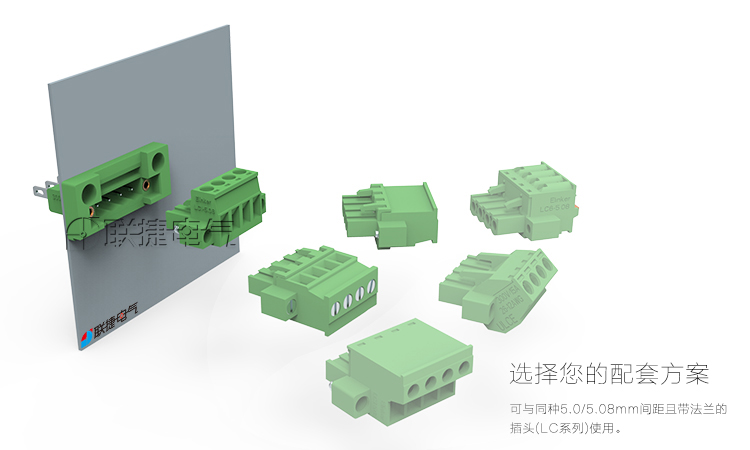

配套产品全面，多种插头可用；

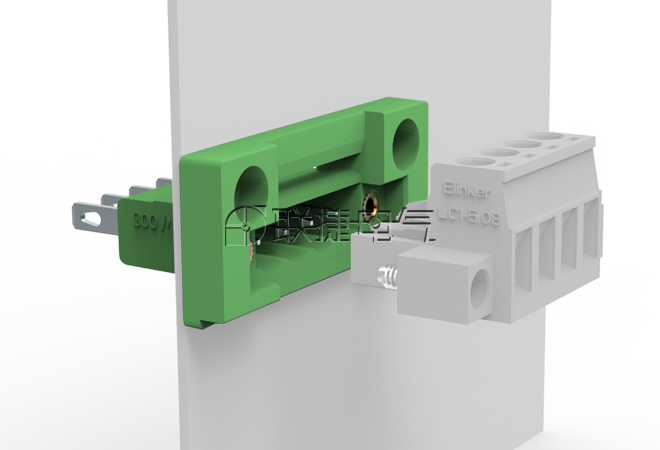

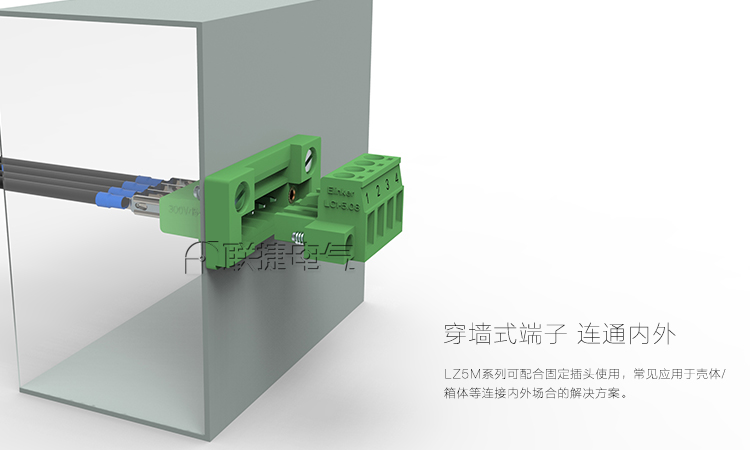

穿墙系列，针对控制箱，仪表壳体等效果显著；

Product Attribute

[Rated current(A)] 15A【UL】17.5A【IEC】

[Rated voltage(V)] 300V【UL】320V【IEC】

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 24-12

[Single/multi-core diameter(mm²):] 0.2-2.5/0.2-2.5

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320V【IEC】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5/0.2-2.5
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24

Product Attribute
[Rated current(A)]	15A【UL】17.5A【IEC】
[Rated voltage(V)]	300V【UL】320V【IEC】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5/0.2-2.5
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
