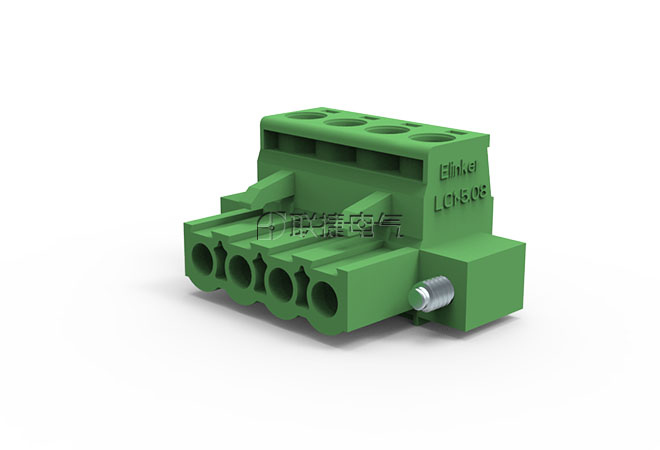

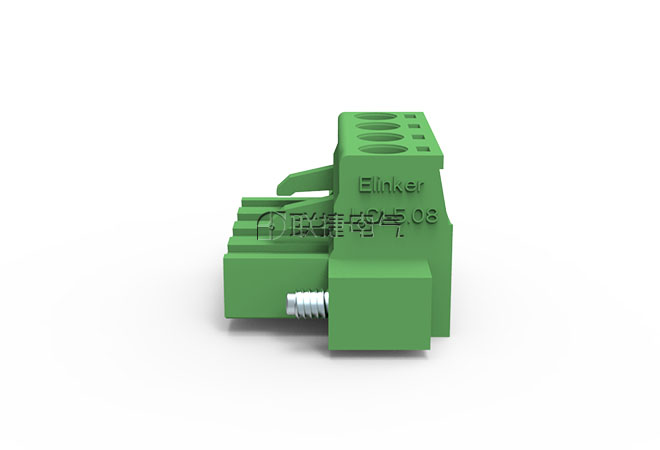

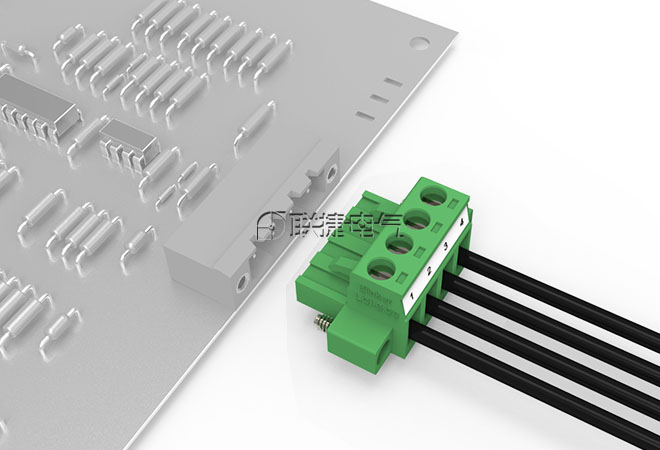

LC1M-5.0/LC1M-5.08



     优势

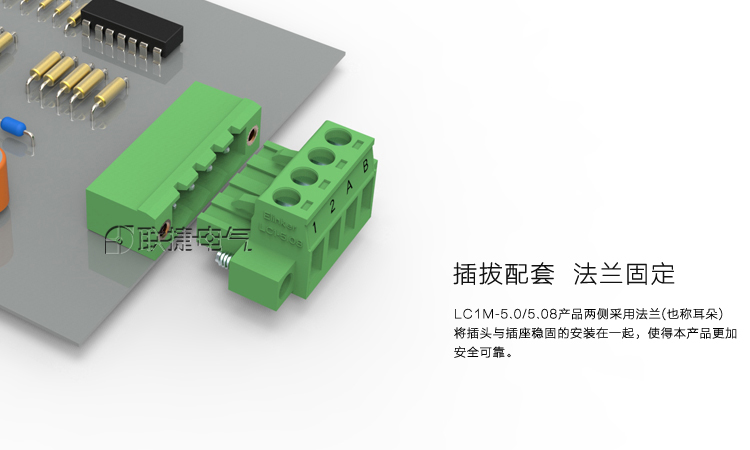

  法兰固定，安装牢固；

  结构高度低，便于在狭小空间安装；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

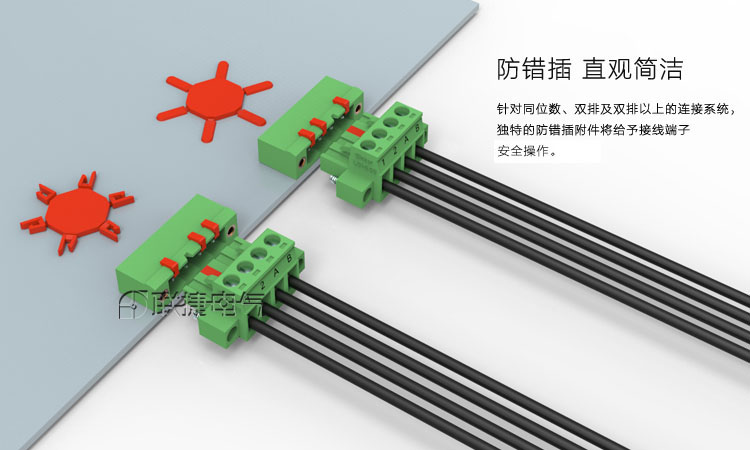

  插头插座防错插防错位保护，避免接线错误。





Product Attribute
[Rated current(A)]	17.5A【IEC】15A【UL】
[Temperature(℃):]	-40℃~120℃
[Rated voltage(V)]	320V【IEC】300V【UL】
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	V0
[Poles(P):]	2-4
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2.5/…-STF BLZP 5.00HC/180F SN 5ESDVM 2EDGKM-5.0 TJ5.0-With flange MC101-500 MSTB 2.5/…-STF-5.08 BLZP 5.08HC/180F SN 2ESDVM 2EDGKM-5.08 TJ5.08-With flange MC101-508
[Material]	PA66
