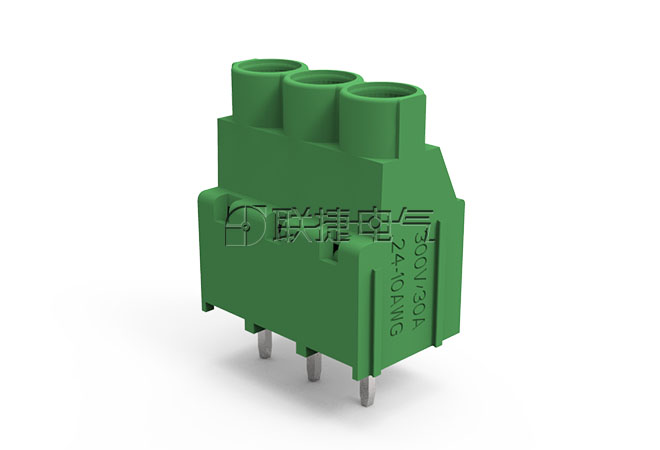

Location Home > PCB Solder Terminal > Pole 6.35 > LG635-6.35

Description

Property

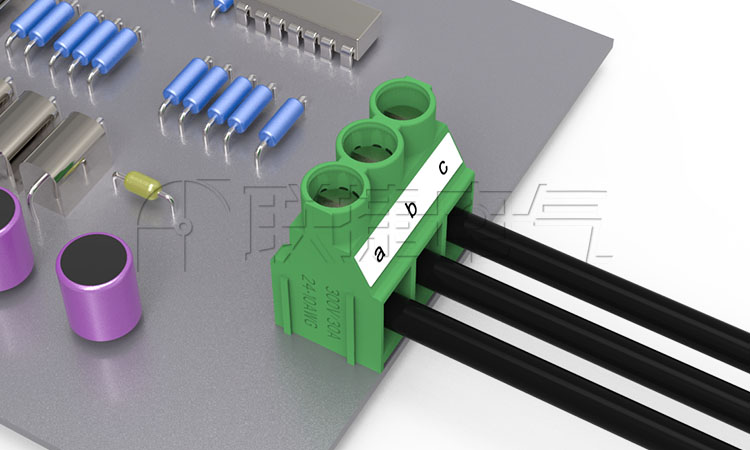

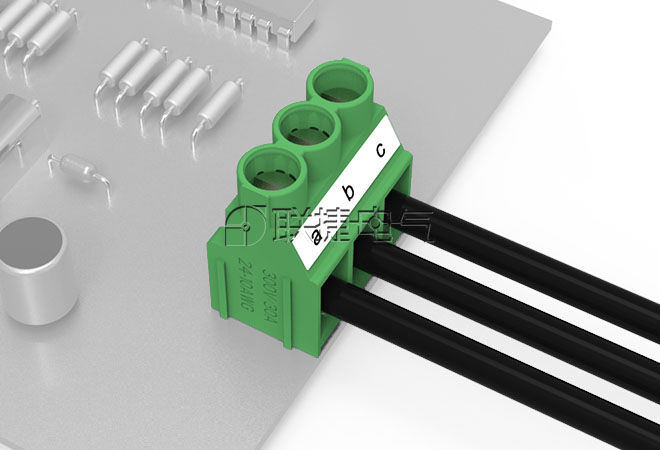

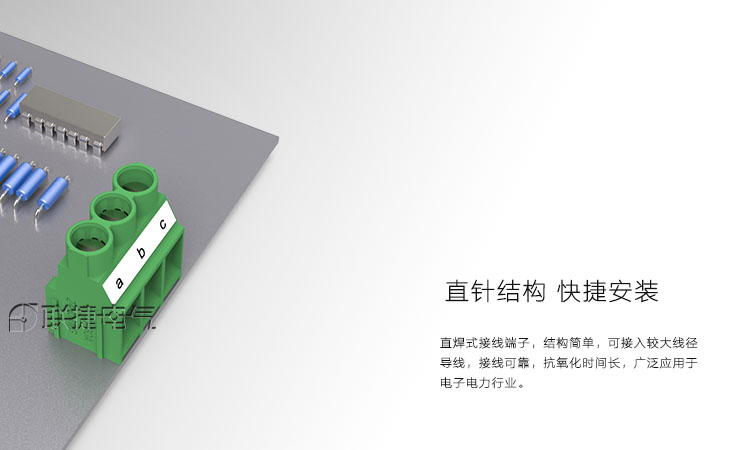

Scene

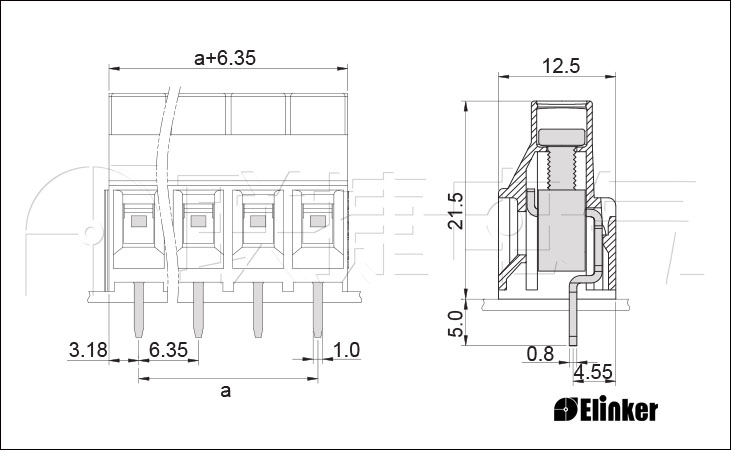

Drawings

Packing

优势

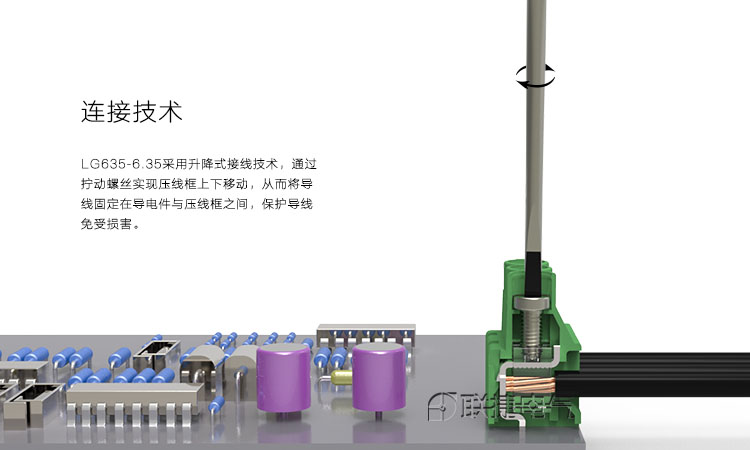

框式接线方式，保护导线不受损；

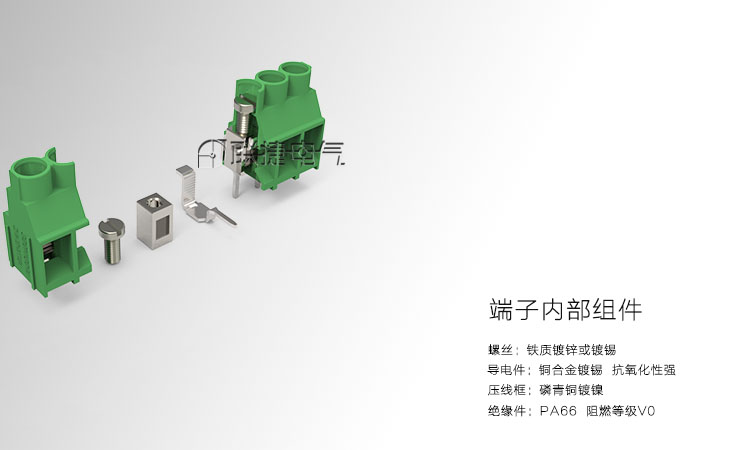

塑壳PA66，阻燃等级V0；

可接入横截面较大导线；

2位和12位产品任意组合，满足不同位数要求。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 300V

[Rated current(A):] 10A

[Wire Size(AWG):] 24-10

[Single/multi-core diameter(mm²):] 0.2-6

[Maximum locking torque(Nm):] 0.5-0.6

[Screw:] M3

[Strip length(mm):] 8

[Resistant voltage(kv):] 6

[Insulation Resistance:] PA/V0

[Poles(P):] 2-12P

[Terminal Block:] PCB Solder Terminal
