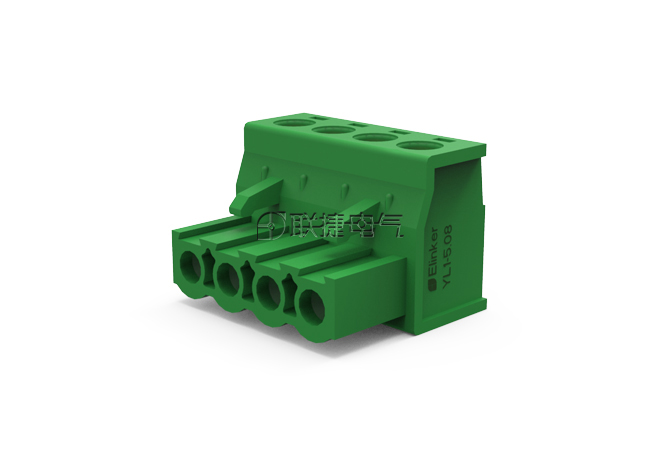

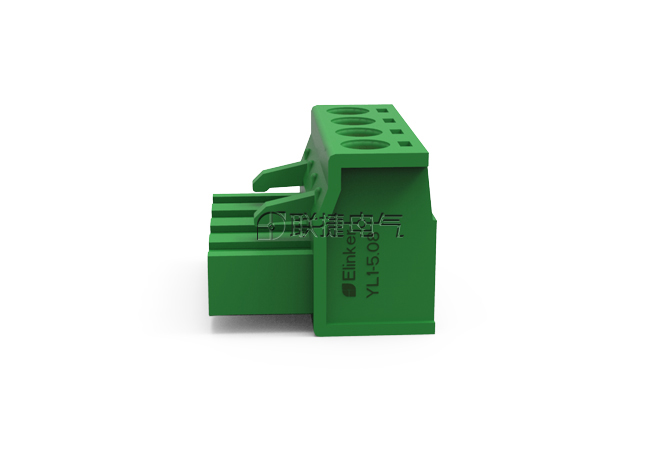

YL1-5.08



       优势



  间距小，节省空间；

  结构高度低；

  接线容量大，可以连接截面积为2.5mm²的柔性导线；

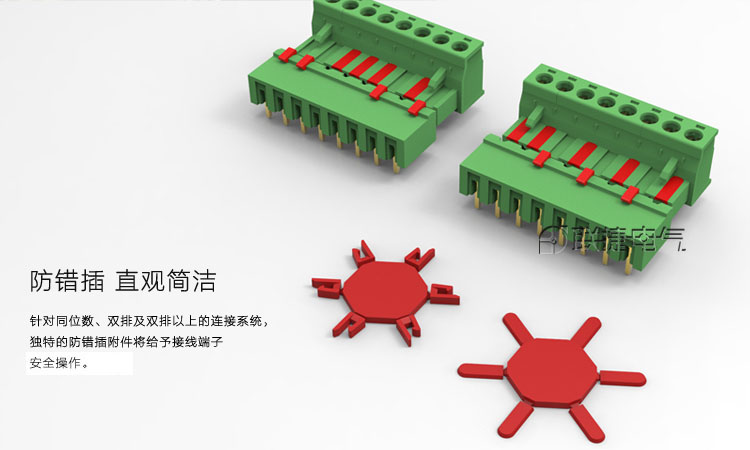

  插头插座防错插防错位保护；



Product Attribute
[Maximum locking torque]	0.5-0.6
[Rated voltage(V)]	320V

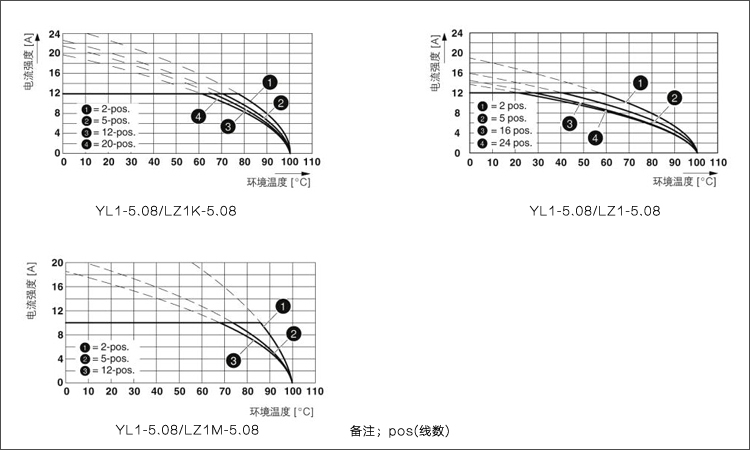

[Rated current(A):]	17.5A
[Rated current(mm²):]	2.5
[Wire Size(AWG):]	24-12
[Single/multi-core diameter(mm²):]	0.2-2.5
[Maximum locking torque(Nm):]	0.5-0.6
[Screw:]	M3
[Strip length(mm):]	7
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Terminal Block:]	pluggable terminal/PCB terminal block
