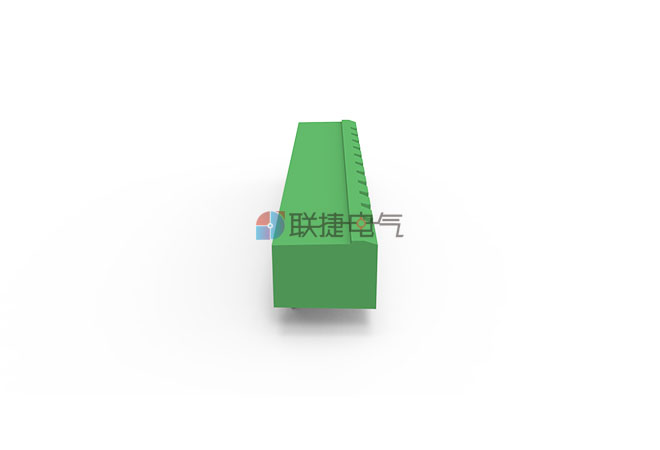

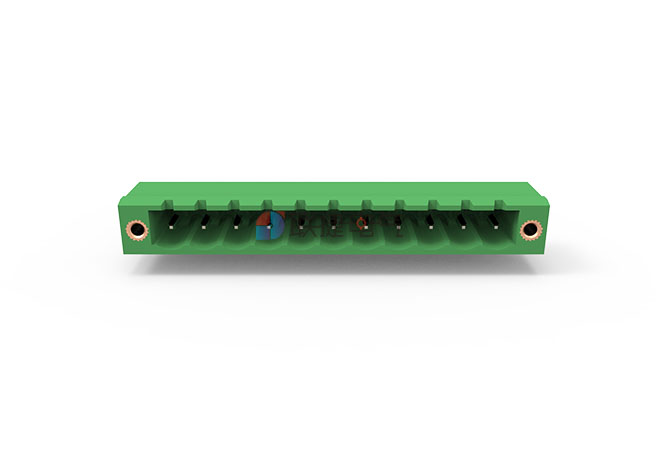

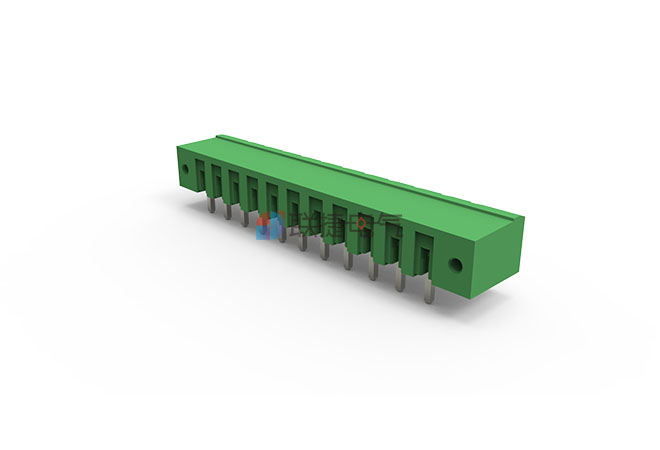

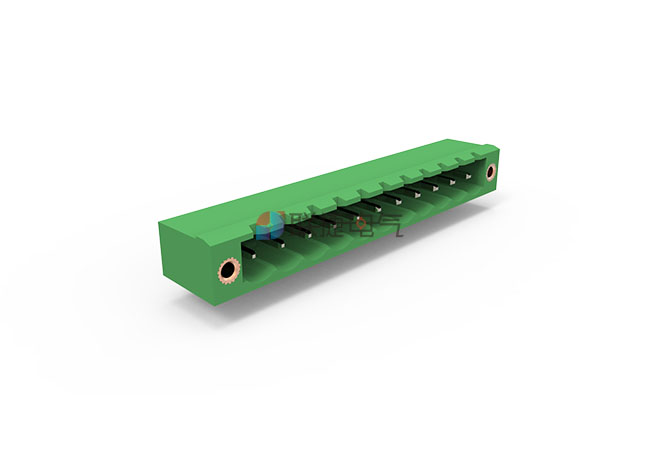

LZ1RM-5.08-11P-140

插拔式接线端子波峰焊示意图   PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.



优势

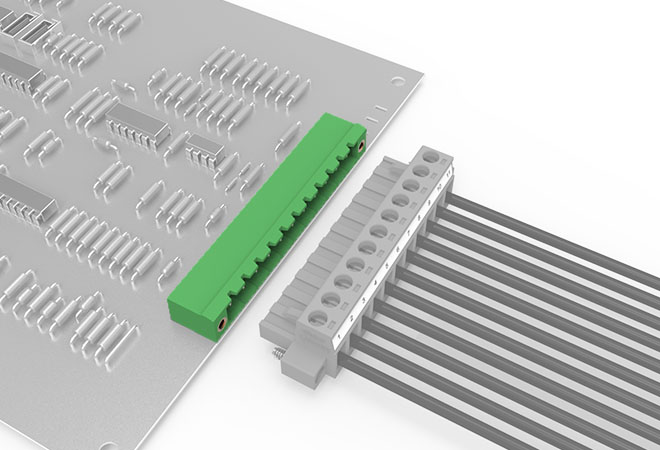

  插头插座紧密结合，节省空间；

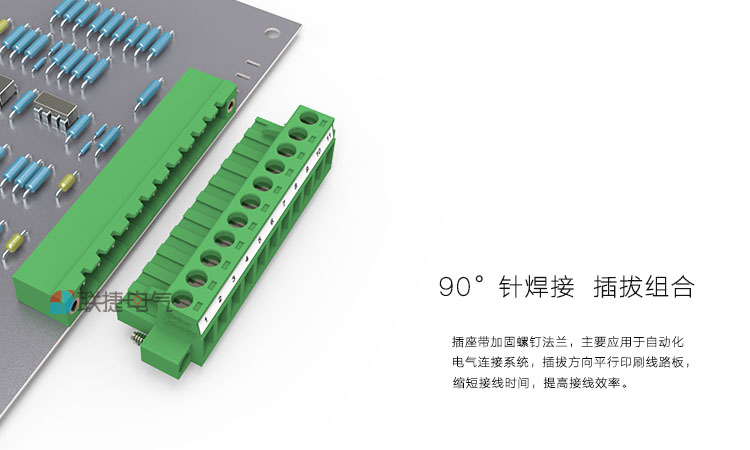

  焊针呈90°，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

  带法兰，连接安全牢固。



Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】250V【UL】300V
[Rated current(A):]	【IEC】12A【UL】15A
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal/PCB terminal block
[The same model]	MSTB 2,5/11-GF-5,08 MSTB2.5/11-GF-5.08 1776595 SL 5.08HC/11/90F 3.2SN OR BX SL5.08HC/11/90F 1148910000 SL 5.08HC/11/90F 3.2SN BK BX 1150190000 2EHDRM-11P 2EHDRM11P 2EDGRM-5.08-11P-14 2EDGRM-5.08-11P OQ-5.08-11P-90D W/F OQ1155510000G OQ-F/90D-5.08-11P 11 POS TERMI-BLOK HDR RT ANGLE 11POSTERMI-BLOKHDRRTANGLE 1-796866-1 STLZ950/11F-5.08-H-绿色 50950116021D PTB750S-04-2-11-3 ME050-50811 F85-8-5.08-11P F858E1100051 PCB排针 8213 S / 11 WF OB 8213S/11WFOB 25.358.4153.0
