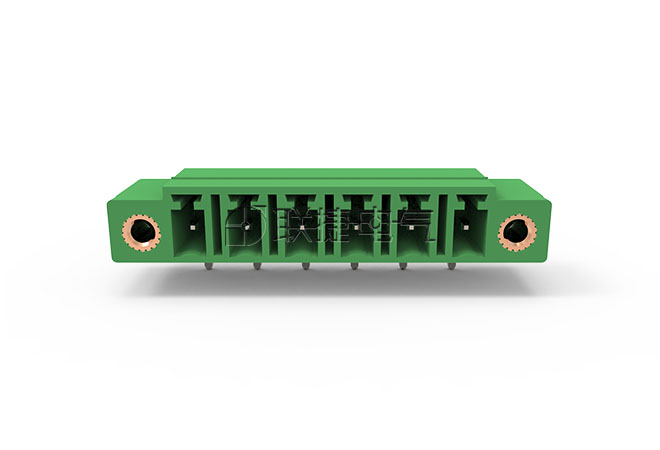

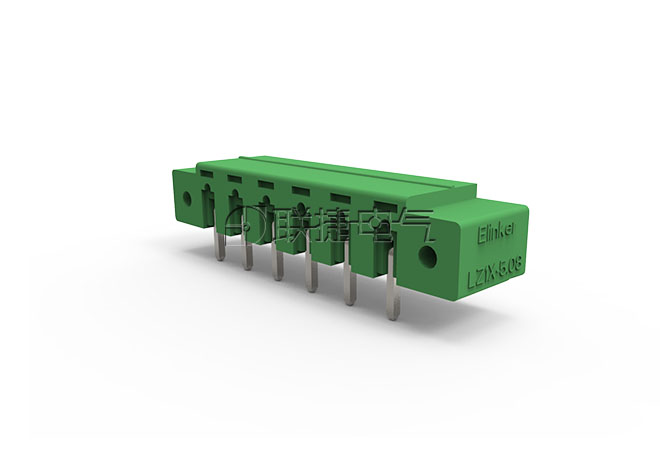

LZ1XRM-5.0/LZ1XRM-5.08



优势





  插头插座紧密结合，节省空间；

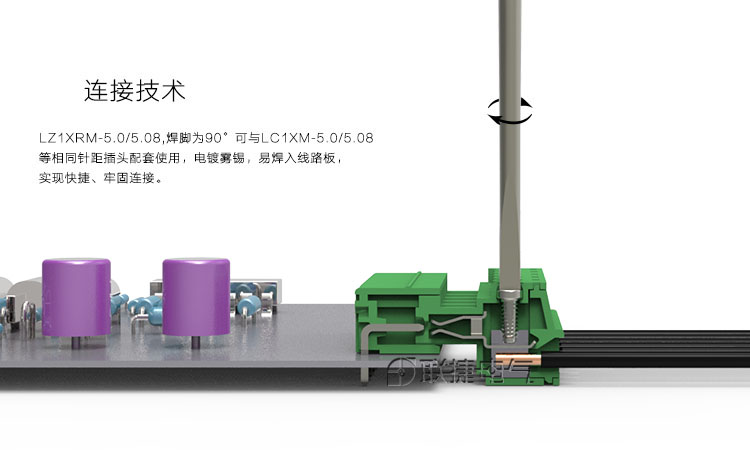

  焊针呈90°，电镀雾锡，可焊接于线路板；

  可定制，2-24P满足不同接线环境的需要；

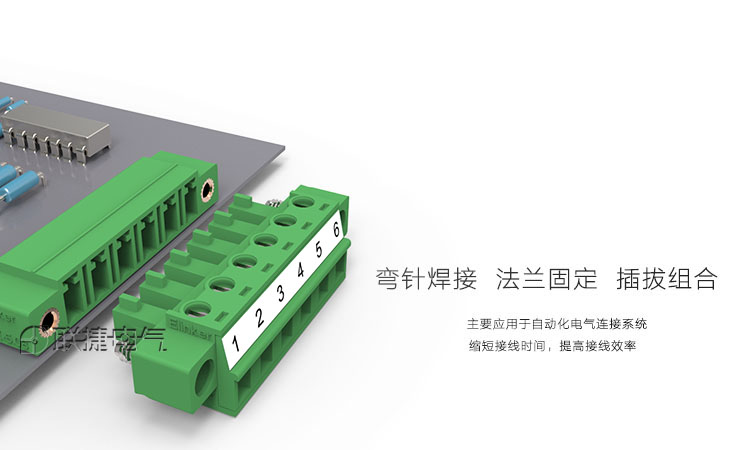

  自带防错插错位插件，法兰固定，保障电气设备准确安全连接。



Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】160V【UL】300V

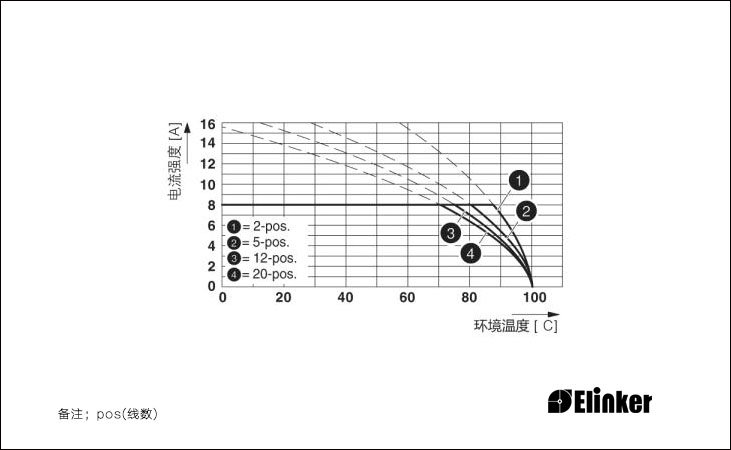

[Rated current(A):]	【IEC】8A【UL】8A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	【IEC】160V【UL】300V
[Rated current(A):]	【IEC】8A【UL】8A
[Resistant voltage(kv):]	2.5
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	pluggable terminal
