Location Home > PCB Solder Terminal > Pole 5.08/5.00 > LGV3B-5.0/LGV3B-5.08

Description

Property

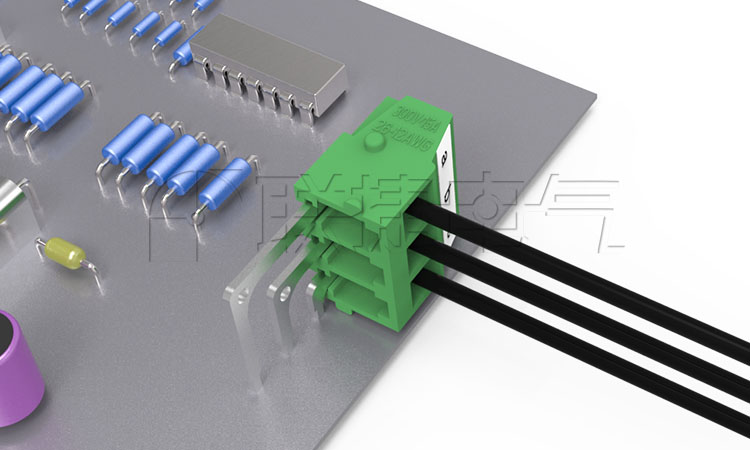

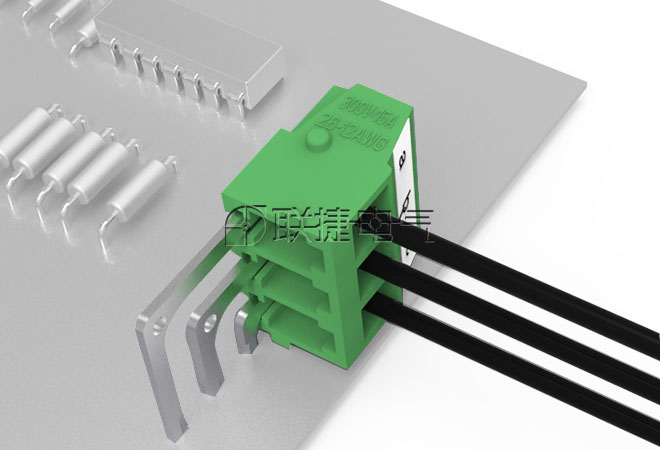

Scene

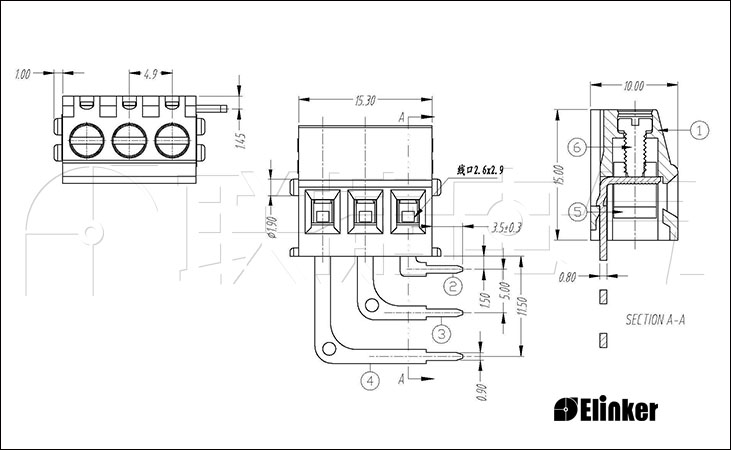

Drawings

Packing

优势

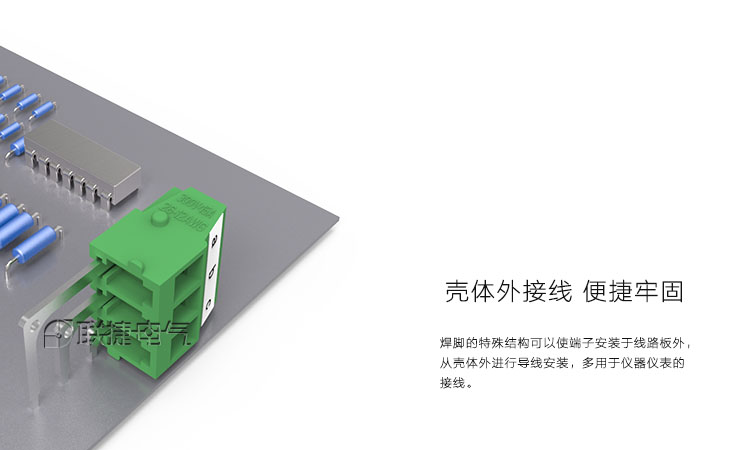

焊脚的特殊结构可于壳体外进行接线，使用环境灵活；

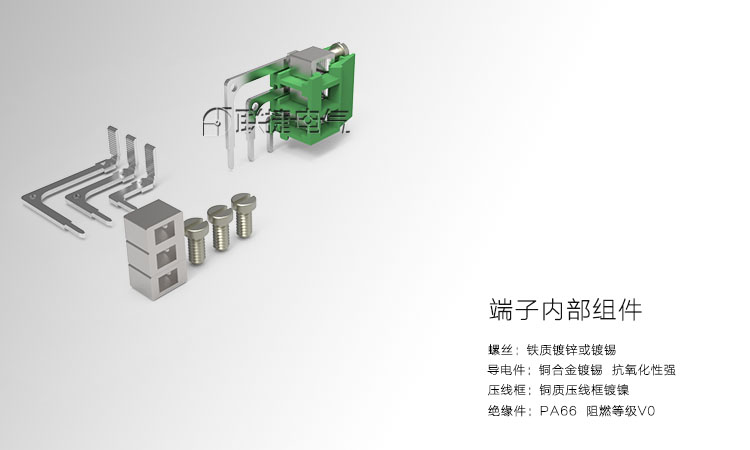

塑壳PA66，阻燃等级V0；

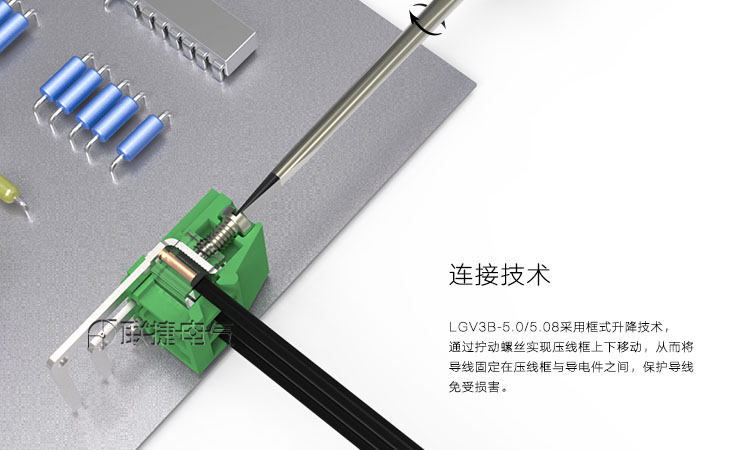

升降式压线方式，保护导线免受损坏；

采用镀锡焊针，带散热通道，焊针端部收缩变细，易于安装。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Insulation resistance] 1000MΩ

[Rated voltage(V)] 300V

[Rated current(A):] 15A

[Wire Size(AWG):] 26-12

[Maximum locking torque(Nm):] 0.8

[Resistant voltage(kv):] 3

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Solder Terminal

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Insulation resistance]	1000MΩ
[Rated voltage(V)]	300V
[Rated current(A):]	15A
[Wire Size(AWG):]	26-12
[Maximum locking torque(Nm):]	0.8
[Resistant voltage(kv):]	3
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-24
[Terminal Block:]	PCB Solder Terminal
