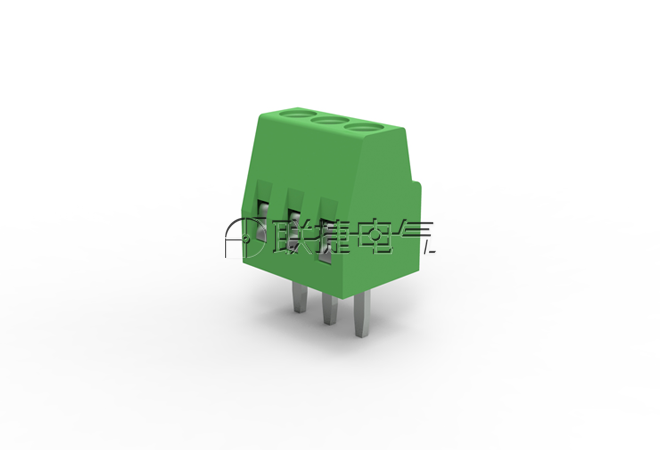

LG254-2.54

LG254-2.54

  • Pitch
  • Click  2828
  • Brand  Elinker
  • Download No files

Description

Property

Scene

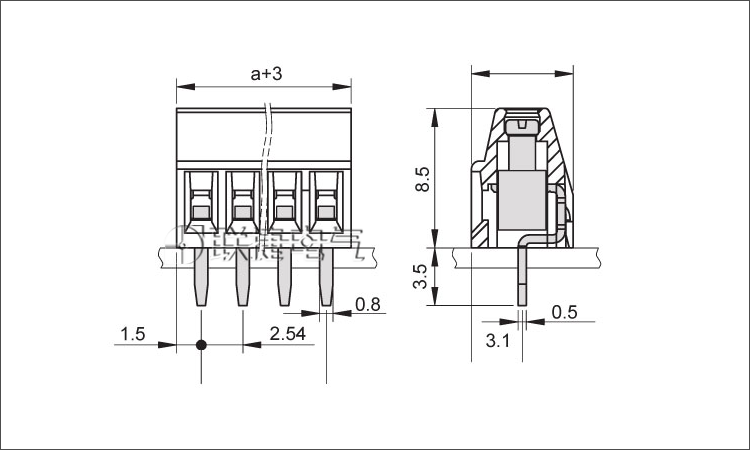

Drawings

Packing





  优势

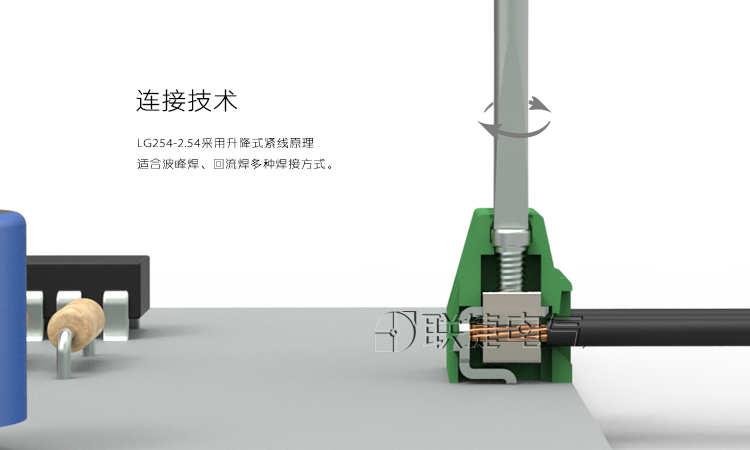

  直焊式接线端子利用滑块式原理,焊脚与夹线体分成两部分,确保拧紧螺钉时的距离不会传至焊点而损伤焊点。

  绝缘外壳具有优良的耐磨性,机械强度较高。

 导电件采用高精度磷青铜;用高精度高速冲压成型;可选金,银,锡,镍等电镀

  压线框常见的材质有铜材,铁包件和锌合金。我公司为了品质稳定采铜质压线框镀镍处理。







Product Attribute
[Rated voltage(V)] 130
[Rated current(A):] 8
[Rated current(mm²):] 1.0
[Wire Size(AWG):] 26-18
[Single/multi-core diameter(mm²):] 1.0
[Maximum locking torque(Nm):] 0.1
[Screw:] 1.6
[Strip length(mm):] 4
[Resistant voltage(kv):] 2
[Insulation Resistance:] PV/VO
[Poles(P):] 2-24

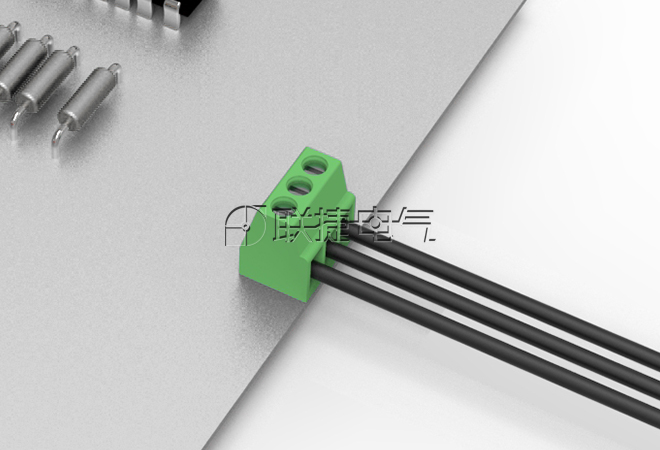

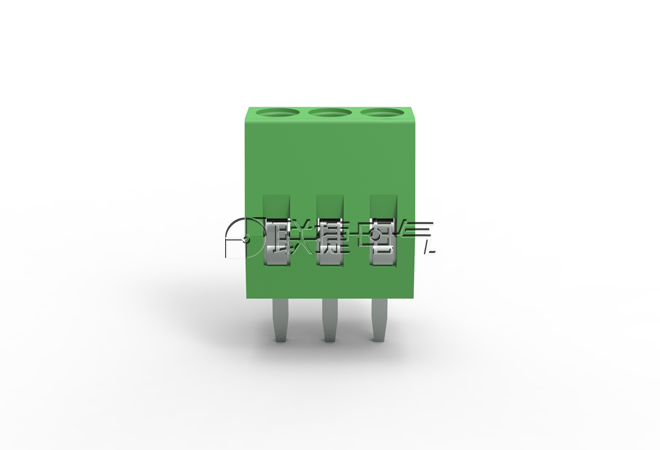

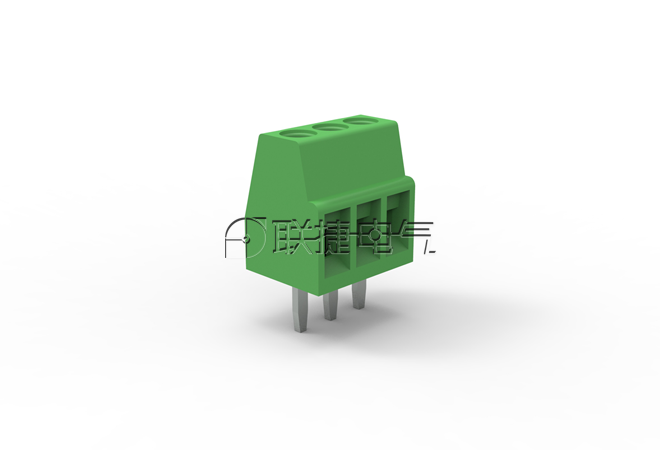

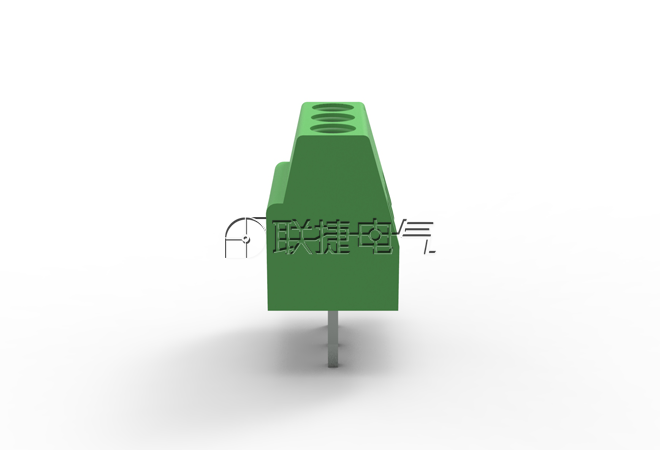

 LG254-2.54 直焊式接线端子



LG254-2.54 直焊式接线端子



Product Attribute
[Rated voltage(V)] 130
[Rated current(A):] 8
[Rated current(mm²):] 1.0
[Wire Size(AWG):] 26-18
[Single/multi-core diameter(mm²):] 1.0
[Maximum locking torque(Nm):] 0.1
[Screw:] 1.6
[Strip length(mm):] 4
[Resistant voltage(kv):] 2
[Insulation Resistance:] PV/VO
[Poles(P):] 2-24
