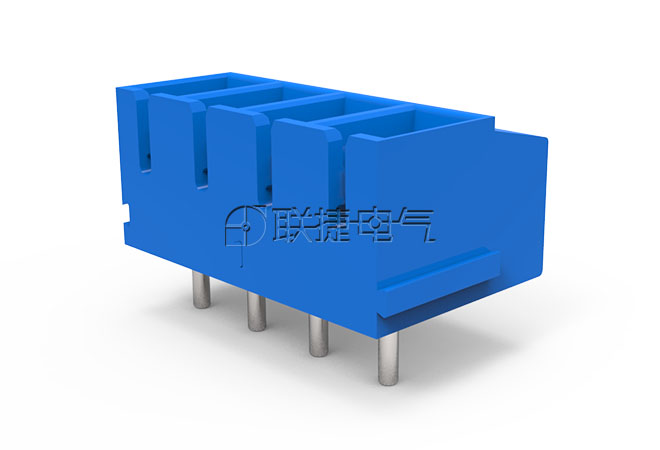

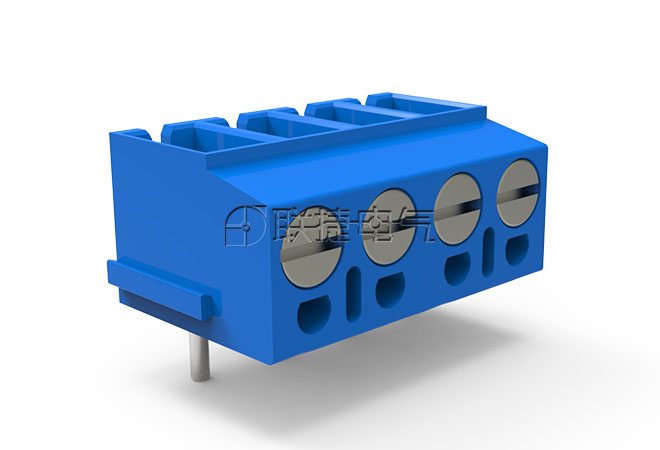

Location Home > PCB Solder Terminal > Pole 5.08/5.00 > LG300R-5.0

Description

Property

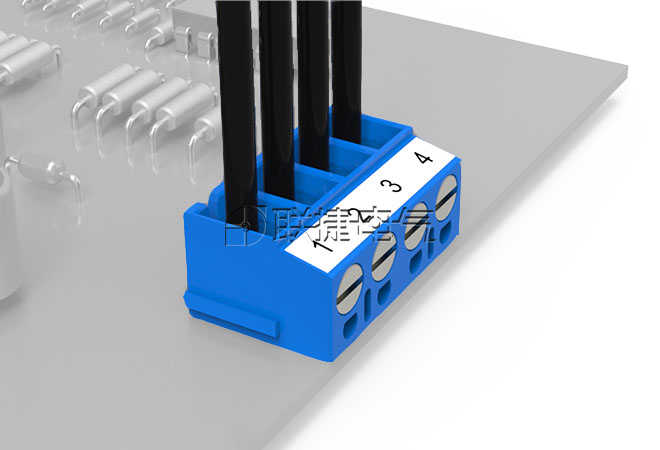

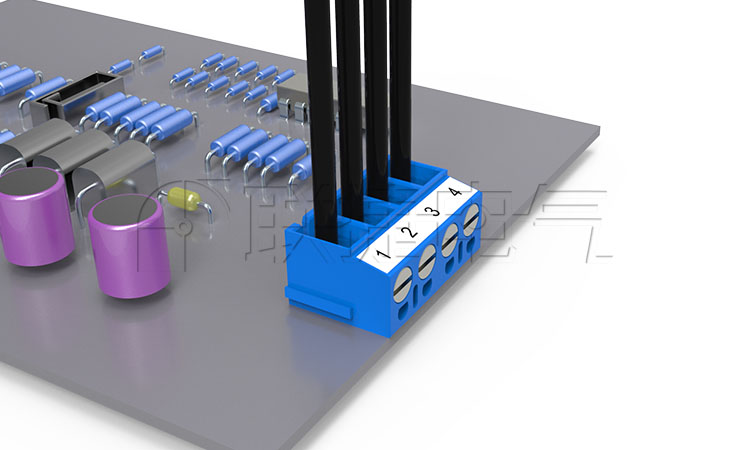

Scene

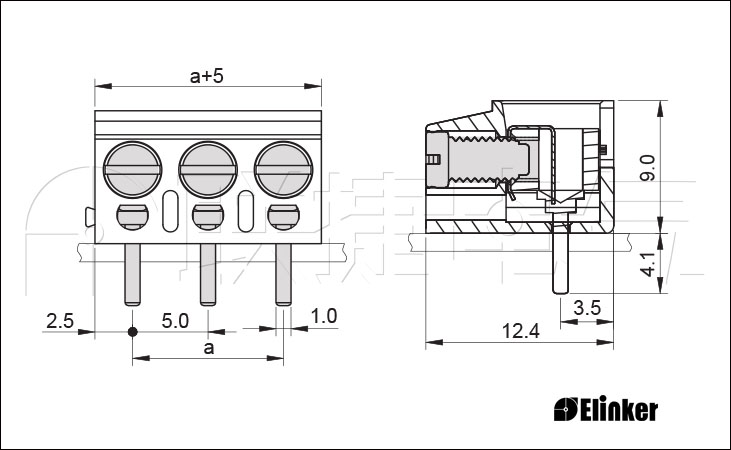

Drawings

Packing

优势

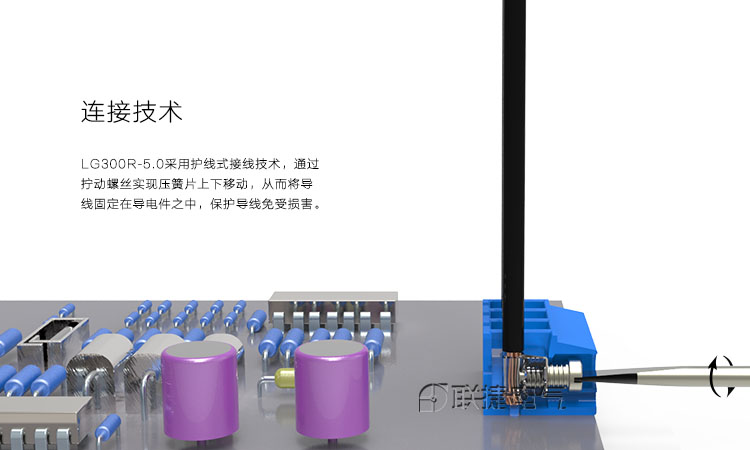

护线式接线方式，保护导线不受损；

塑壳PA66，阻燃等级V0；

大电气间隙设计和相应隔板可满足用户高电压接入要求；

可接入横截面较大导线，2位和3位产品可以任意拼接，满足不同位数要求。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 300V

[Rated current(A):] 10A

[Wire Size(AWG):] 22-14

[Strip length(mm):] 6

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-3P

[Terminal Block:] PCB Solder Terminal

Product Attribute
[Temperature(℃):]	-40℃~105℃
[Rated voltage(V)]	300V
[Rated current(A):]	10A
[Wire Size(AWG):]	22-14
[Strip length(mm):]	6
[Resistant voltage(kv):]	4
[Insulation Resistance:]	PA/V0
[Poles(P):]	2-3P
[Terminal Block:]	PCB Solder Terminal
