Location Home > PCB Solder Terminal > Pole 5.08/5.00 > LG500BZL-5.0/LG500BZL-5.08

Description

Property

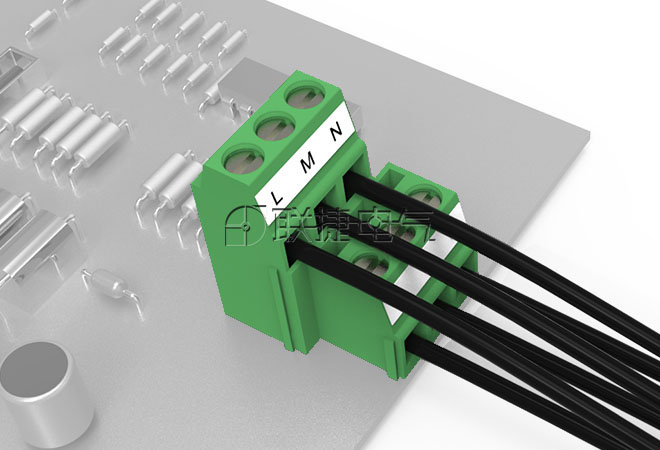

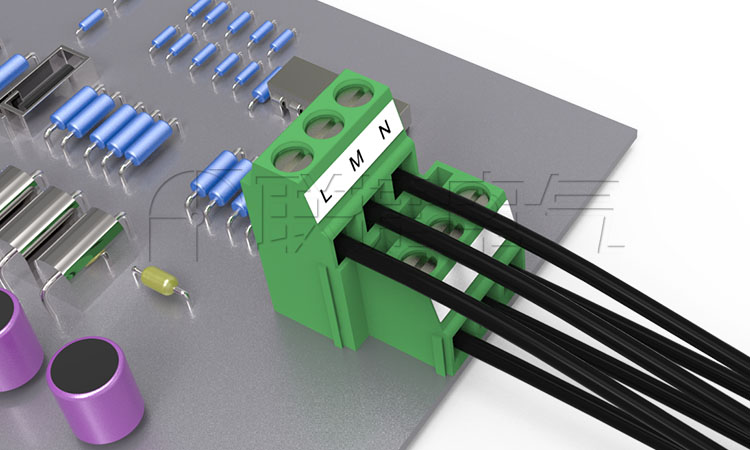

Scene

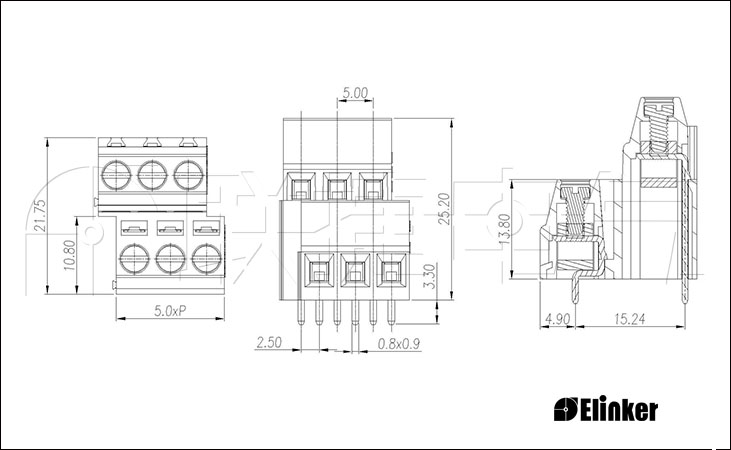

Drawings

Packing

优势

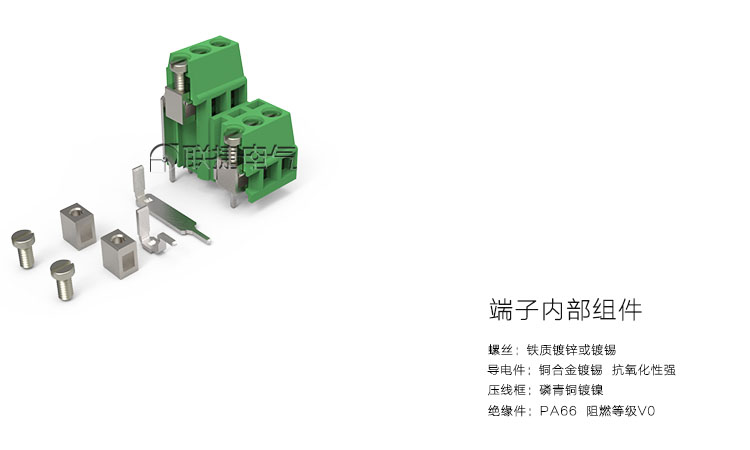

升降式压线方式，快捷牢固；

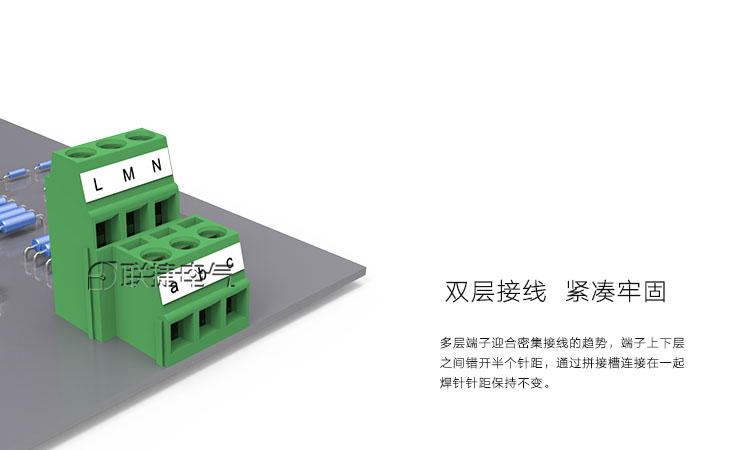

上下层错开半个针距方便接线；

双层设计，适用于狭小空间接线；

采用镀锡焊针，带散热通道，焊针端部收缩变细，易于安装。

Product Attribute

[Rated voltage(V)] 300V

[Rated current(A):] 10A

[Rated current(mm²):] 2.5

[Wire Size(AWG):] 26-14

[Single/multi-core diameter(mm²):] 1.5

[Maximum locking torque(Nm):] 0.44

[Screw:] M2.5

[Strip length(mm):] 6-7

[Resistant voltage(kv):] 2.5

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] PCB Solder Terminal
