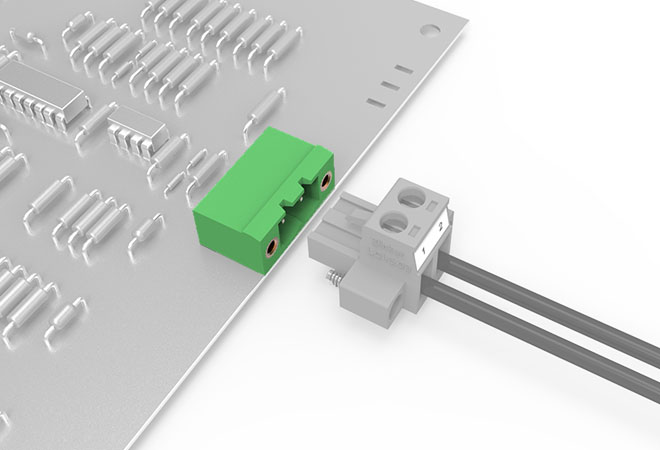

Scene

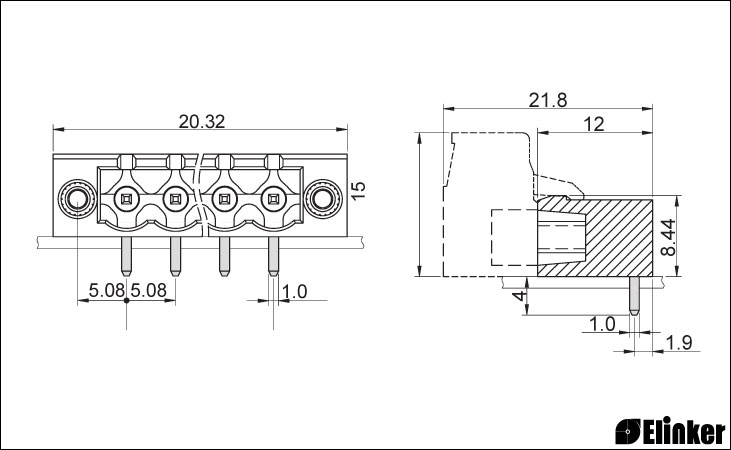

Drawings

Packing

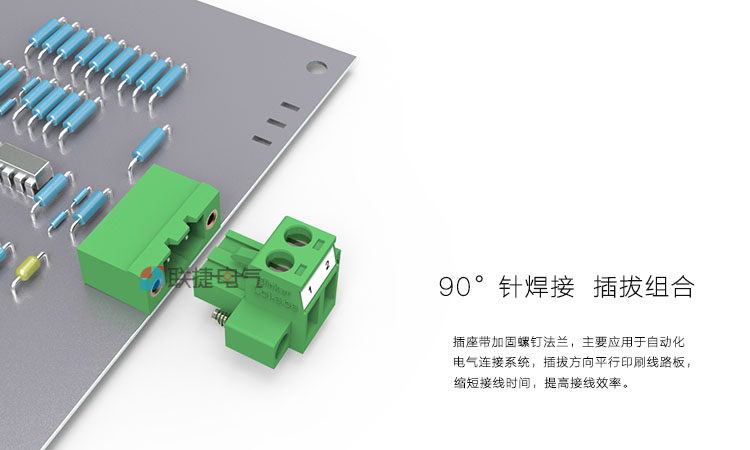

插拔式接线端子波峰焊示意图

PCB产品传统处理方式,PA材料塑件能耐受波峰焊接的高温.

优势

插头插座紧密结合，节省空间；

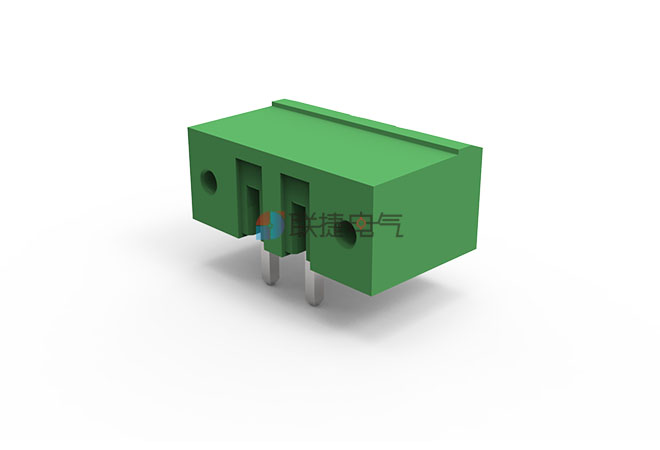

焊针呈90°，电镀雾锡，可焊接于线路板；

可定制，2-24P满足不同接线环境的需要；

带法兰，连接安全牢固。

Product Attribute

[Temperature(℃):] -40℃~105℃

[Rated voltage(V)] 【IEC】250V【UL】300V

[Rated current(A):] 【IEC】12A【UL】15A

[Resistant voltage(kv):] 4

[Insulation Resistance:] PA/V0

[Poles(P):] 2-24

[Terminal Block:] pluggable terminal/PCB terminal block

[The same model] MSTB 2,5/ 2-GF-5,08 MSTB2.5/2-GF-5.08 1776508 SL 5.08HC/02/90F 3.2SN OR BX SL5.08HC/02/90F 1148610000 SL 5.08HC/02/90F 3.2SN BK BX 1150090000 2EHDRM-02P 2EHDRM-2P 2EDGRM-5.08-02P-14 2EDGRM-5.08-2P OQ-5.08-2P-90D W/F OQ0255510000G OQ-F/90D-5.08-02P 2 POS TERMI-BLOK HDR RT ANGLE 2POSTERMI-BLOKHDRRTANGLE 796866-2 STLZ950/2F-5.08-H-绿色 50950026021F PTB750S-04-2-02-3 ME050-50802 F85-8-5.08-02P F858E0200051 PCB排针 8213 S / 2 WF OB 8213S/2WFOB 25.358.3253.0
